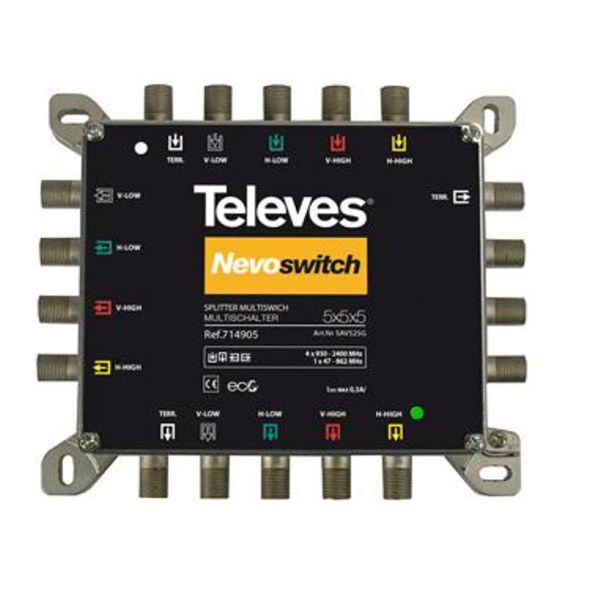

Splitter Nevoswitch 5x5x5 4/4dB
Repartidor Nevoswitch 5x5x5 4/4dB. Ref. 714905 de Televes
Este dispositivo complementa a la gama de multiswitch nevoswitch, de forma que se consigue ampliar la instalaci**n a un n**mero mayor de usuarios optimizando la se**al que le llegar**a a cada uno.
Destaca por:
?
Chasis de?zamak?que los hace inmunes a las radiaciones.
Regulaci?n independiente?del nivel de salida a cada usuario?(salvo gama QUAD Compatible).
Sistema escalable para topolog?as en estrella y cascada.
Modo ECO?de bajo consumo.?Dispone de sistema ECO por el que el consumo de la?instalaci?n se reduce a medida que disminuye el n?mero?de usuarios conectados.
?
?Caracter?sticas:
?
Amplificaci?n independiente?de l?neas.
Configurables.
Reducido?tama?o y dise?o?compacto.
M?ltiples opciones?de alimentaci?n?(Jack, l?nea VL, entrada o salida terrestre y conectores usuario)
Regulaci?n independiente?del nivel en cada salida
?
