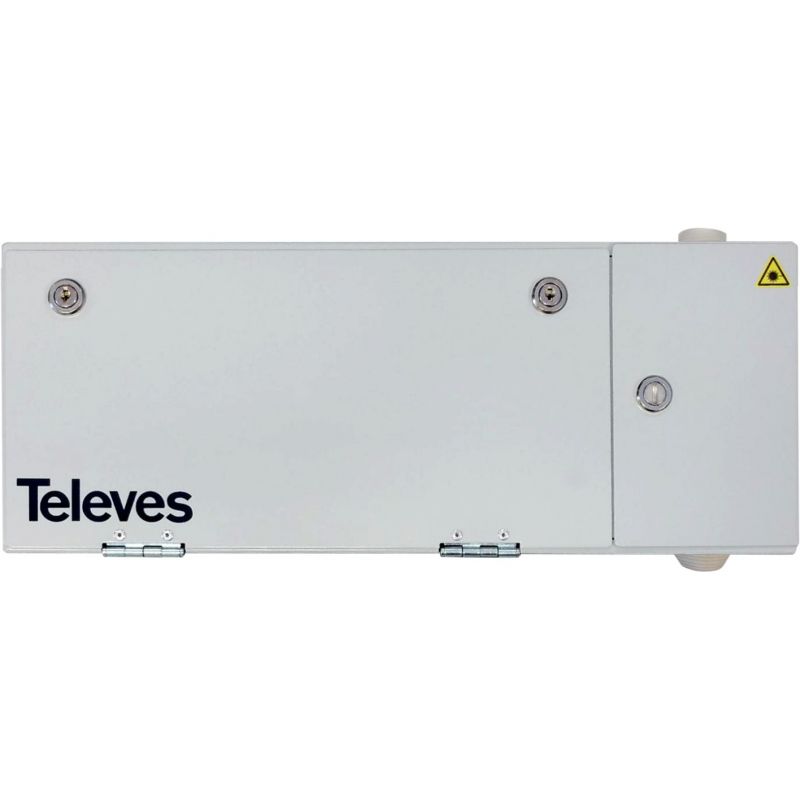

Stackable Main Register for F.O. 48 “SC/APC” Connectors Televes
KSh87,424.00
Designed to act as a distribution point for fiber optic hoses. It is usual to use it in FTTH or FTTR projects, facilitating the interconnection between the own network and the operator’s network (typical installation in the RITI). It allows to install several records jointly, maintaining the possibility of interconnection between them. Up to 48 female-female adapters. Televes 233003
Designed to act as a distribution point for fiber optic hoses. It is usual to use it in FTTH or FTTR projects, facilitating the interconnection between the own network and the operator’s network (typical installation in the RITI). It allows to install several records jointly, maintaining the possibility of interconnection between them. Its vertically stackable design and with direct intercommunication between the different registers, offers flexibility to extend the services based on the needs of each type of installation.
Stands out for
Manufactured in steel and lacquered
It is divided into independent compartments with door and lock, separated by a panel with capacity up to 48 SC/APC adapters
Facility to expand services: vertically stackable record with other identical records, thus forming a record of greater capacity
Great work comfort, thanks to the trays installed on the left door that allow to work the fibers on a horizontal surface
Incorporates specific anchors for the installation of FOR distributors inside
Incorporates specific anchors for the installation of distributors (PLC) of FO inside
Manufacturing in Europe
Features
Gray color (RAL 7035)
Folding tray holder (door), which allows to work with fiber trays horizontally
It incorporates 2 independent and folding F.O trays (book format), with capacity to stow up to 24 mergers each
It incorporates 2 metallic anchors for the fastening of the central elements of resistance, provided in the hoses of F.O.
Cable grommet protective against dust, which allows to lodge several hoses for the access of F.O at the same time (capacity of walk up to 83x31mm)
It has 2 access gums, with a diameter of 50mm each, which allow to interconnect the registers or access the operators
