Supplement Mast Window

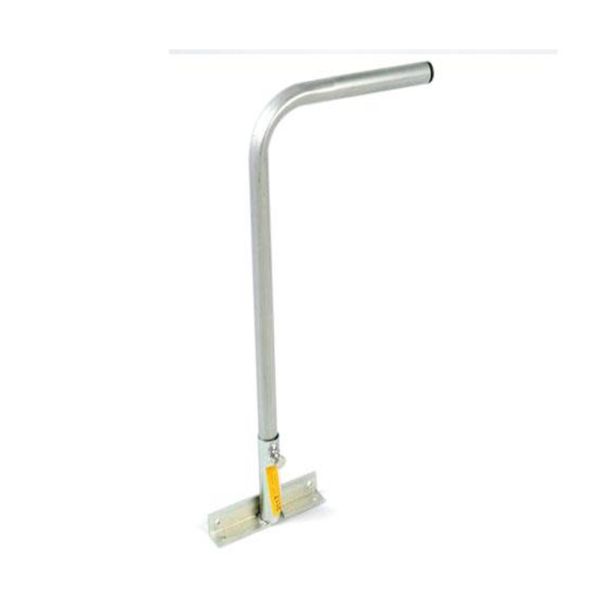

Televes Balcony or Window Antenna Support
This**Supplement is ideal for homes where the antenna needs to be placed on the facade of a window**. Designed for installation on balconies or windows, it is made of**galvanized iron**, providing durability and resistance to corrosion.
Includes**two pre-drilled holes in an L-shape**for**easy installation in corners**. Can**be screwed to either the front or side wall**, adding flexibility in choosing the location.
The**union of the base and the support**allows it to rotate and be fixed with a screw, facilitating installation on the wall or floor, remaining**completely vertical**.
This support is**compatible with small DTT antennas and satellite dishes up to 60cm.
Technical Specifications for Balcony or Window Antenna Mount
Support model ? Support arm
Support material ? Steel
Mast diameter mm 30
Distance cm 58.6
Physical Data
Net weight:?1,640?g
Gross weight:?1,640?g
Width:?600?mm
Height:?300?mm
Depth:?30?mm
Main product weight?:?740g
