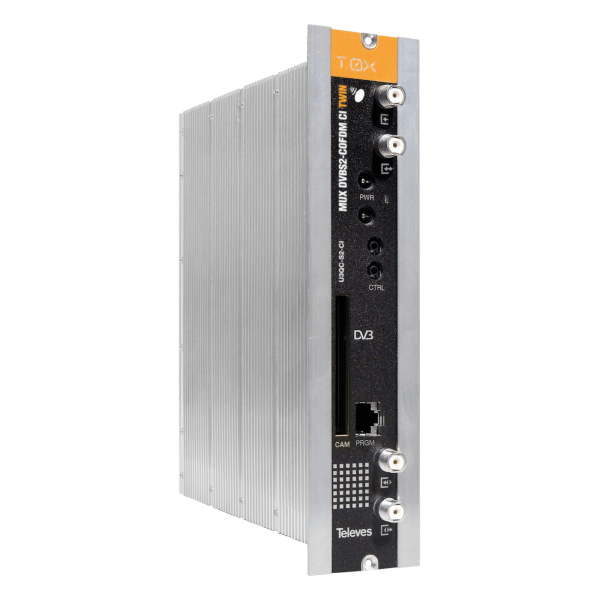

T.0X Transmodulator with remultiplexing DVBT, DVBS / S2 COFDM CI TWIN by Televes
Transmodulator 564301 with remultiplexing COFDM
This transmodulator receives the signal of 3 transponders, of which at least two must be of the same polarity and band, and can generate two muxes with content from any input transponder.
If in your case you use a CAM for the decryption of services, it can be located just off of one of the demodulators or position it in the transport multiplex. This transmodulator also has a function that prevents DCY INSURANCE CAM overflow in case of appearance of new PID.
Transmodulator with remultiplexing by Televes DVBT / S / S2 COFDM.
What are the main features of the Televes 564301 transmodulator?
It allows the installer, in addition to configuring the services to the exit, to eliminate a concrete PID of some of the services.
Configurable and remotely monitorable through CDC.
They provide useful rate information for each of the input services, showing the occupation of the output channel.
TWIN output signal fully configurable (2 muxes).
DiSEqC.
Configurable CAM position.
LCN and combined SID issue on both muxes that prevents TV retune when updating the channel grid.
What are the technical specifications of Televes 564301 transmodulator?
References 564201 564301
SAT INPUT SAT Input frequency range MHz 950…2150
Frequency steps 1
Input level dB?V 42 – 82
Loop-through losses dB ? 1,5
LNB powering Vdc 13V/17V/ OFF – 22KHz (ON/OFF)
Input return losses (typ.) dB > 10?
Input impedance ? 75
DVB-S Symbol rate (Modulation) Mbaud 2 – 42,5 (QPSK)
FEC inner code Viterbi (1/2, 2/3, 3/4, 5/6, 7/8)
FEC outer code RS (188/204)
Roll-Off factor % 35
DVB-S2 Symbol rate (Modulation) Mbaud 10 – 30 (QPSK, 8PSK)
FEC inner code LDPC (1/2, 1/3, 1/4, 2/3, 2/5, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10)
FEC outer code BCH (Bose-Chaudhuri-Hocquenghem)
Roll-Off factor % 20, 25, 35
DTT OUTPUT COFDM Modulation (Constellation) QPSK, 16QAM, 64QAM
Guard interval ?s 1/4, 1/8, 1/16, 1/32
Scrambling DVB EN 300744
Interleaving DVB EN 300744
Convolutional code (FEC) Viterbi (1/2, 2/3, 3/4, 5/6, 7/8)
PCR Correction S?
Services deleting S?
Network_ID S?
Original Network_ID S?
Cell_ID S?
TS_ID S?
S_ID S?
LCN S?
Spectral inversion Normal, Inverted
Channel bandwidth Mhz 7,8
RF Output frequency 45 – 862
Frequency steps KHz 166 – 125 (user selectable)
Output level (max. typ.) dB?V > 80 ? 5?
Output level regulation margin dB >15
Output loop-through losses ? < 1,5
Output return losses (typ.) > 12?
Output impedance ? 75
GENERAL Powering voltage Vdc 24
Consumption mA 520 (0 CAM – 0 LNB)
620 (1 CAM – 0 LNB)
870 (0 CAM – 1 LNB)
1120 (1 CAM – 2 LNBs) 530 (0 CAM – 0 LNB)
630 (1 CAM – 0 LNB)
880 (0 CAM – 1 LNB)
1130 (1 CAM – 2 LNBs)
Protection index IP 20
