T.0X Trasmodulador DVB / T2 – QAM CI TWIN MUX 2C- 2C

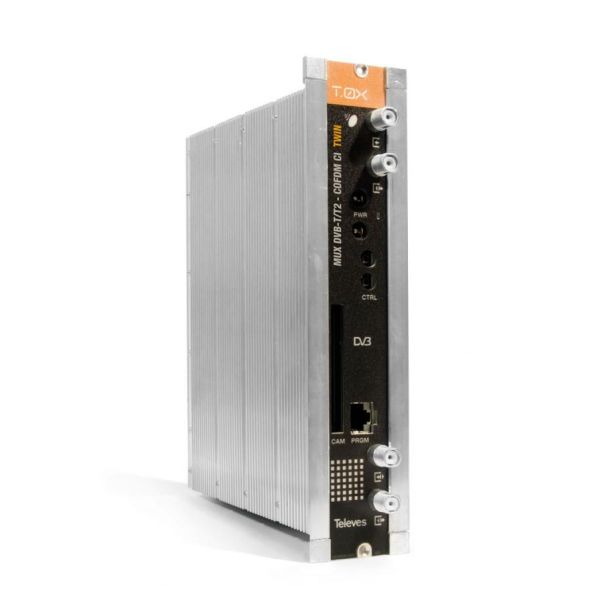

T.0X Trasmodulador DVB / T2 – QAM CI TWIN MUX 2C- 2C Televes . Ref . 565,201 .
The main function of this module is the regeneration of DTT signals or modulation DVB -T / T2 to QAM. Its most innovative feature is that they allow access to DVB- T2 signals from the current TV incompatible with this new transmission standard .
Characteristics:
TWIN fully configurable signal output .
Outbound services come from either input muxes DVB -T or DVB -T2 .
You can edit the parameters of the output transport streams .
They are compatible with professional CAM modules .
They are configurable and monitorable remotely through CDC.
Allow content filtering by removing the selected PID .
Report on the useful service rate of each input .
Report on the occupation of the output channel .
