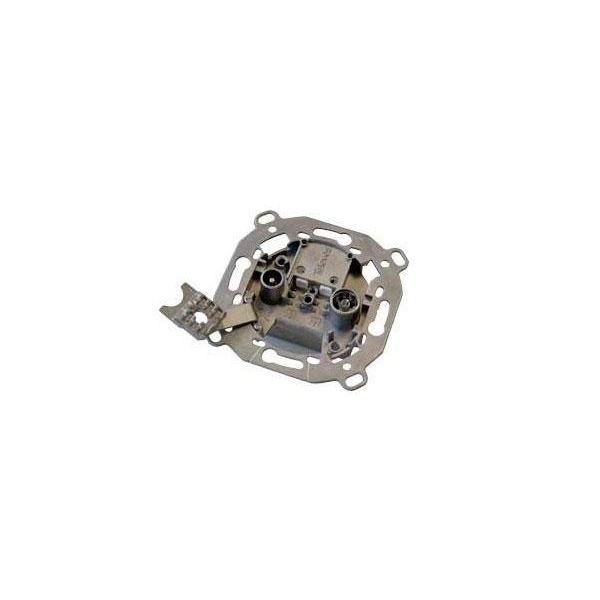

Take TV / FM – SAT Final de cascada (5 dB)
Final shot TV / FM – SAT Final (5dB)**Ref: 5229 Televes.
These jacks are used for signal distribution up to 2400 MHz . With the four available values ****can form a cascade with well equalized signal values ****. This jack is used at the end of the waterfall, with a loss of 4 dB to 5 dB for UHF and FI . With current step in FI .
**
The design of the tightening of the living has been enhanced to comply with specifications of cable operators. With this enhancement, the pressure system would meet the following specifications:
For a mini cable 4.4 mm overall diameter, the weight would be supported:
???? greater than 4 Kg live with fastening mesh.
???? more than 2 kg live with fastening only.
For a T100 type cable, the weight would be supported:
???? over 12 kg live with fastening mesh.
???? greater than 5 kg live with fastening only.
Features:
???? Weight: 200 gr.
???? Attenuation 5 dB.
???? Step current FI.
