Tap 5-2400MHz 8D 16dB (floor 2 and 3)
Tap 5-2400MHz 8D16dB, TA (floor 2 and 3)

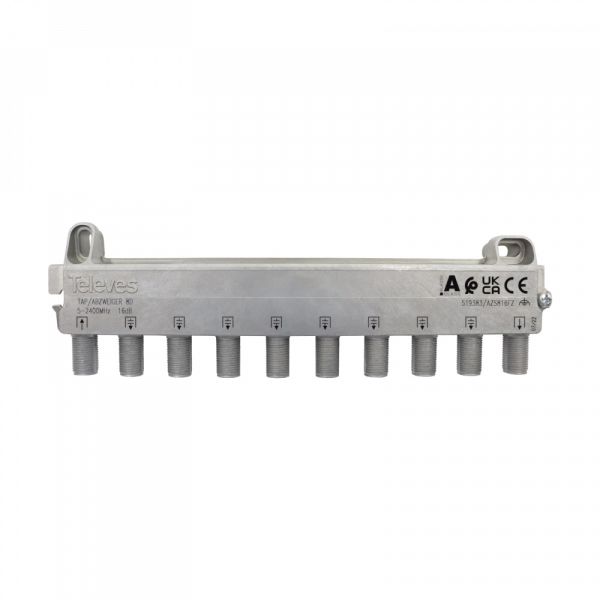

Indoor tap designed for both terrestrial and satellite signals, it works in the 5-2400Mhz band. It has **8 outputs per floor and 16dB of bypass attenuation losses.
The tap has F connections to connect the coaxial cable. This Televes shunt is a high-quality solution. It has great armor thanks to its chassis made of Zamak.
The shunts are used in the signal distribution part in collective TV installations following the guidelines of the ICT regulations. They are installed in the trunk of the building to distribute the signal to each home.
Technical Specifications of the Tap-off 5-2400MHz 8D 16dB, TA (floor 2 and 3)
?
Frequency range
MHz
5 … 2400
Number of outputs
?
8
Inputs/Bands
?
TERR
SAT
Through losses
dB
5.5
6.7
Tap losses
dB
18
17.5
Rejection between taps
dB
> 20
> 20
Voltage max.
Vdc
24
Max. current
mA
350
DC pass
?
In.?Out
