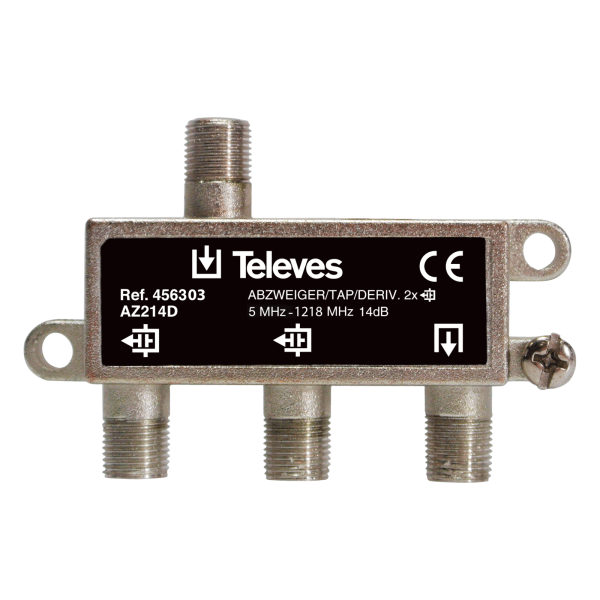

Tap-opp 2 CATV Outpust Connector F 14dB Televes
Tap-opp 2 CATV Outpust Connector F 14dB Televes
2 outputs type F and 14dB attenuation tap for terrestrial signals (5-1220**MHz), compatible with Docsis 3.1 coaxial cable data technology. Includes bidirectional DC current pass between input and output pass.
Due to its high attenuation, this tap is designed to be installed on the highest floors of a building. It is for indoor installation, but it can be installed outdoors as long as it is inside a 4163 box of Televes.
This tap is not suitable for Satellite signal distribution.
CATV tap (5-1220?MHz) with 2 F-type outputs with 14dB loss, compatible with Docsis 3.1
What are the main characteristics of the 2D Televes 456303 tap?
F connectors
Improves through losses
Outstanding shielding
Grounding screw provided
Bidirectional DC pass between input and pass output
What technical specifications does the 2D Televes 456303 tap have?
Frequency range MHz 5-1220
Number of outputs 2
Floors 6 & 7
Through loss dB 1,5
Tap loss 14
Rejection between taps >20
DC Pass (max.) A 1 (in.?out.)
