Tap with F connector 4 outputs (12 dB)

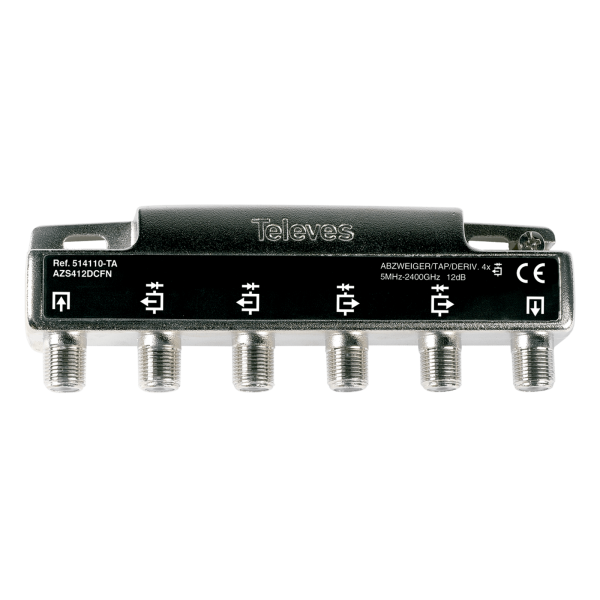

Televes 514110 tap with connector F 4D 12 dB
With this 4-way tap, you can send the television signal to 4 homes on the same floor. The connection of the cable to this tap will be made by means of F connectors. This passive component offers maximum losses of about 12 dB of shunt and between 4.5-5dB of passage.
Due to its technical characteristics it is designed to be installed on the 1st floor or what is the same, on the floor farthest from the head. It has exit of step, reason why also it is apt to settle in other plants.
This derivative of Televes works in the frequency range 5-2400MHz, admitting signals both terrestrial and satellites.
Televes tap with type F connectors model 514110 with 4 outlets and 12dB of shunt loss plus 4.5-5dB of step loss, designed for installation in floor 1.
What technical characteristics does the 514110 tap have?
F connectors
Improvement of step losses
Good screening
Includes grounding screw
Bidirectional DC pass between the input-output, and from the derivations to the input / output
What technical specifications of the 514110 tap?
Reference ?514110
?Frequency margin ?MHz 5 … 2400
?Type TA
?Tap loss MATV db 12
IF 12
?Through loss MATV 4.5
IF 5
?Decoupling MATV > 20
IF > 20
?Rejection between taps MATV > 20
?DC Pass (max.) IN<->OUT
TAPs->IN/OUT A 1
What is a tap and what functions does it have?
Taps are?passive?components that are interposed in a television installation to achieve two effects:?to compensate for signal losses, on the one hand, and?balance the signals received by each user, on the other, they are installed in the main channel of the building or community .
A shunt is similar to the distributor but is?used in buildings or in communities. It has an IN input, several floor outputs that call (TAP) and these outputs have an established signal loss, 10dB, 15dB, 20dB, etc. and an output (OUT) with little loss to give signal to the plant immediately below (and place another derivative in cascade, etc). It is necessary to calculate the loss that each derivative of each plant needs to have depending on the number of plants, intakes, etc.
