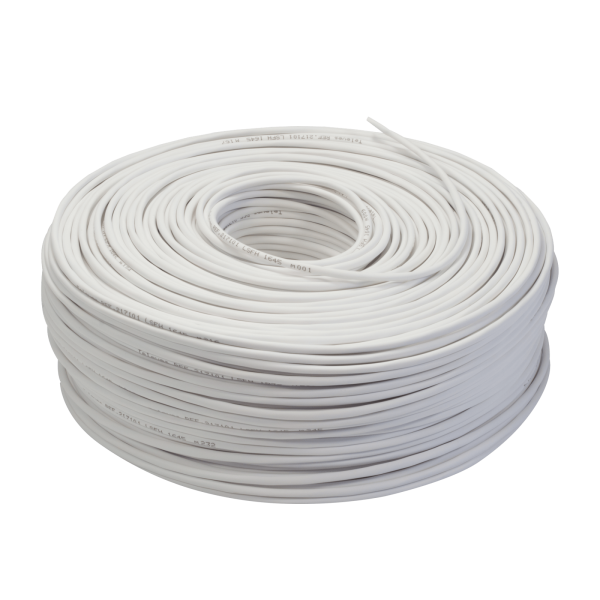

Telephone cable of 2 pairs in 250 m coil.
2-pair telephone cable in 250m coil
Televes 217101 telephony cable consists of two twisted pairs with pure electrolytic copper conductor of gauge not less than 0.5 mm in diameter.
One or two pairs of cable will be used in the dispersion network and in the user’s internal network. Cables of more than 25 pairs are used for the realization of the main basic telephony network.
This cable is distributed in coil of 250m, to buy it to the cut,**enter the following link.
The 217101 telephone cable is a 2-pair telephone cable.
What technical characteristics does the 217101 clable have?
Reference? 217101
?No. of pairs? 2
?Mechanical specifications??
Inner
conductor Diameter mm 0,5 ??? 0,6
Insulation ?material ?PE
Outer sheath material ?LSFH
Thickness ?mm ?0,7
Diameter ?mm ?5
?color ?White
Twisting length mm ?< 55
Electric specifications??
Ohms resistance ??/Km ?< 98
Insulation resistance M?/Km ?> 1000
Conductor/shielding
dielectric strength ?Vac ?> 350
?Vdc ?> 500
Mutual capacitance ?nF/Km ?< 58
Attenuation ?
?
?dB/Km
?
? ?1,7
?1,8
?2,3
?9
?24
