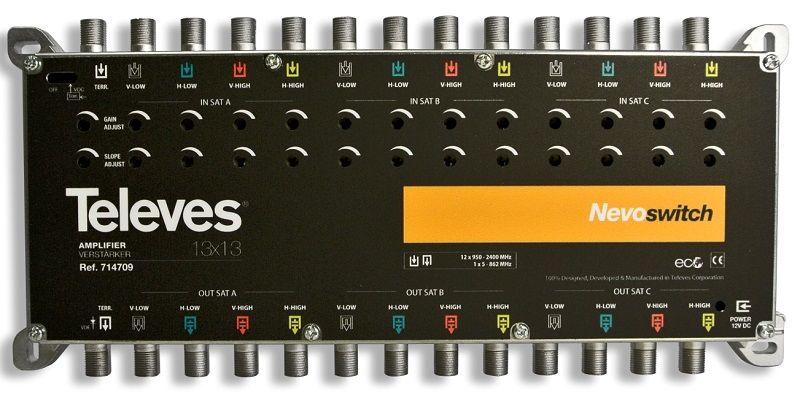

TELEVES 13×13 CASCADE Launch Amp
TELEVES
13×13 CASCADE Launch Amp
30db SAT 30dB Terr – 2 Year Warranty
*Special Order! NCNR – Check Lead Time*
This unit can be used as a cascade element since it has 13 outputs to
connect to other switches and increase the number of users.
This range of products has been designed with the ECO system: as the number
of users decreases, the power consumption of the system will decrease as
well.
Gain in the FI band can be selected individually for each group of 8 users
to provide a
balanced output.
