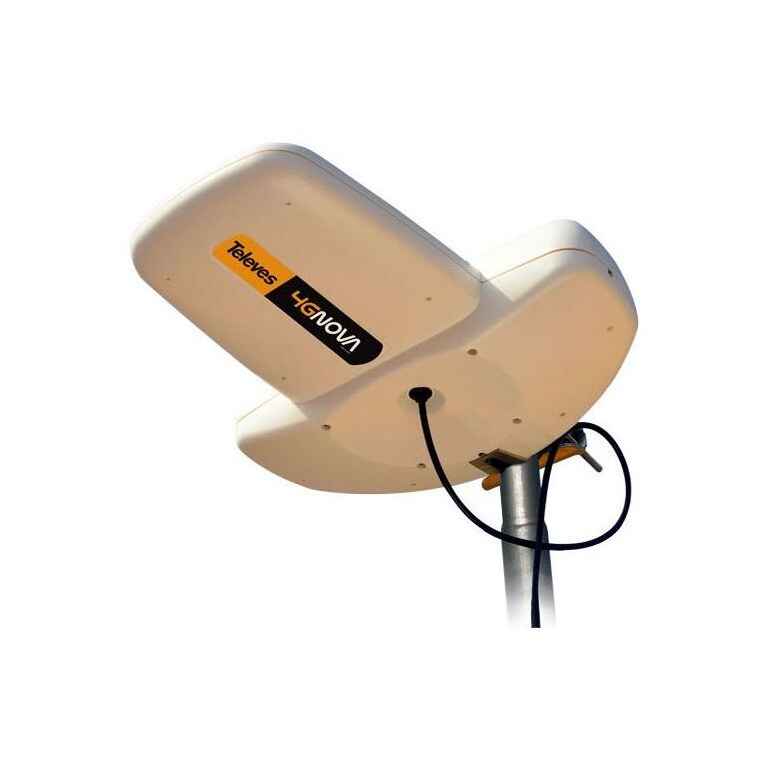

Televes 4GNova Antenna Terrestrial 4G/LTE (SMA Male)
KSh23,178.00
Antenna transmission and reception of LTE/4G signals for extending coverage shielded or difficult propagation areas. The 4GNova antenna can directly connect to an LTE/4G router or a radiant indoor antenna.?Male SMA connector and 7.5m cable.
Antenna transmission and reception of LTE / 4G signals for extending coverage shielded or difficult propagation areas. The 4GNova antenna can directly connect to an LTE / 4G router or a radiant indoor antenna. In the latter case, the devices can use the 4G network coverage obtained without issuing high power, saving battery and protecting the user from excessive radiation.
Features
4G mobile devices more efficient.
Male SMA connector and 7.5m cable
Wide frequency range.
Aesthetic design and noninvasive.
Reply optimized links uplink and downlink.
High quality antenna made of high strength materials.
Its implementation in printed circuit prevents changes in mechanical characteristics and quality guarantees.
Easy intalacion on balconies and facades. No maintenance required.
No consumption.
Specifiactions
Reference? 650102
?Connectors ? SMA Male
?Frequency range Mhz ?698…960 1700…2700
?Gain dBi 7.5 7
?Front-to-back ratio dB >18 >20
?Impedance ? 50
?Wind load N 69.6 (@130Km/h)
95.7(@150Km/h)
?Dimensions (Wid x Hei x Dep) mm 420 x 315 x 75
?Protection Index IP 53
?Weight g 1500
Application example
* see Attachments for more mounting information
Radiation diagram
