Televes H30Evolution sprectrum analyzer DVB-S/S2 + DVB-T

Share On:

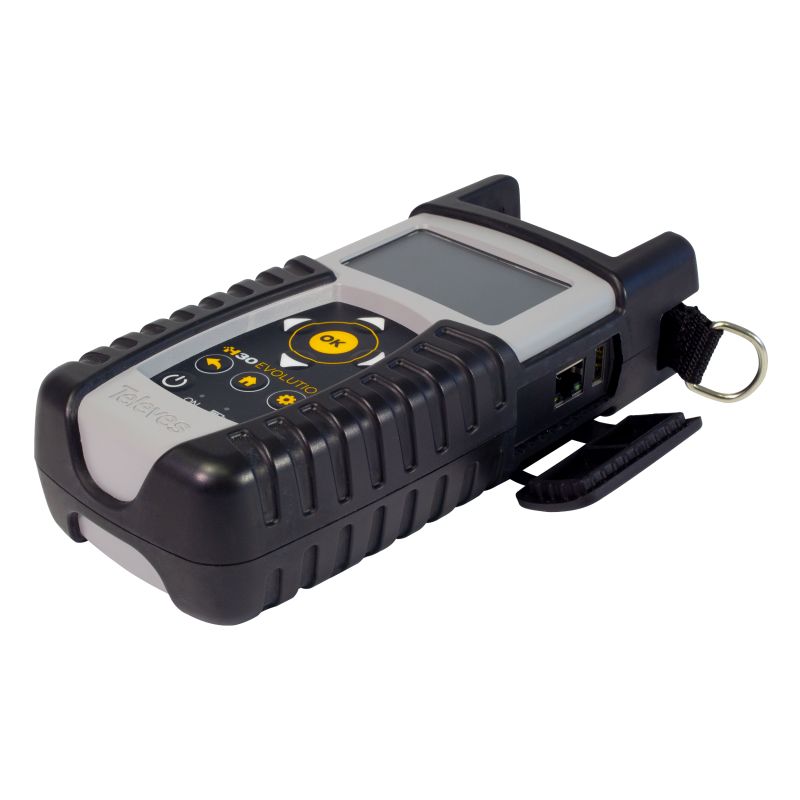

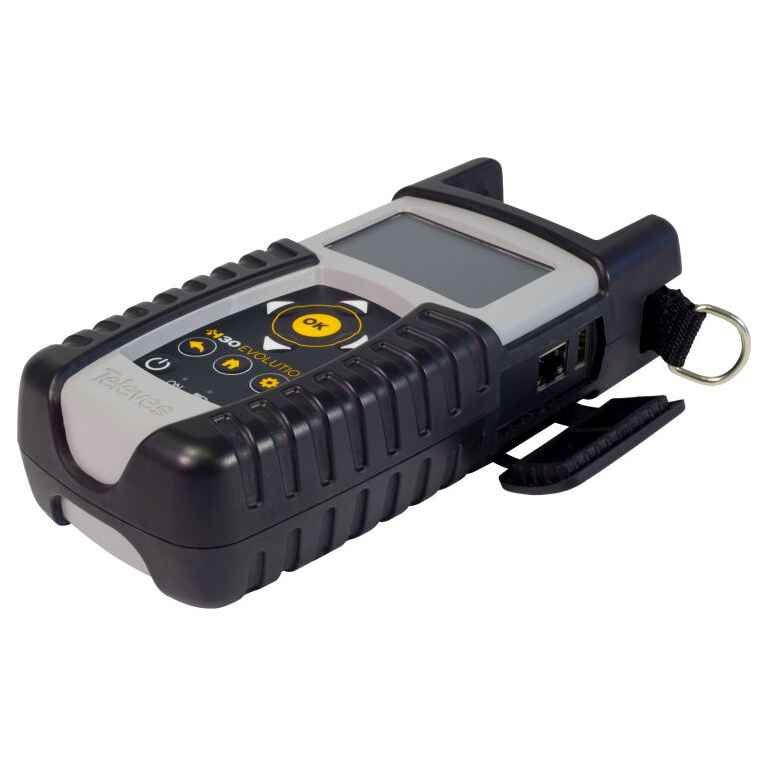

H30Evolution is a field strength meter
DVB-S/S2 + DVB-T that combines the best features of a portable and compact
equipment – distinctive of the H30 series – with revolutionary
functionalities. Thanks to the innovative multiscreen system based on Wi-Fi/Bluetooth,the
meter may be remotely displayed and controlled using any Android or iOS
device or a PC

All the functions you need now in your

H30Evolution is a field strength meter that combines the best features of a
portable and compact equipment – distinctive of the H30 series – with
revolutionary functionalities. Thanks to the innovative multiscreen system
based on Wi-Fi/Bluetooth,the meter may be remotely displayed and controlled
using any Android or iOS device or a PC, thus providing the flexibility and
convenience of a wireless system.

In addition, to make the use of the smartphone even more natural, a
universal bracelet is provided for devices up to 6″.

H30Evolution is a lightweight, compact and robust equipment that includes a
full range of tools and functionalities to successfully perform installation,
maintenance and troubleshooting tasks in both analogue networks and digital
networks with DVB-S/S2, DVB-T/T2, and DVB-C channels. Since it is a
multi-standard equipment, the options may be updated by means of a
license-based downloadable software, without the need for the equipment to be

Just as the rest of the meters fully designed and manufactured in Televes
Corporation, H30Evolution takes advantage of the digital processing
technology, and provides the user with a speed and mathematical accuracy
equivalent to that of laboratory equipment.

Multiscreen system with touch control: display the meter screen on a mobil
device, and control the meter by touch gestures and buttons
WiFi and Bluetooth connectivity
Wideband LNB supported
Guided satellite pointing
Real-time digital processing
Light-weight handheld meter
User friendly interface
Multi-standard, fully configurable; with WiFi / IPTV analyzers and HEVC
display as options
All measurements are carried out by pressing a single button equipped with
Pass/Fail indicators to reduce installation errors
Mechanical Specifications
Screen 2.8” TFT 400 x 240 full color
Weight 510 g.
Dimensions 175x100x52 mm / 6,9×3,9×2 (HxWxD)
AC Adaptor Input: 100-240V~ 50-60Hz Output: 12VDC, 2A
Battery Li-ion (7,2VDC, 2300mAh)
Baterry range >4hours without LNB powering
Interfaces Bluetooth, Wi-Fi 2.4GHz (5GHz upgrade 593250), Ethernet
USB 2.0 for Data log download and software upgrades
Storage capacity 400 MB (internal) for measurements
Resilience It withstands drops from 1 m (3.2 ft) onto concrete on all
Impedance F-type connector – 75 Ohm
Technical Specifications
593503 593501 593502 593504 593505
Range Terrestrial: 50 – 880 MHz / Satellite: 950 – 2200 MHz / Wideband: 250
– 2350 MHz
Resolution 125 kHz
Tunning Frecuency or channel

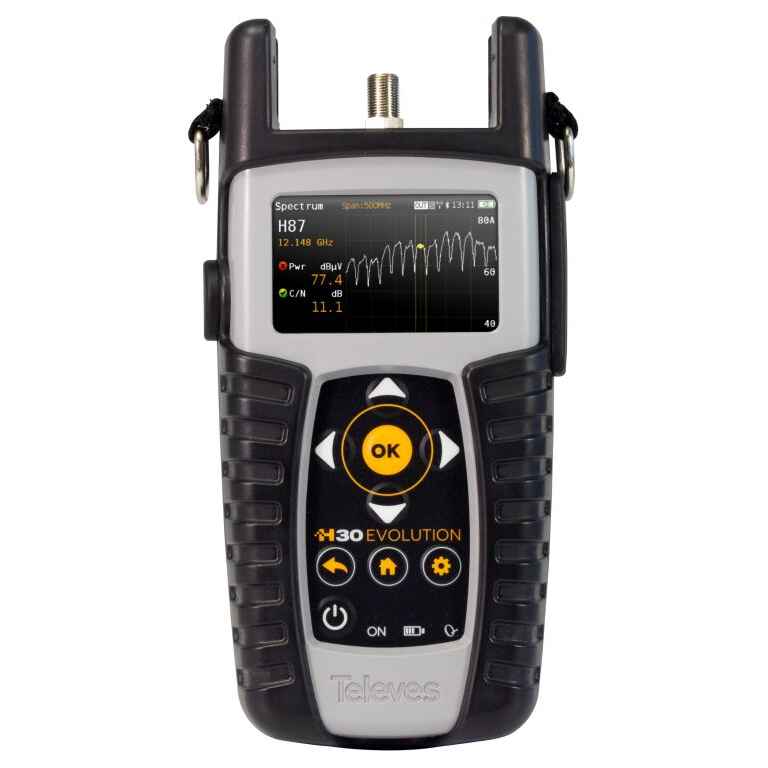

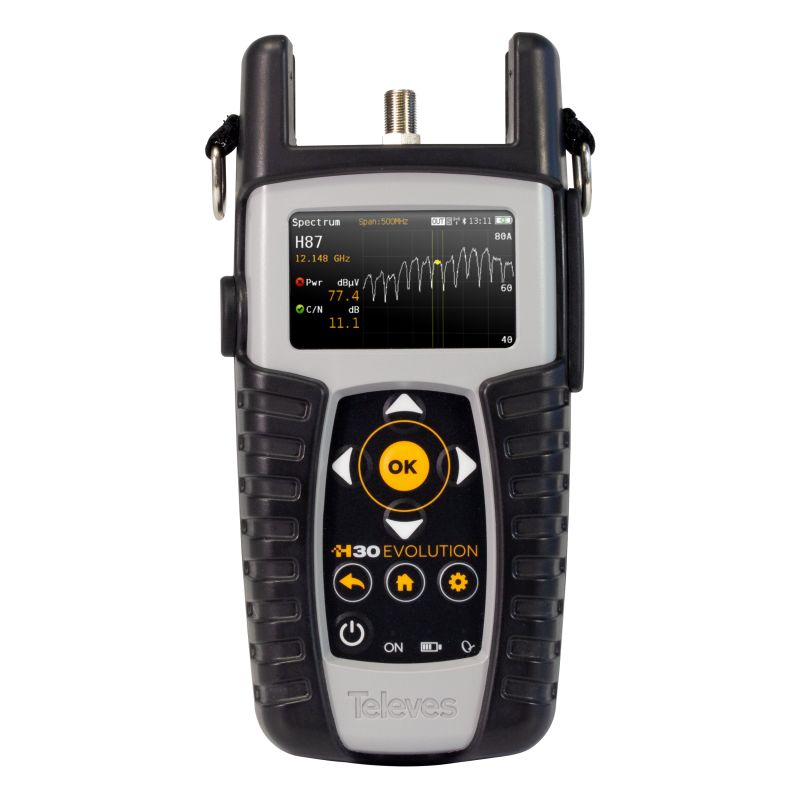

Spectrum analyser
Span 5, 10, 20, 50, 100, 200, 500 MHz y Full
Scale 5 and 10 dB/div
Reference level (automatic and manual) ✓
DVB-S digital measurements [Modulation: QPSK]
Image ✓ ✓ ✓ ✓ ✓
Power From 45 to 110 dBμV ✓ ✓ ✓ ✓ ✓
CBER 9.9E-2 – 1.0E-6 ✓ ✓ ✓ ✓ ✓
VBER 1.0E-4 – 1.0E-8 ✓ ✓ ✓ ✓ ✓
MER Up to 20dB ✓ ✓ ✓ ✓ ✓
C/N Automatic ✓ ✓ ✓ ✓ ✓
Constelation ✓ ✓ ✓ ✓ ✓
SCR EN 50494 ✓
dCSS EN 50607 Upgrade 593234*
DVB-S2 digital measurements [Modulations: QPSK, 8PSK]
Image ✓ ✓ ✓ ✓ ✓
Power From 45toa 110 dBμV ✓ ✓ ✓ ✓ ✓
Link Margin Up to 10 dB ✓ ✓ ✓ ✓ ✓
MER Up to 20 dB ✓ ✓ ✓ ✓ ✓
LDPCBER 9.9E-2 – 1.0E-6 ✓ ✓ ✓ ✓ ✓
BCHBER 9.9E-2 – 1.0E-8 ✓ ✓ ✓ ✓ ✓
Constelation ✓ ✓ ✓ ✓ ✓
SCR EN 50494 ✓
dCSS EN 50607 Upgrade 593234*
DVB-T digital measurements [Modulations: COFDM (QPSK, 16QAM, 64QAM)]
Image Upgrade 593231 ✓ ✓ ✓ ✓
Power From 45 to 110 dBμV Upgrade 593231 ✓ ✓ ✓ ✓
From 45 to 120 dBμV Upgrade 593231 + 593235* ✓ | Upgrade 593235* ✓ |
Upgrade593235* ✓ | Upgrade593235* ✓ | Upgrade593235*
CBER 9.9E-2 – 1.0E-6 Upgrade 593231 ✓ ✓ ✓ ✓
VBER 1.0E-3 – 1.0E-8 ✓ ✓ ✓ ✓
MER Up to 35 dB ✓ ✓ ✓ ✓
C/N Automatic ✓ ✓ ✓ ✓
Echoes ✓ ✓ ✓ ✓
Constelation ✓ ✓ ✓ ✓
DVB-T2 digital measurements [Modulations: COFDM ( QPSK, 16QAM, 64QAM and
256 QAM)]
Image Upgrade 593231 + 593232 Upgrade 593232 ✓ ✓ ✓
Power From 45 to 110 dBμV Upgrade 593231 + 593232 Upgrade
593232 ✓ ✓ ✓
From 45 to 120 dBμV Upgrade 593231 + 593232 +  593235* Upgrade 593232
+ Upgrade 593235* Upgrade 593235* Upgrade 593235*  Upgrade 593235*
LDPCBER 9.9E-2 – 1.0E-6 Upgrade 593231 + 593232 Upgrade 593232 ✓ ✓ ✓
BCHBER 1.0E-3 – 1.0E-8 ✓ ✓ ✓
Link Margin Up to 30 dB ✓ ✓ ✓
MER Up to 35 dB ✓ ✓ ✓
C/N Automatic ✓ ✓ ✓
Echoes ✓ ✓ ✓
Constelation ✓ ✓ ✓
DVB-C digital measurements [Modulations: 16QAM, 32QAM, 64QAM, 128QAM and
256 QAM]
Image ✓ Upgrade 593233 Upgrade 593233 ✓ ✓
Power From 45 to 110 dBμV ✓ Upgrade 593233 Upgrade 593233 ✓ ✓
From 45 to 120 dBμV Upgrade 593235* Upgrade 593233 + 593235* Upgrade 593233
+ 593235 Upgrade 593235* Upgrade 593235*
CBER 1.E-2 – 1.0E-8 ✓ Upgrade 593233 Upgrade 593233 ✓ ✓
MER Up to 38 ✓ ✓ ✓
C/N Automatic ✓ ✓ ✓
Analogue measurements
Level 25 y 125 dBμV ✓ ✓ ✓ ✓ ✓
V/A ✓ ✓ ✓ ✓ ✓
C/N ✓ ✓ ✓ ✓ ✓
Measurements and functions
Analyser WiFi Upgrade 593250 Upgrade 593250 Upgrade 593250 Upgrade
593250 ✓
Analyser IPTV Upgrade 593251 Upgrade 593251 Upgrade 593251 Upgrade
593251 ✓
Terrestrial plans CCIR, CCIR + LTE, OIRT, KBW, FCC, DAB, SIM
Satellite plans 68E INTEL C, 68E INTEL, 42E TURK, 39E HELLAS, 33E EUTEL,
Units dBμV, dBmV, dBm
LNB powering 13, 18 Vdc
LNB tone 22 kHz
* Ref. 593234 & 593235: Free upgrade when registering the

Multiscreen and remote control
Controllable from any Android or iOS device or a PC
The H30Evolution multiscreen system allows you to display the meter’s
screen on your smartphone or tablet to wirelessly control the equipment or
just for the sake of working with a larger screen.
The installer may wirelessly access the equipment at any time from anywhere
in the installation (depending on the local network connection range), with
the convenience of always using his/her own device.
Simply install the H30Evolution App on your device and connect it to the
WiFi network generated by the meter (AP mode).

Multi Standard
Fully configurable equipment to meet your needs
H30Evolution is fully prepared to meet the specific needs of each
individual user. It is a multi-standard equipment, ready to take measurements
on the satellite band, but also on the terrestrial band channels. In order to
meet the changing needs of individual users, the equipment allows them to
easily add new options, with no need to send the meter back to the

Wi-Fi and Bluetooth connectivity
Wireless access to the meter
Equipped with 2.4/5 GHz Wi-Fi and Bluetooth, the equipment allows a secure
access through an Android or iOS device, or a PC. In this way, the WEB
management application may be used to query and edit channel plans or user
profiles, export measurements, etc.

Ready to Capture
signal from any satellite
H30Evolution allows you to configure the parameters required for the
reception of your satellite signal. To do this, H30Evolution allows
pre-amplifier powering, and configuration of both DiSEqC and SCR

Interactive User Interface
Optimize the learning curve
Scrolling through the menu is now very easy, thanks to its single-level
structure, which includes all the functions in a very intuitive way: better
utility, higher operation speed, and maximum productivity. No function
requires more than three successive button pushes to achieve the desired
operation. You will not find any easier-to-use device, and will be able to
surf the different functions with no need for a user manual.

Comprehensive Functionality
Pass/Fail indicators
A full range of functionalities such as Single-channel measurements,
Constellation diagram, Spectrum analyser, Service identification, Data logs,
Channel plan auto-learning, and more.

Accuracy and Speed
Real-time digital processing
Designed to instantly obtain all the information about the signal in real
time, it is a true milestone in field work. H30Evolution provides the
required accuracy and speed to detect minor transient radiation, or spurious
signals that could affect the system during signal reception.

100% Automatic
Signal detection
Fully automatic, it detects the parameters of different modulations with no
need for configuration. H30Evolution will detect at once whether the input
signal is analogue or digital, and will determine its constellation, symbol
rate and other modulation parameters, providing an instant reading without
any user intervention.

Rugged and Light-Weigh
Absolute reliability

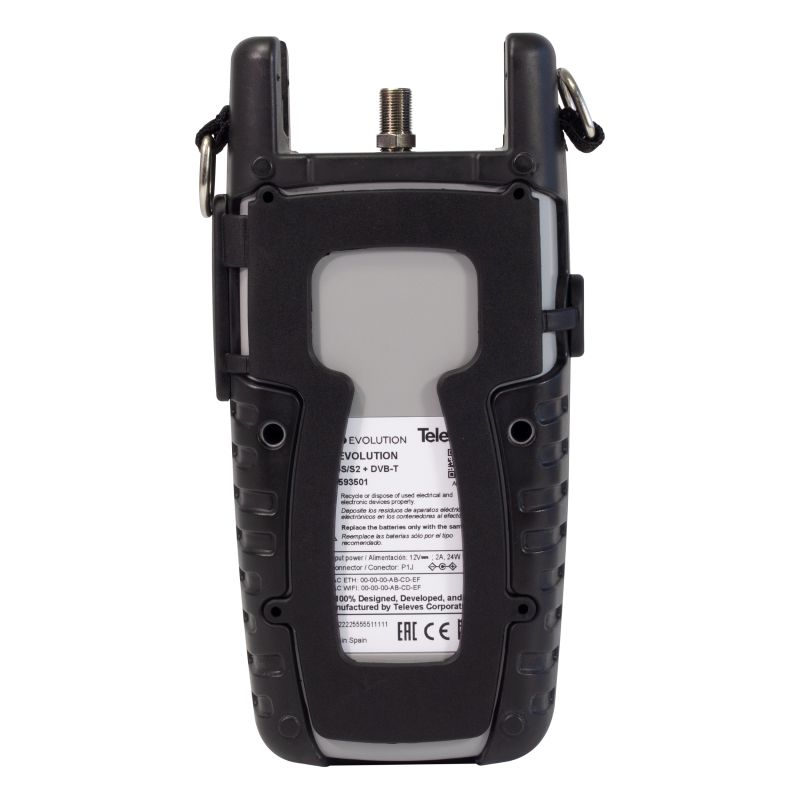

Its exclusive casing made of double-injection rubber and polycarbonate
plastic guarantees protection and durability. Weighing only one pound,
H30Evolution is convenient to carry and use. You can slip it in your pocket
or use its strap around your shoulder… You will barely notice it is

Made in Televes
Your Quality Warranty
The H30Evolution is entirely designed by Gsertel, company within Televes
Corporation, where our team of experienced and highly qualified
telecommunication engineers managed to integrate digital processing in a
handheld unit of 1lb of weight. Each H30Evolution includes more than 5,000
components and integrated circuits.

Services and IPTV Analyzer (*)
IPTV and RF services information
Allows the demodulation and analysis of IPTV streams (both Unicast and
Multicast), not only through video display but also by displaying the total
bitrate and bitrate for each service. The relevant information for each
service is already given: SID, VPID, AID, video profile, bit rate for both
audio and video.
In addition, this option completes the RF measurements since all this
information by service is analysed as well for this type of signals.
For IPTV signals, specific protocol measurements (UDP/RTP) are also
analysed, such as UDP format, Media Loss Rate, Lost IP frames.
(*) Optional feature: Ref. 593251

Wi-Fi Analyser (*)
All bands (2.4 and 5 GHz)
This functionality allows a full analysis of the Wi-Fi band for the
automatic detection of all the networks. Each of them is identified by name,
and the power of the signal at the access point is also displayed. Two
display modes are provided for the user to choose. The “list” mode provides a
list of the detected networks with the associated data and power, while the
“map” mode represents them on a dual-axis map: power vs. frequency.
(*) Optional feature: Ref. 593250

Pass/Fail Indicators
Easy decision-making
Reduce installation mistakes with the on-screen Pass/Fail indicators, a
graphical tool that helps and speeds up the interpretation of measurement
results. Different thresholds are available depending on the network area to
be analysed: headend, multi-band amplifiers, bridging connection, connection
records, user home, etc. Besides the pre-set values, you will be able to
customize your own threshold values.

Channel Information
The less the better
Sometimes, taking a quick glance at one channel is all you need. The
advanced H30Evolution single-channel measurement option automatically detects
the channel type, displaying the audio and video levels, A/V and C/N for
analogue signals, and power, C/N, and appropriate quality measures for each
type of digital signal. All these measures are taken by means of one single
button; at that point, all indicators will be activated and display the
“Pass/Fail” condition based on the thresholds specified by the user.
Easy-to-interpret results, even for junior technicians.

System Scan
Monitored installation
Scan each existing analogue and digital channel in real time to determine
the overall system frequency response. This function leverages the
location-based thresholds to clearly show whether the signal levels meet the
cable systems’ specifications with green, yellow and red bars. This feature
provides an easy-to-understand, real-time view of the system, including the
BER and MER values of the selected channel.

Spectrum Analyser
From 5MHz to “full span“
H30Evolution spectrum analyser provides a value range of 5, 10, 20, 50,
100, 200, 500 MHz and Full, as well as a reference level auto-adjust feature.
Real-time processing speeds ensure the capture of any signal incidents. You
will be surprised by the accuracy and the level of detail provided by this
ultra-portable pocket spectrum analyser. The ultimate tool for identifying
and localising noise, interference, radiation, and any other signals that may
be affecting the quality of the television signal distribution service.

Guided satellite pointing
LNB self-configuration
This functionality speeds up the dish pointing work. The meter has a
typical satellite and a stable transponder according to the regional zone
previouly set, and it is self-configurated for the LNB connection. In
addition, a sound indicator can be activated in order to audibly guide the
user in the satellite dish pointing.
The reference satellite can be manually changed and start a new

Wideband LNB compatible
From 250 to 2300 MHz
This functionality for DVB-S/S2 allows the complete analysis of a satellite
channel in any frequency within the 250 MHz to 2300 MHz range. Thus, the
meter can be directly connected to any output of a LNB Wideband (2 outputs:
Vertical and Horizontal)

MPEG video and detailed information
Do you wish to know the contents offered on a DIGITAL channel? H30Evolution
function MPEG will tell you. In addition to channel services display, you
will get their key parameters: Service name, PID, resolution, audio types and
figures, and NIT. A valuable help when troubleshooting your encoder

HEVC display (*)
on your mobile device
This functionality supports HEVC H.265 new compression format and allows to
display on your mobile device video signals with a maximum Full HD resolution
(1920 x 1080). Displaying is always on the smartphone, tablet or PC
(multiscreen mode) as long as your hardware is H.265 compatible.
(*) Optional function: Ref. 593252

Constellation Diagram
Fine-tune your digitals
Constellation analysis is essential for determining the quality of digital
signals. Constellation diagrams help detecting noise, jitter, interference
and signal saturation, and all the variables that could impact signal
quality, eventually leading to service suspension. By visually inspecting the
size and shape of the dots in the constellation matrix, the technician will
be able to easily identify the nature of the problem

Capture Plan
Custom channel plans
Identify the channels in your distribution with the ultra-fast Capture Plan
function, and from there build your own channel plan containing only the
channels you are interested in. Furthermore, each channel will be displayed
on a bar chart with the appropriate colour based on the selected quality

Optimal signal reception
In terms of terrestial signal reception, controlling the absence of any
echoes that could jeopardize reception is crucial. H30Evolution displays the
echoes of the received signal, allowing the installer to minimize them for
optimal signal reception.

Save and download
While you are taking measurements or looking for possible problems, you can
save sample signal parameters for further in-depth analysis or just for
record and use in your reports. It can also prove to be a useful tool for
training purposes.

Always updated
Automatic detection of new software versions
The meter automatically detects if there is a new software version when it
connects to the internet (WiFi, Ethernet). To notify that new software is
available, an icon in the upper right part is activated without interrupting
the user’s work. The system update can be accessed on the settings

If the meter is not connected to the internet, it can also be updated using
a PC (USB port) where the software version was previously downloaded.






Chat with us

Share On:


Your Cart is Empty

Back To Shop
