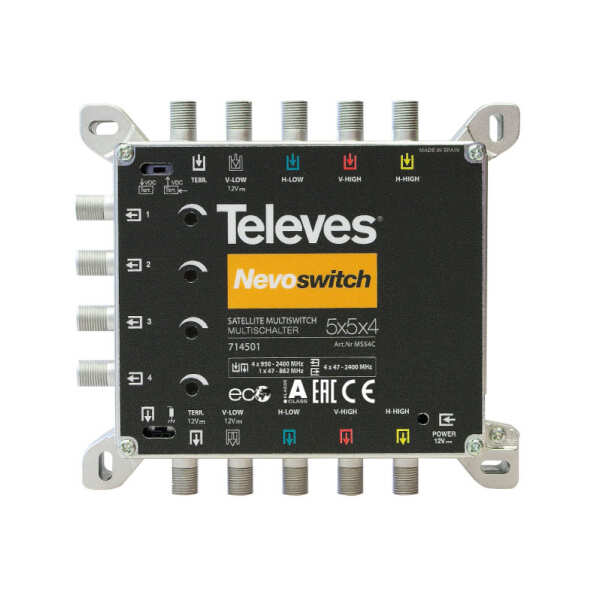

TELEVES Nevoswitch 5x5x4 CASCADE
TELEVES
Nevoswitch 5x5x4 CASCADE
5 In 4 Out c/w Output Earth Bar Only
2 Year Warranty
(May require a PSU: 12V1.5A PSU 732210)
*Special Order! NCNR – Check Lead Time*
Cascadeable multiswitch equipped with 5 inputs (one terrestrial, and the
four polarities of one satellite), 4 user outputs, and a 12 dB potentiometer
per user output.
Can be used as a terminal (star topology) or as a cascade by using a simple
switch.
Features:
One potentiometer (12 dB) on each of the user outputs to optimize the level
on an individual basis
A switch for either powering terrestrial pre-amplifiers or allowing current
circulation
Can be powered directly from the satellite receiver, without the need for a
power supply unit*
Remote power feeding using VL
Current circulation between all inputs and cascades
Active terrestrial
Very compact
Made of zamak
Input and output colour identification
Available ECO mode
Selector switch to shift between cascade and terminal modes
12v Power Supply
Low power consumption
