Televes’ SMATV 1200-1600nm Optical Receiver with OLC Technology

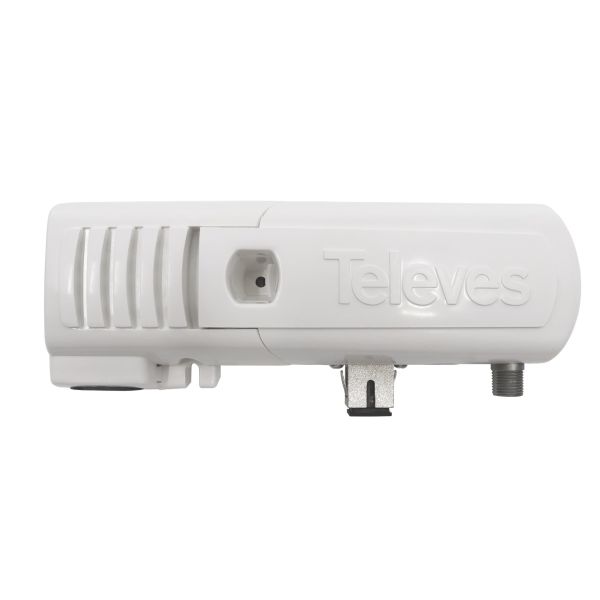

SMATV Optical Micro-Receiver with Televes OLC Technology
Do you want to enjoy fiber optic TV without complications** This Televes receiver is your ideal ally. This micro-receiver converts the optical signal (1200-1600 nm) directly into RF output (47-2400 MHz), ready to connect to a TV or home headend.
Thanks to its OLC (Optical Level Control) technology, it automatically regulates the output intensity regardless of the channel load, ensuring constant signal quality without manual adjustments. In addition, its compact and elegant design integrates seamlessly into any living room or home environment.
Its wide optical range, together with a C/N boost of over 51dB, ensures a clear and uninterrupted experience. It allows easy wall mounting and has an LED indicator that shows the received optical level.
Mount the micro-receiver behind the TV cabinet and hide cables behind the wall – no messy fiber signal! Signal takes a few seconds to stabilize, OLC activates instantly when power is turned on.
Package contents:
1 ** Televes 231110 optical micro-receiver 1 ** Televes 231110 optical micro-receiver.
Power supply 110-230 VAC
Mounting screws and anchors
User manual
Make your home ready for fiber TV with the Televes 231110 receiver: optimized signal, fast and hassle-free installation, fiber at home instantly!
Technical Specifications of the SMATV Optical Micro-Receiver with OLC Technology from Televes
Number of exits
?
1
Tickets/Bands
?
TERR
Output frequency range
MHz
47 … 2400
Output level
dB?V
80
Flatness
dB
-1,5 … 1,5
Return losses
dB
> 11
Input wavelength
nm
1200 … 1600
OLC Range
dBm
-10 … -1
Optical input level
dBm
-13 … 2
Optical return losses
dB
> 40
Optical device
?
InGaAs pin photodiode
C/N
dB
> 51
Optical connectors
?
SC/APC
RF connectors
?
“F” female
Impedance
Oh
75
Input voltage
Vac
110 … 230
Max current
m.a.
32
Max power
IN
1,6
Operating temperature
?C
-5 … 45
Protection index (IP)
?
20
