Televes Standard Support for T12/T.0X Modules
Standard 5071 Support for Televes T12/T.0X Modules

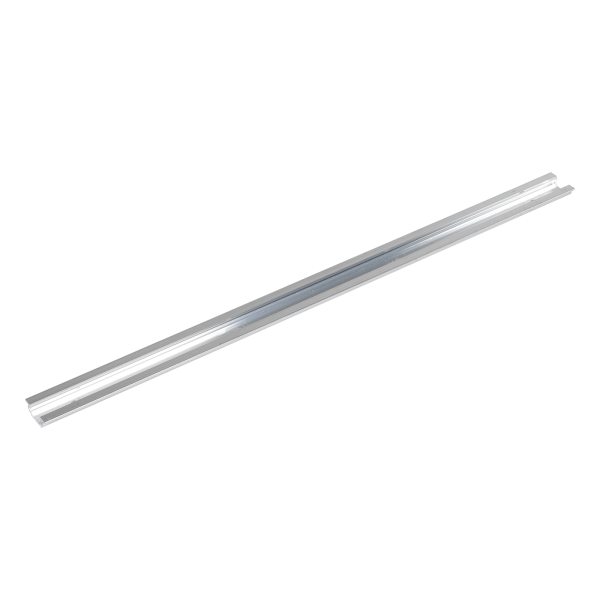

Din rail support for installation of Televes T12 and T.0X header equipment on the wall.
It is 498mm long, enough space to mount a power supply with 10 T12 modules or 7 T.0X modules.
Televes T12/T.0X modules wall mount
Dimensions: 498mm (1x font + 7x T.0X / 10x T12)
