Televes TV/FM-SAT Surface End Outlet
Televes Suface TV Outlet Kit + Supplement + Embellisher
This TDT0066 Kit of Televes outlet includes the separator outlet for TV/FM-SAT 5226**with clamps, the supplement for outlet 5442 and the white trim plate for two**5440 connectors.
Television outlet with two outputs, one for terrestrial and FM mixed and one for satellite only.
Kit that includes the TV/FM-SAT 5226 Televes outlet with the 5440 bezel and the 5442 outlet supplement.
What technical specifications do the TDT0066 TDTprofesional kit components have?
Televes 5440 Trim
Embossed indications on the bezel
ABS plastic in white (RAL 9001)
Fixing screw according to RoHS and corrosion resistant
Televes 5442 Supplement
ABS plastic in white (RAL 9001)
Fixing screws according to RoHS and corrosion resistant

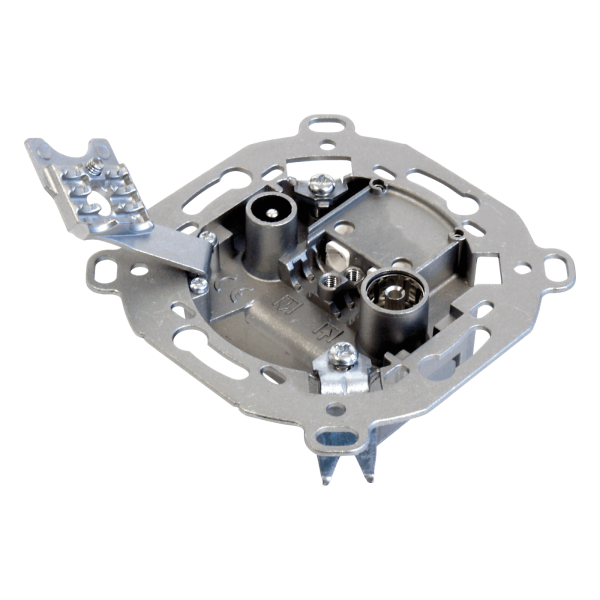

Televes 5226 Outlet
Type TV-SAT
Band MATV
(5-862MHz) SAT-FI
(950-2150 /
2150-2400MHz)
Connector ?IEC? Male ?IEC? Female
Fastening method W/o screws
Rejection between outputs dB
>8 (5-47MHz)
>10 (47-862MHZ)
>8 (950-2150MHz)
>15 (2150-2400MHz)
Output pass No
Insertion loss dB –
Attenuations Out: FM dB – –
Out: TV – 1,5
DC pass (24V ? 350mA) SAT ? Input
