Terminal socket 3 connectors TV/FM-SAT1-SAT Televes
KSh2,582.00

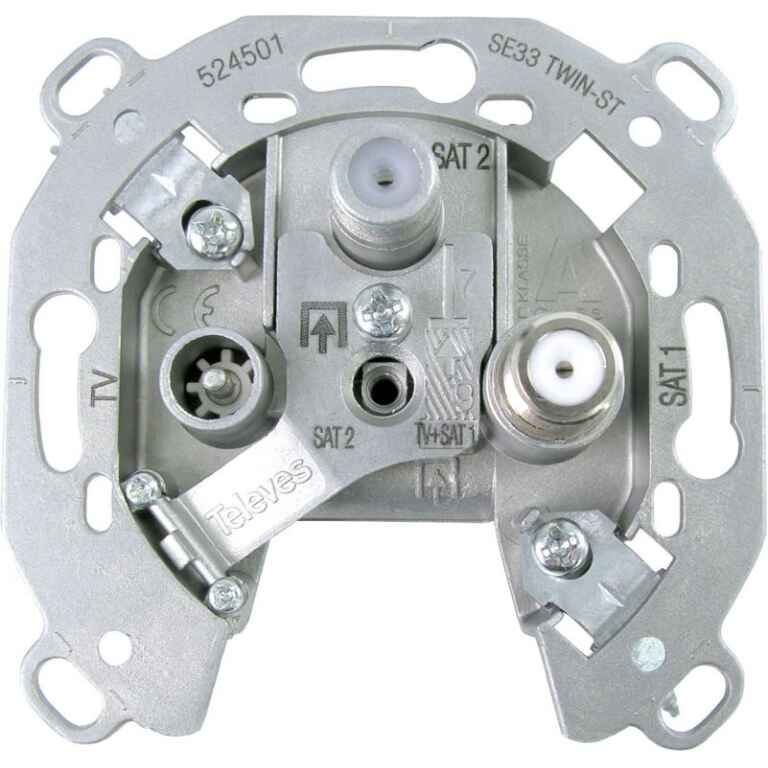

Terminal socket with three connectors and 2 inputs. It consists of two connectors F: SAT1 for the satellite signal of input 1 (filtered), and SAT2 for the satellite and terrestrial signal of input 2 (all band 5-2400MHz). CEI male connector for radio (FM) and terrestrial TV, coming from input 1 of the socket. The lower part of the chassis is open. Televes 524501
End outlet equipped with three connectors and two inputs. Equipped with two F connectors: SAT1 on the lower right side for the satellite signal corresponding to input 1 (filtered), and SAT2 on the top for the satellite signal corresponding to input 2 (full bandwidth 5-2400 MHz). The IEC male connector for radio (FM) and terrestrial TV from outlet’s input 1, is located on the lower left side.
The lower part of the chassis is open.
Highlights
High-rejection terrestrial-satellite separation filter: the SAT signal is filtered in the FM/TV IEC connector, while the terrestrial FM/TV signal is filtered in the satellite (SAT1) F connector.
Robot-controlled automated manufacturing
High shielding
Outstanding isolation between outputs
Features
Made of Zamak, high strength
DC pass from the SAT connector to the input
Compatible with coaxial cable with sheath diameters in the 5-to-7 mm range (? 5…7 mm)
?
Televes outlets: Screw-free mounting
A class A outlet offering numerous advantages:
The inner conductor is connected simply by pushing, without the need for screws; still the gripping force is equivalent
Supports inner conductor diameters from 0.65 mm to 1.2 mm, and external cable diameters from 5 mm to 6.9 mm
F-connector type conic guide for easy inner conductor introduction
Wide margin in inner conductor length (from 5 mm to 15 mm), which makes short circuits between core and mesh difficult
Tilt-up, self-supporting, full-opening clamp
The clamp is equipped with 3 jagged rows in 9 mm for a perfect braid fixing
Printed circuit board perforation to make the faceplate fixing screw compatible
Rounded edges to prevent cuts?
Class A shielding
Furthermore, this product range includes several engravings on the chassis:
CE marking
Numerical and logical references
Input and output indications
Cable stripping dimensions
Related products
-
Intermediate series socket Televes
KSh2,116.00 -
Add to cartTerminal socket with three connectors. In the lower left part a male CEI for terrestrial TV, in the lower right a female CEI for FM (radio) and in the upper center an F connector for multimedia data. Specially designed for operators, it is compatible with DOCSIS 3.1. Compatible with coaxial cables with cover diameter ? 5 … 7mm. Televes 524001
-
Through 10 dB + DC 5-2150 MHz
KSh2,718.00 -
Add to cartSeparator terminal connector with two CEI connectors. The one on the left is a male CEI for FM (radio) and terrestrial TV and the one on the right is a female CEI for satellite TV (FI). TV/FM-SAT. 0.6 – 1.5dB + DC without claws. Televes 5276
-
Add to cartIKUSI ARTU 088. OUTLETS ARTU SERIES
Features
Filtered outlet sockets for individual or cascade assembly.
Fast clamping of the cable thanks to the swivel flange.
Easy connection using the system to insert live product.
Minimum current losses.
Current flow through the C2 connector, SAT output.
Compatible with the main wall-covering plates on the market.
Technical specifications
Modelo
Model
Mod?le ARTU088 ARTU068
Ref. 2570 2571
Instalaci?n
Installation
Installation Indivudual
Single
Individuel
Tipo
Type
Type Filtrada
Filtered
Filtr?
Conector
Connector
Connecteu C1 IEC macho
IEC male
IEC m?le
C2 IEC hembra
IEC female
IEC f?melle
Rango de frecuencias
Frequency range
Bande passante C1 5 – 862 MHz 5 – 694 MHz
C2 950 – 2400 MHz
Atenuaci?n de conexi?n
Transfer loss
Att?nuation de connexion TV < 1 dB? < 1 dB? SAT < 1,5 dB? < 1,5 dB? Desacoplo C1-C2 C1-C2 Isolation D?couplage C1-C2 TV > 25 dB? > 25 dB?
SAT > 25 dB? > 25 dB?
Selectividad
Selectivity
S?lectivit? TV > 15 dB? > 20 dB?
SAT ? ?
P?rdidas de retorno
Return losses
Pertes de retour TV > 10 dB? > 10 dB?
SAT > 6 dB? > 6 dB?
Paso de corriente C2
DC transit C2
Passage de courant C2 VDC 24
mA? 500
Tono/Tone/Ton 22 kHz / DiSEqC
Garras de fijaci?n
Fixing hooks
Griffes de fixation S?
Yes
OuiMANUAL/DATASHEET
