Thrane LT-3100S GMDSS System – basic (90-102071)

In 2018, the IMO’s Maritime Safety Committee (MSC) acknowledged Iridium as
a Recognized Mobile Satellite Service (RMSS) for GMDSS, offering an
alternative to Inmarsat C. The LT-3100S GMDSS system, developed by Lars
Thrane A/S, stands as the sole Iridium GMDSS terminal currently available,
meeting all necessary standards and certification requirements for GMDSS
communication equipment (MED, Wheel mark).

The LT-3100S GMDSS system, designed for the rigors of maritime environments,
provides essential functionalities including Distress Alert, Safety Voice,
Maritime Safety Information (MSI), Ship Security Alert System (SSAS), and
Long Range Identification & Tracking (LRIT).

Performance-wise, this system offers both voice and data capabilities with
complete global coverage. Its components include a control unit, handset, and
antenna unit, linked by a single cable solution enabling up to 500 meters of
separation, facilitating optimal antenna placement for satellite
visibility.

With its robust design, operational temperature range from -40?C to +55?C
(-40?F to +131?F), and straightforward installation process, the LT-3100S
GMDSS system caters to primary satellite communication needs on vessels. It
encompasses voice, SMS, data, vessel tracking, and other Iridium services,
boasting competitive airtime rates.

The installation process is simplified with all necessary components
included in the package. The control unit offers flexible mounting options,
either bracket or flush mount, while the antenna unit can be easily installed
on poles of either 1.5″ or 2.0″ diameter. Additionally, the system
features a large 4.3″ TFT display for intuitive operation and a built-in
webserver for service and maintenance purposes.

With over 40 years of experience invested in its design and construction,
the LT-3100S GMDSS system ensures exceptional performance and adherence to
specifications.

Key Features Include:

SOLAS GMDSS Approval (Sea Areas A1, A2, and A3)
100% Global Distress Coverage
Distress Alert & Distress Call
Safety Calling & Safety Messaging
Maritime Safety Information (MSI)
Support for Remote Alarm Panels
Support for GMDSS Printer
Support for Bridge Alert Management (BAM)
Ship Security Alert System (SSAS)
Long Range Identification and Tracking (LRIT)
Voice, SMS, & Modem Data
Single Antenna Cable Solution (up to 500m)
High-performance GNSS/GPS Receiver
Webserver for Configuration and Maintenance
MED Module B+D, RED(CE), FCC, ISED, ROHS2, Iridium

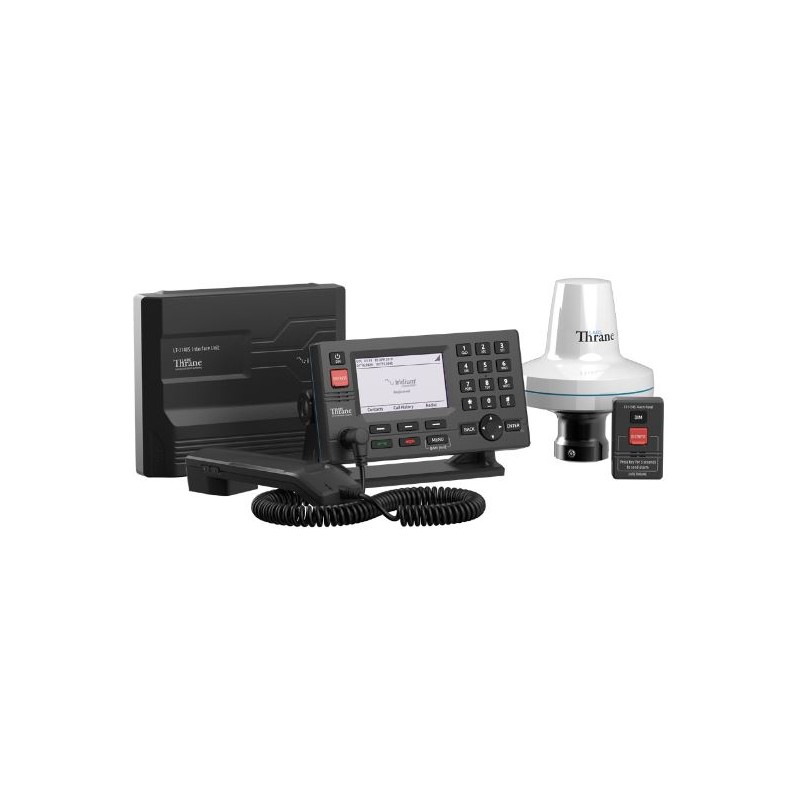

The system components include the LT-3110S Control Unit, LT-3120 Handset,
LT-3121 Cradle, and LT-3130 Antenna Unit, along with necessary mounting
accessories and manuals.

System consist of:

51-101812 LT-3110S Control Unit 1
51-100988 LT-3120 Handset 1
51-101181 LT-3121 Cradle 1
51-100989 LT-3130 Antenna Unit 1
91-100771 Bracket Mount, Control Unit 1
91-102118 Power Cable, 3m (4-pin) 1
95-102251 User & Installation Manual 1

Specifications:

LT-3110S Control Unit

Weight: 658 g (1.45 lbs)

Dimensions: 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in)

Operational Temperature: -15°C to +55°C (+5°F to +131°F)

IP Rating: IP32 (Dust and Water)

LT-3120 Handset Unit

Weight: 290 g (0.64 lbs)

Dimensions: 208.8 x 52.8 x 38.2 mm (8.22 x 2.08 x 1.50 in)

Operational Temperature: -15°C to +55°C (+5°F to +131°F)

IP Rating: IP32 (Dust and Water)

LT-3130 Antenna Unit

Weight: 687 g (1.51 lbs)

Dimensions: 151.1 x Ø 149.5 mm (5.95 x Ø 5.89 in)

Operational Temperature: -40°C to +55°C (-40°F to +131°F)

IP Rating: IP67 (Dust and Water)
