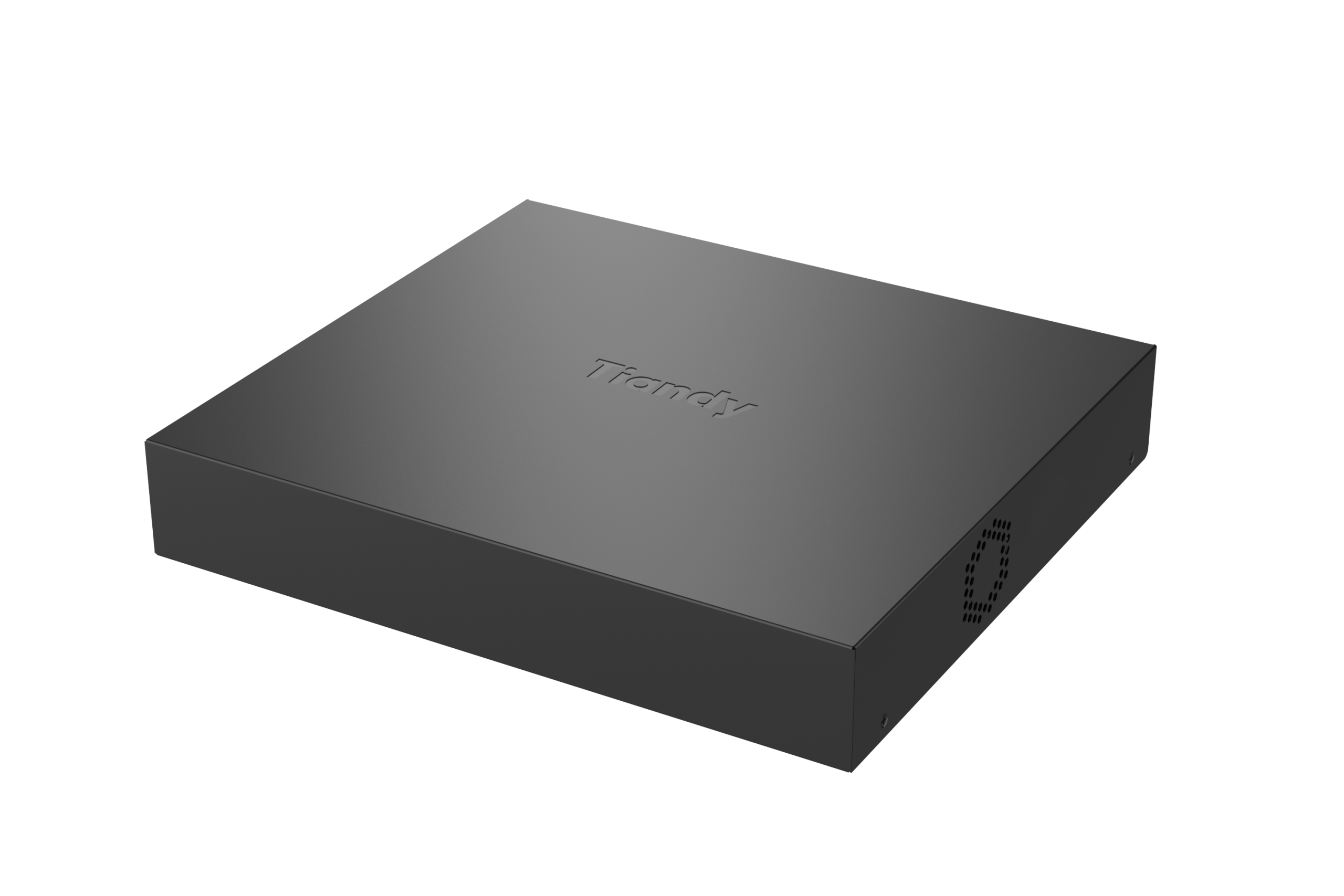

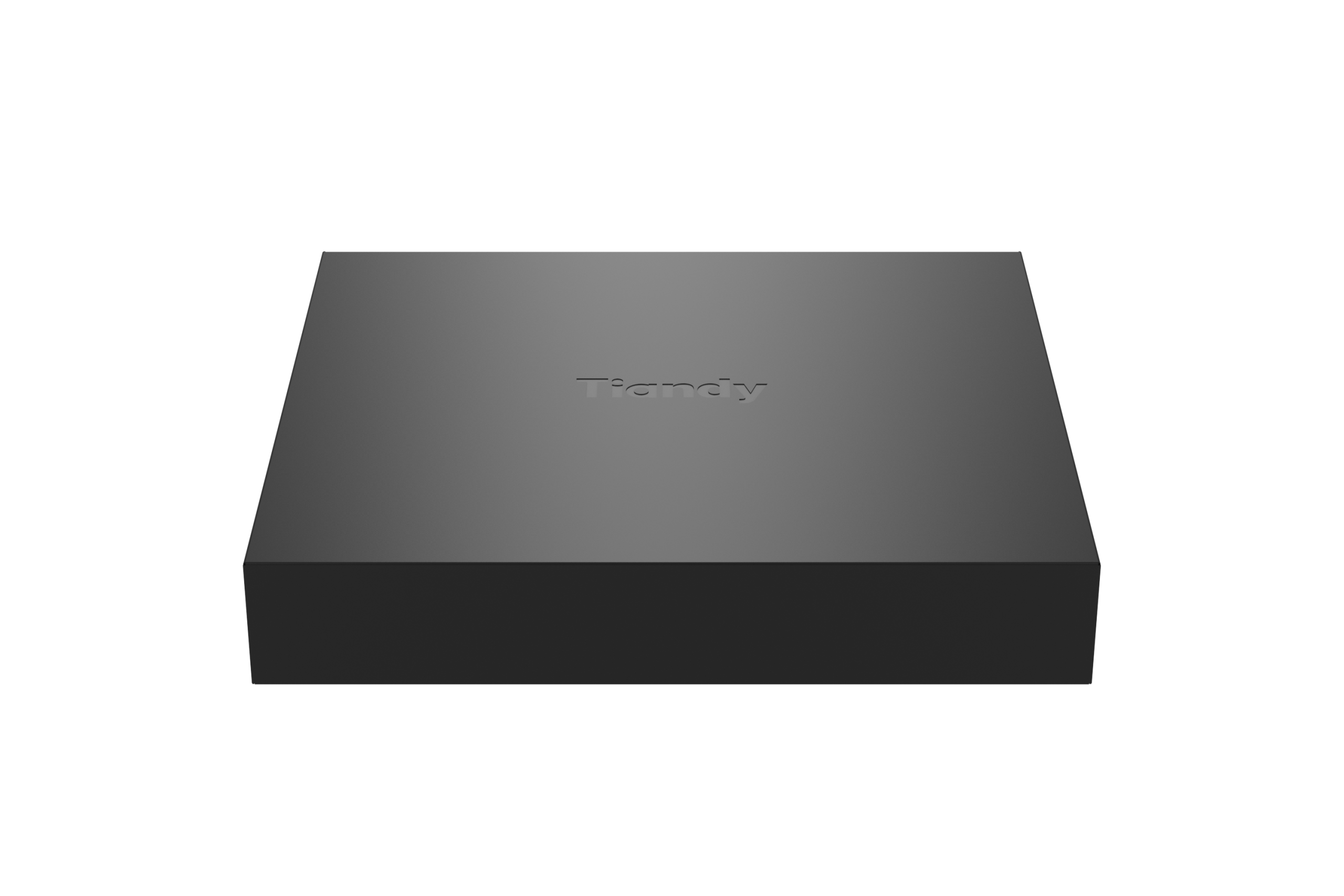

Tiandy 1HDD 20ch NVR

Product
Description

Video and Audio

Access Channel

20

Incoming Bandwidth

100Mbps

Outgoing Bandwidth

80Mbps

Resolution

8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Decoding Capability

8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5,
1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×20

Playback Decoding Capability

8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5,
1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×16

Third-party Camera Access

ONVIF(Profile S/T); RTSP

HDMI Output

HDMI: 1024×768(60Hz),( 68365793,720P)1280×720(50Hz/60Hz), 1280×800(60Hz),
1280×1024(60Hz), 1440×900(60Hz),( 68365794,1080P)1920×1080(50Hz/60Hz),(
68365795,2K)2560×1440(30Hz),( 68365796,4K)3840×2160(30Hz)

VGA Output

VGA: 1024×768(60Hz),( 68365797,720P )1280×720(50Hz/60Hz), 1280×800(60Hz),
1280×1024(60Hz),1440×900(60Hz),( 68365798,1080P)1920×1080(50Hz/60Hz)

Multi-screen Display

Simultaneous Output: VGA:
1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25 HDMI:
1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25

Audio Input

1-ch, 3.5mm

Compression Standard

Video Compression

S+265; H.265; S+264; H.264

Audio Compression

G.711A; G.711U; AAC; ADPCM_D

Stream Type

Video; Video & Audio

Network

Network Protocol

802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP;
IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP;
SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP

Moblie Client

EasyLive Plus (Android, iOS)

System Compatibility

ONVIF(Profile S/T/G); RTSP; CGI; SDK; P2P

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Recording Playback

Multi-channel Playback

16

Record Mode

Manual Recording; Alarm Recording; Schedule Recording

Storage Method

Local HDD

Backup

USB storage device, Network

Playback Function

Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full
Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay

Alarm

General Alarm

Motion Detection; Mask Alarm; Alarm Input(IPC)

Exceptions Alarm

Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space
alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart
of disk; Abnormal temperature of the disk; Hot-spare Exception; Voltage
Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk
Overload

Intelligent Analytics

AI by Camera

Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing;
Running; Parking; Heatmap; Loitering; Video Abnormal; Audio Abnormal; On Duty
Detection; Crowd Detection; Safety Helmet Detection; Electric Bicycle
Detection; People Counting; Link to Tracking; Smoke and Fire Detection;
Environmental Temperature Measurement; Face Detection; Human Body Temperature
Measurement; Smart Alarm; Human/Vehicle Classification

VCA Search

Early-warning Search; Behavior Search; Safety Helmet Search; Thermographic
Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search(Search by
face attributes)

VCA Report

Heatmap; People Counting; Face Statistics

Face Detection

Face Attributes Search

Gender; Age; Glasses; Face Mask; Body Temp.

Storage

HDD Capacity

Up to 10 TB capacity for each HDD

Disk Group

1 Disk Group

External Port

USB

2×USB2.0

HDMI

1×HDMI(supports up to 4K resolution output)

VGA

1×VGA

Network Interface

1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

SATA

1×SATA interface

General

UI Language

Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian;
Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese;
German; Ukrainian; Portuguese; Albanian; Indonesian; Greek

Power Supply

DC12V

Power Consumption

<10W(HDD not included, idling)

NetWeight

0.8 kg

GrossWeight

1.45 kg

Boundary Dimensions

250(L)229(W)45(H)mm

Package Dimensions

385(L)80(W)280(H)mm

Operating Temperature

-10?~+55? (+14?~+131?)

Operating Humidity

10%~90%RH (non-condensing)

Storage Temperature

-20?~+60? (-4?~+140?)

Package Kit

Network Video Recorder*1; Screw Pack*1; Mouse*1; Power Adapter(DC12V 3A)*1;
European Standard Power Cord*1; Instructions*1; Parts List*1
