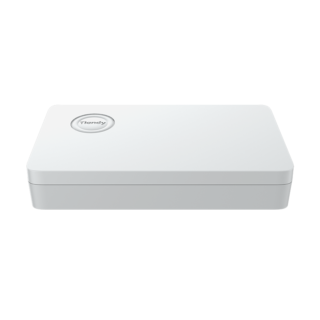

Tiandy 1HDD 4ch PSE NVR
**
Product
Description
Video and Audio
Access Channel
4
Incoming Bandwidth
60Mbps
Outgoing Bandwidth
40Mbps
Resolution
6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4,
720P(30fps)×4, 4CIF(30fps)×4
Playback Decoding Capability
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3,
720P(30fps)×4, 4CIF(30fps)×4
Third-party Camera Access
ONVIF(Profile S/T); RTSP
HDMI Output
HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz),
1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
VGA Output
VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz),
1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Multi-screen Display
Simultaneous Output: VGA: 1/2/3/4 HDMI: 1/2/3/4
Compression
Video
S+265; H.265; S+264; H.264
Audio
G711A; G711U; ADPCM_DIV4
Stream Type
Video; Video & Audio
Network
Network Protocol
ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP;
RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP
Mobile Phone Access
Android; iOS; P2P
System Compatibility
CGI; SDK
Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Record Playback
Multi-channel Playback
4
Record Mode
Alarm Recording; Schedule Recording
Storage Method
Local HDD
Backup
USB storage device
Playback Function
Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup
(Video Editing)/Digital Zoom
Alarm
General Alarm
Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm
Video Loss; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk
R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal
temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure; IP
Address Conflict; MAC Address Conflict
Intelligent Analytics
AI by Camera
Smart Motion
Storage
HDD Capacity
Up to 6 TB capacity for each HDD
External Port
USB
2×USB2.0
HDMI
1×HDMI
VGA
1×VGA
Network Interface
1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA
1×SATA interface
PoE
PoE Interface
4×RJ45, 10/100 Mbps self-adaptive Ethernet port
PoE Budget
28W
Power per PoE Port
28W
Standard
IEEE 802.3 af/at
General
UI Language
English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German;
Portuguese
Power Supply
DC48V
Power Consumption
<10W(without HDD&without PoE)
NetWeight
0.44kg
GrossWeight
0.81kg
Boundary Dimensions
200(L)200(W)43(H)mm
Package Dimensions
315(L)70(W)235(H)mm
Operating Temperature
-10?~+55? (+14?~+131?)
Operating Humidity
10%~90%RH (non-condensing)
Storage Temperature
-20?~+60? (-4?~+140?)
Package Kit
Network Video Recorder; Screw Pack; Mouse; European Standard Power Adapter
(DC48V 1A)
