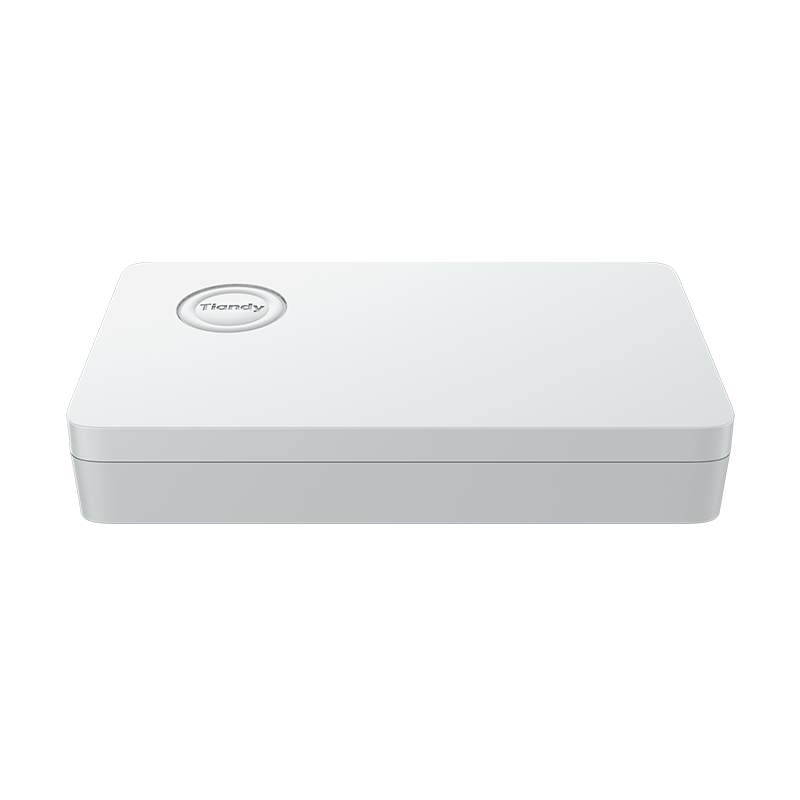

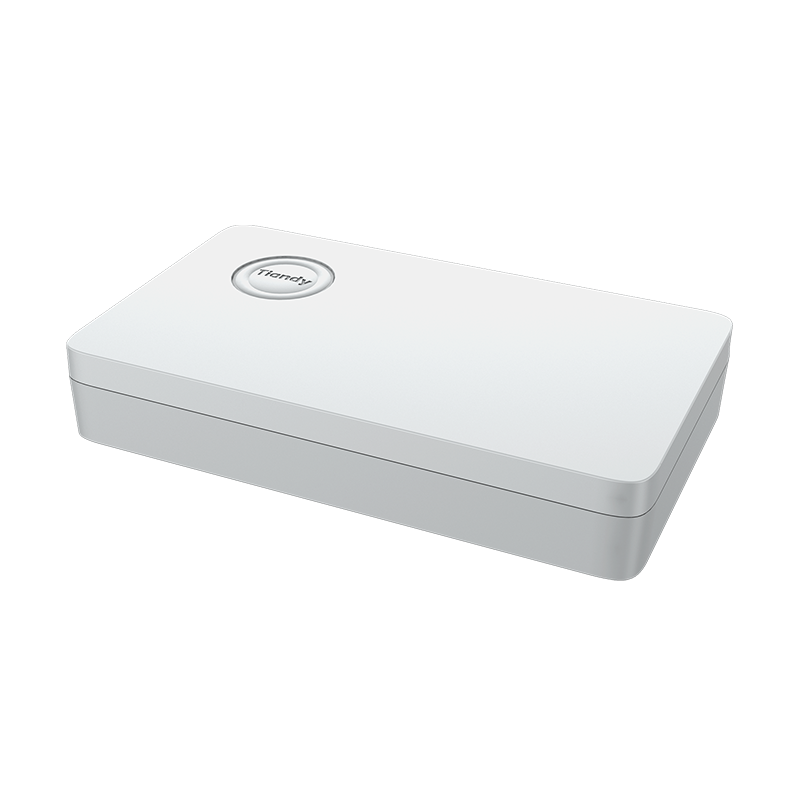

Tiandy 1HDD 5ch NVR
**
Product
Description
Video and Audio
Access Channel
5
Incoming Bandwidth
60Mbps
Outgoing Bandwidth
40Mbps
Resolution
5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability
5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2, 720P(30fps)×5,
4CIF(30fps)×5
Playback Decoding Capability
5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2,
720P(30fps)×4
Third-party Camera Access
ONVIF(Profile S/T); RTSP
HDMI Output
HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz),
1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Compression
Video
S+265; H.265; S+264; H.264
Audio
G711A; G711U; ADPCM_DIV4
Stream Type
Video; Video & Audio
Network
Network Protocol
ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP;
RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP
Mobile Phone Access
Android; iOS; P2P
System Compatibility
CGI; SDK
Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Record Playback
Multi-channel Playback
4
Record Mode
Alarm Recording; Schedule Recording
Storage Method
Local HDD
Backup
USB storage device
Playback Function
Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup
(Video Editing)
Alarm
General Alarm
Motion Detection; Mask Alarm
Exceptions Alarm
Video Loss; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk
R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal
temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure; IP
Address Conflict; MAC Address Conflict
Intelligent Analytics
AI by Camera
Smart Motion
Storage
HDD Capacity
Up to 6 TB capacity for each HDD
External Port
USB
2×USB2.0
HDMI
1×HDMI
Network Interface
1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA
1×SATA interface
General
UI Language
English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German;
Ukrainian; Portuguese
Power Supply
DC12V
Power Consumption
<10W(without HDD&without PoE)
NetWeight
0.22kg
GrossWeight
0.47kg
Boundary Dimensions
203(L)120(W)39(H)mm
Package Dimensions
215(L)55(W)220(H)mm
Operating Temperature
-10?~+45? (+14?~+113?)
Operating Humidity
10%~90%RH (non-condensing)
Storage Temperature
-20?~+60? (-4?~+140?)
Package Kit
Network Video Recorder; Screw Pack; Mouse; European Standard Power Adapter
(DC12V 1.5A)
