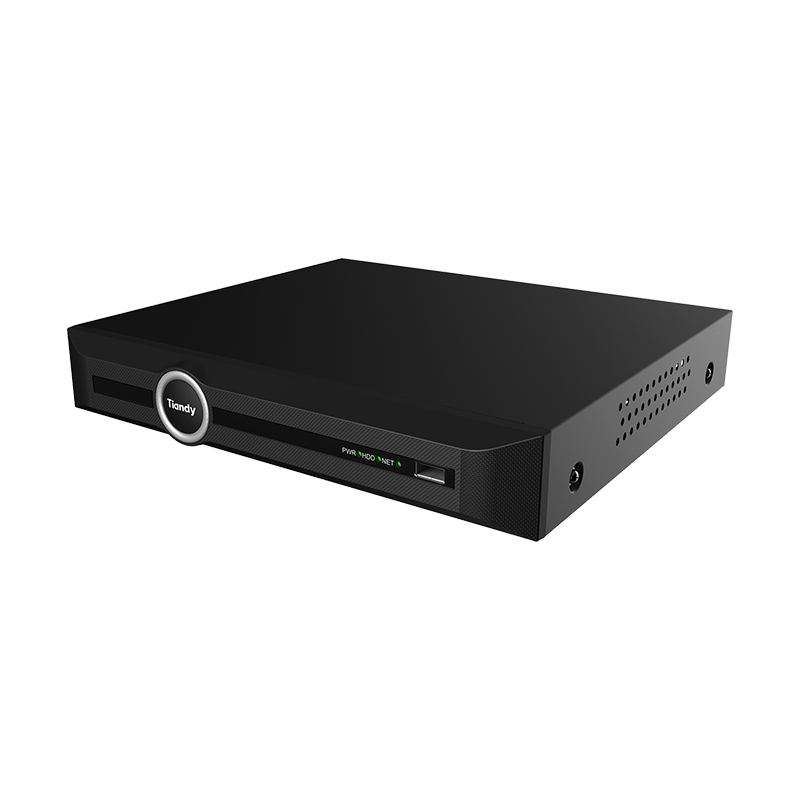

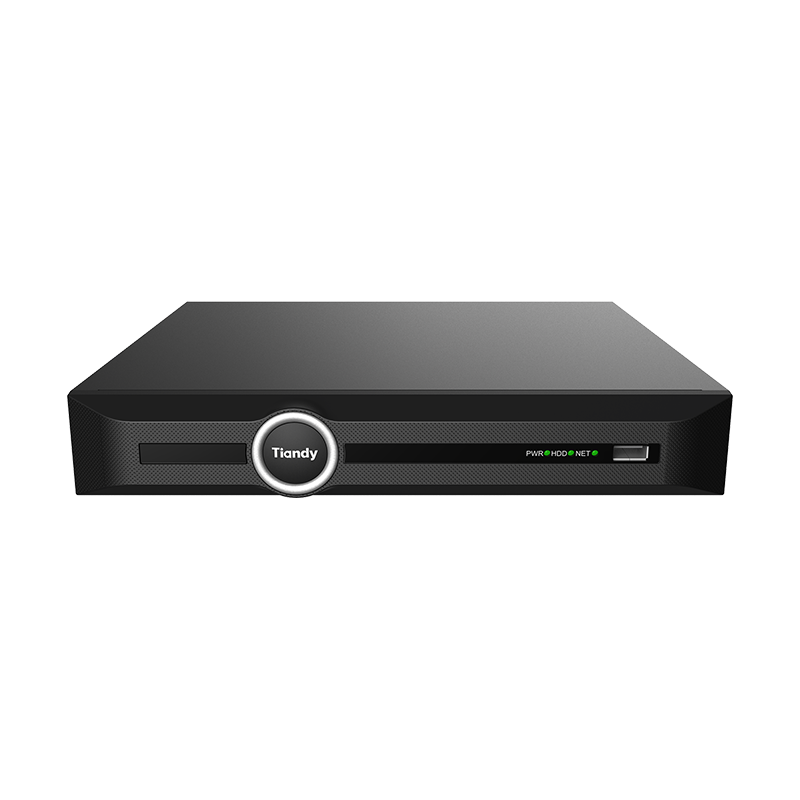

Name: Tiandy 1HDD 5ch PSE NVR | +254720548999
Brand: Tiandy

Product
Description
Video and Audio

Access Channel 5
Incoming Bandwidth 60Mbps
Outgoing Bandwidth 40Mbps

Resolution 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability 8MP(30fps)×1, 6MP(30fps)×2, 5MP(30fps)×2,
4MP(30fps)×3, 3MP(30fps)×4, 1080P(30fps)×5, 720P(30fps)×5,
4CIF(30fps)×5
Playback Decoding Capability 8MP(30fps)×1, 6MP(30fps)×2, 5MP(30fps)×2,
4MP(30fps)×3, 3MP(30fps)×4, 1080P(30fps)×4, 720P(30fps)×4,
4CIF(30fps)×4
Third-party Camera Access ONVIF(Profile S/T); RTSP
HDMI Output HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz),
1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz),
(4K)3840×2160(30Hz)
VGA Output VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz),
1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Multi-screen Display Simultaneous Output:
VGA: 1/2A/2B/3/4/5/6
HDMI: 1/2A/2B/3/4/5/6
Audio Input 1-ch, 3.5mm
Audio Output 1-ch, RCA (Linear, 1 K?)
Two-Way Audio 1-ch, 3.5mm, using the audio input
Compression Standard

Video Compression S+265; H.265; S+264; H.264
Audio Compression G.711A; G.711U; ADPCM_D
Stream Type Video; Video & Audio
Network

Network Protocol 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; HTTPS;
ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; RTCP; RTP; RTSP; SMB/CIFS; SMTP;
SRTP; SSH; TLSv1.2; TCP; UDP; Unicast; UPnP
Mobile Client EasyLive Plus (Android, iOS)
System Compatibility RTSP; CGI; SDK; P2P
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Recording Playback

Multi-channel Playback 4
Record Mode Manual Recording; Alarm Recording; Schedule Recording
Storage Method Local HDD
Backup USB storage device, Network
Playback Function Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards
30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay
Dual Stream Record Yes
Alarm

General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm Video Loss; Network Disconnected; No Disk; Illegal Access;
Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal;
Abnormal found in smart of disk; Abnormal temperature of the disk; PoE
Overload; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address
Conflict; Disk Overload
Intelligent Analytics

AI by Camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object
Missing; Running; Parking; Loitering; Video Abnormal; Audio Abnormal; On Duty
Detection; Crowd Detection; Electric Bicycle Detection; Face Detection; Smart
Alarm; Human/Vehicle Classification
VCA Search Early-warning Search; Face Search(Search by face
attributes)
VCA Report Face Statistics
Face Detection

Face Attributes Search Gender; Age; Glasses; Face Mask
Storage

HDD Capacity Up to 10 TB capacity for each HDD
Disk Group 1 Disk Group
External Port

USB 2×USB2.0
HDMI 1×HDMI(supports up to 4K resolution output)
VGA 1×VGA
Network Interface 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA 1×SATA interface
Alarm I/O 1-ch, relay output, 1A, 24VDC
PoE

PoE Interface 4×RJ45, 10/100 Mbps self-adaptive Ethernet port
PoE Budget 45W
Power per PoE Port 30W
Standard IEEE 802.3 af/at
General

UI Language Simple Chinese; Traditional Chinese; English; Spanish; Korean;
Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese;
German; Ukrainian; Portuguese; Albanian; Indonesian; Greek
Power Supply DC48V
Power Consumption <10W(without HDD&without PoE)
NetWeight 0.95kg
GrossWeight 1.6kg
Boundary Dimensions 255(L)238(W)45(H)mm
Package Dimensions 385(L)80(W)280(H)mm
Operating Temperature -10?~+55? (+14?~+131?)
Operating Humidity 10%~90%RH (non-condensing)
Storage Temperature -20?~+60? (-4?~+140?)
Package Kit Network Video Recorder*1; Screw Pack*1; Mouse*1; Power
Adapter(DC48V 1.35A)*1; European Standard Power Cord*1; Instructions*1; Parts
List*1
