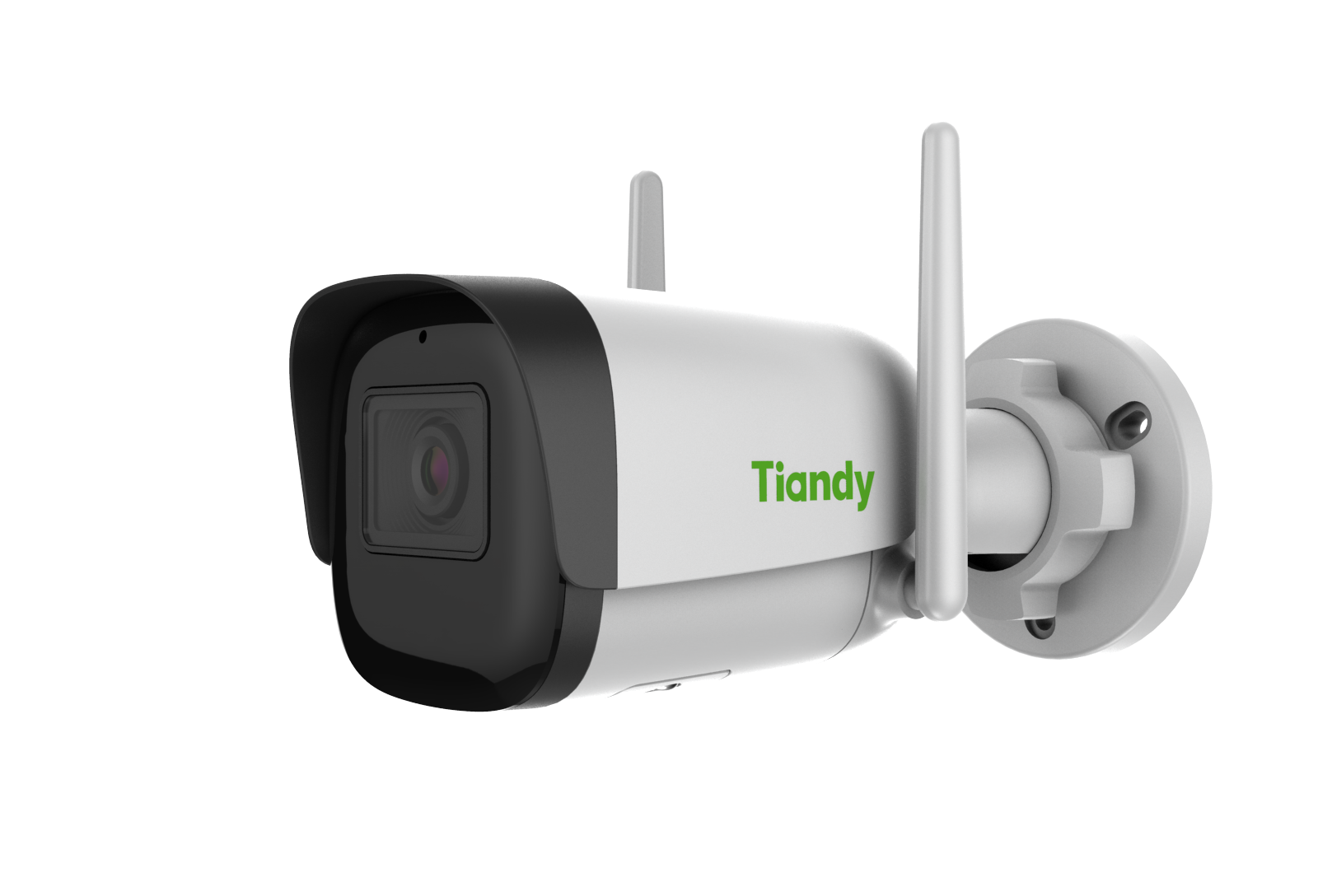

Name: Tiandy 2MP Fixed IR Wi-Fi Bullet Camera | +254720548999
Brand: Tiandy

Product
Description
Camera

Image Sensor 1/2.8″CMOS
Min.
Illumination Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto Switch (ICR)
Smart IR Yes
WDR DWDR
S/N >39dB
Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R)
Lens

Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F2.0
Aperture Type Fixed
Field of View 99.7°(H); 55.1°(V); 113.9°(D)
DORI Distance Detect:38.6m
Observe:15.3m
Recognize:7.7m
Identify:3.8m
Illuminator

IR LEDs 2
IR Distance Up to 50m
Wavelength 850nm
Compression Standard

Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz/32kHz/48kHz

Max. Resolution 2MP,1920×1080@30fps
Main Stream PAL:25fps(1920×1080, 1280×720, 640×480, 704×576)
NTSC:30fps(1920×1080, 1280×720, 640×480, 704×480)
Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight
Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI 8 rectangular static areas
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum
of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48;
Lattice
Privacy Mask 4 black static areas
Defog Yes
Feature

General Alarm Motion Detection; Mask Alarm
Exceptions Alarm Disk Full; Disk R/W Error; IP Address Conflict
Linkage Method Trigger Recording; Trigger Capture; Notify Surveillance
Center
Rules of Behavior Analyse In 1 Scene 2
Network

ANR Yes
Protocols RTSP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy
DDNS; NTP; TLS v1.2; QoS; IPv4; SSH; Unicast; ARP; FTP
System Compatibility P2P(Mutually exclusive with Onvif);
ONVIF(Profile S/T) ; SDK; CGI; Milestone
Remote Connection ?2
Client Easy7 VMS
Mobile Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Wi-Fi

Transmission Distance Up tp 50m( based on actual environment)
Wireless Standard IEEE802.11b/ 802.11g/802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz
Wi-Fi Security WPA-PSK/WPA2-PSK
Interface

Communication Interface 1×RJ-45 (10/100 Base-T)
Built-in Mic 1×Built-in Mic
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
RTC Yes
General

Web Client Language 19 languages
Simple Chinese/Traditional
Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -40?~65?(-40?~149?)
Operating Humidity ?95%RH
Storage Temperature -40?~65?(-40?~149?)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 6W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 161(L)68(W)66(H)mm
Package Dimensions 215(L)95(W)120(H)mm
GrossWeight 0.47kg
