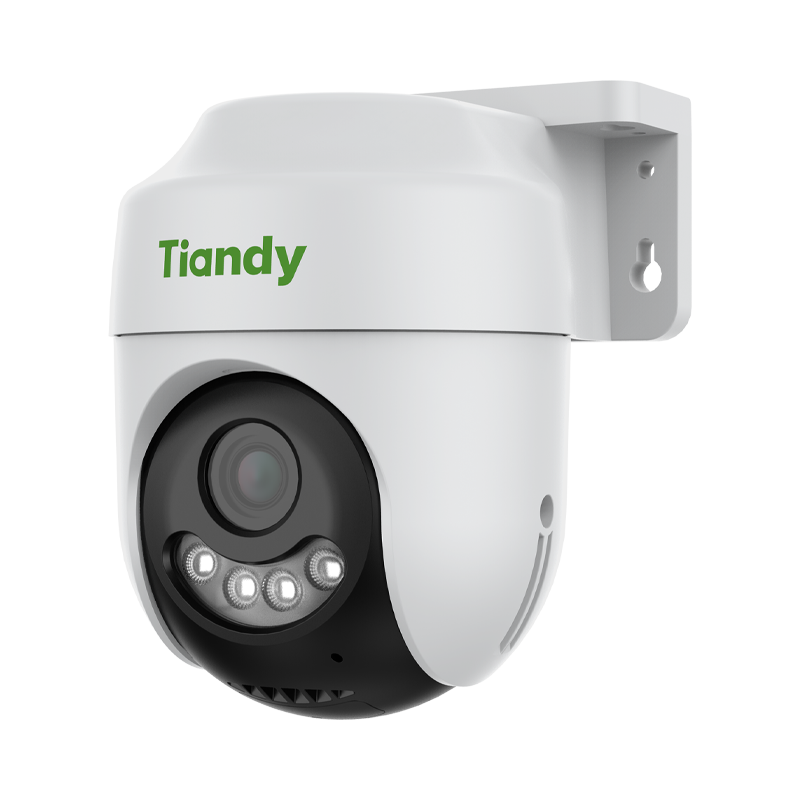

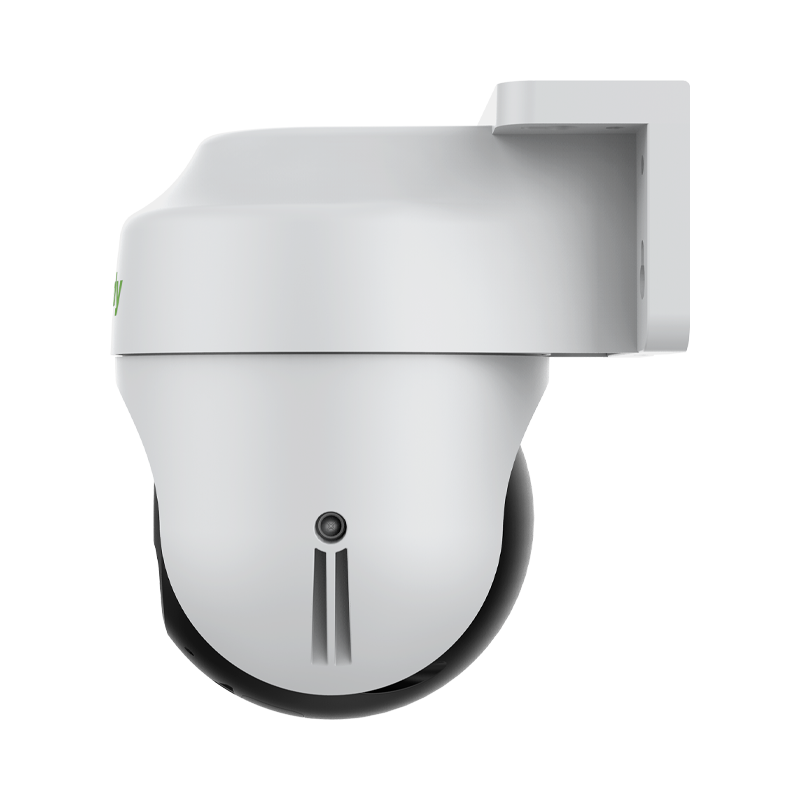

Tiandy 3MP Fixed Color Maker Wi-Fi PT Camera

Product
Description
Camera

Image Sensor 1/2.8″CMOS
Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto Switch (ICR)
Smart IR Yes
WDR DWDR
S/N >48dB
Angle Adjustment 0~345°; 0~90°(T)
Lens

Lens Type Fixed focal lens
Focal Length 4mm
Lens Mount M12
Aperture Range F1.6
Aperture Type Fixed
Field of View 86.8°(H); 46.1°(V); 99.7°(D)
DORI Distance Detect: 65.31m
Observe: 25.92m
Recognize: 13.06m
Identify: 6.53m

Pan&Tilt

Pan Speed 30°/s
Tilt Speed 25°/s
Preset 255
Illuminator

IR LEDs 4
IR Distance Up to 50m
Wavelength 850nm
White LEDs 4
Whitelight Distance 15m
Red and Blue Alarm Flash Yes
Compression Standard

Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~4Mbps
Audio Compression G.711A/G.711U
Audio Sampling Rate 8kHz/16kHz

Max. Resolution 3MP,2304×1296@20fps
Main Stream PAL:20fps(2304×1296, 1920×1080, 1280×720, 640×480,
704×576)
NTSC:20fps(2304×1296, 1920×1080, 1280×720, 640×480, 704×480)
Sub Stream PAL:20fps(704×576, 704×288, 640×360, 352×288, 800×448)
NTSC:20fps(704×480, 704×240, 640×360, 352×240, 800×448)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight
Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum
of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48;
Lattice
Privacy Mask 4 black static areas
Defog Yes
Feature

Exceptions Alarm Disk Full; Disk R/W Error; IP Address Conflict; Network
Disconnection
Linkage Method Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger
Capture
Video Analytics Smart Alarm
Auto-Tracking Yes
Network

ANR Yes
Protocols RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH;
Unicast
System Compatibility ONVIF(Profile S/T) ; SDK; CGI;
Milestone
Remote Connection ?2
Client Easy7 VMS
Mobile Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Wi-Fi

Transmission Distance Up tp 30m( based on actual environment)
Wireless Standard IEEE802.11b/ 802.11g/802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz
Wi-Fi Security WPA-PSK/WPA2-PSK
Interface

Communication Interface 1×RJ-45 (10/100 Base-T)
Built-in Mic 1×Built-in Mic
Built-in Speaker 1×Built-in Loudspeaker
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 256GB
General

Web Client Language 3 languages
Simple Chinese/English/Vietnamese
Operating Temperature -30?~60?(-22?~140?)
Operating Humidity ?95%RH
Storage Temperature -30?~60?(-22?~140?)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 12W
Protection Surge4000V; ESD6000V; IP66
Boundary Dimensions 104.5(L)125.5(W)140(H)mm
Package Dimensions 135(L)135(W)190(H)mm
GrossWeight 0.53kg
