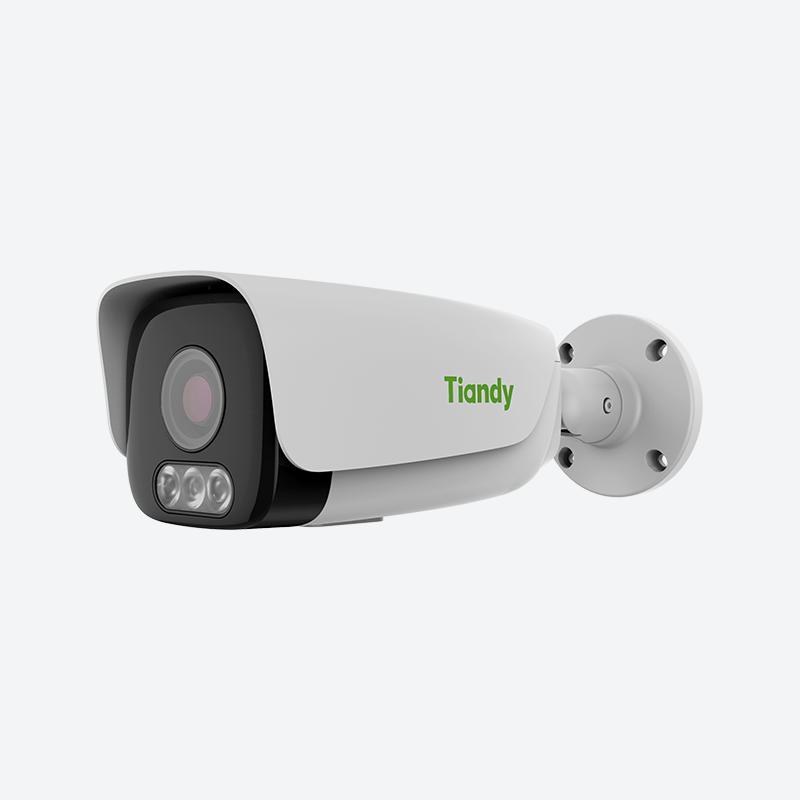

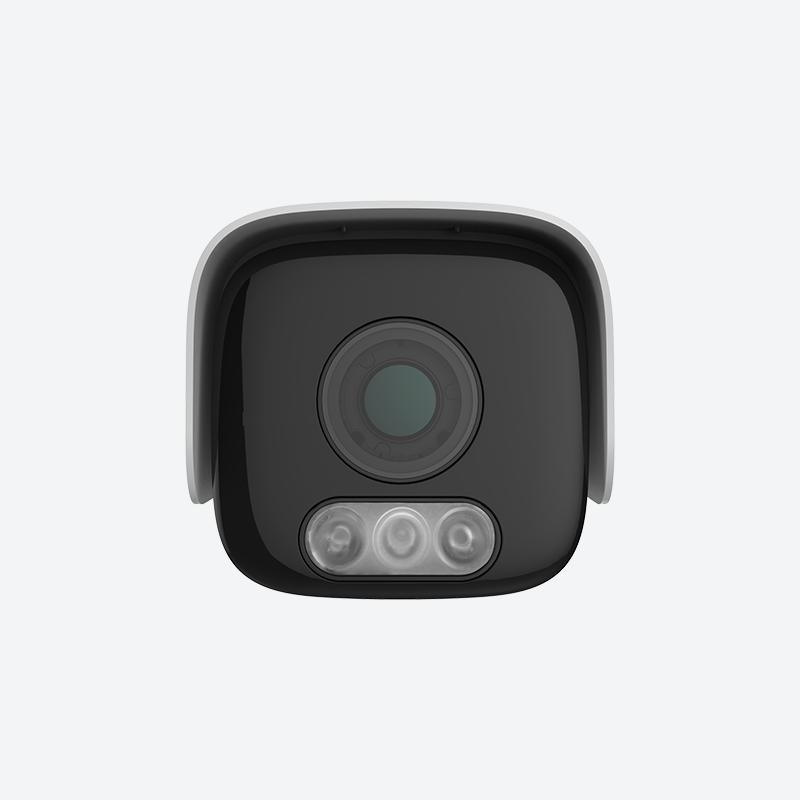

Tiandy 4MP Motorized Color Maker LPR Bullet Camera

Product
Description
Camera

Image Sensor 1/1.8″CMOS
Min.
Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto Switch (ICR)
Smart IR Yes
WDR 120dB
S/N >43dB
Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R)
Lens

Lens Type Motorized
Focal Length 2.8~12mm
Lens Mount ?14
Aperture Range F1.3~F2.2
Aperture Type Auto(DC-Iris)
Field of View 49.4°~105.1°(H); 27.9°~59.2°(V); 56.6°~117.9°(D)
DORI Distance Detect:38m~165m
Observe:15m~65m
Recognize:7.7m~33m
Identify:3.9m~16.5m
Illuminator

IR LEDs 4
IR Distance Up to 30m
Wavelength 850nm
White LEDs 3
Whitelight Distance 40m
Compression Standard

Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32k~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8kHz/32kHz/48kHz

Max. Resolution 4MP,2688×1520@30fps
Main Stream PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC:30fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)
Third Stream PAL:25fps(1280×720, 704×576, 640×360, 704×288, 352×288)
NTSC:30fps(1280×720, 704×480, 640×360, 704×240, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight
Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI 8 rectangular static areas
OSD Overlay of additional characters in 5 regions, 1 line, with a maximum
of 127 characters or 42 Chinese characters per region;
16*16/32*32/48*48/64*64/96*96; Vector/Lattice
Picture Overlay 1*200×200 size BMP 24 color bit image overlay
Privacy Mask 4 black static areas
Defog Yes
Feature

General Alarm Motion Detection; Mask Alarm; Alarm Input
Exceptions Alarm Voltage Alarm; Disk Full; Disk R/W Error; IP Address
Conflict; MAC Address Conflict; FTP Server Exception ; Network
Disconnection
Linkage Method Send Email; Trigger Sound; Trigger Warmlight; Trigger
Recording; Trigger Capture; Notify Surveillance Center; Alarm Output
Video Analytics Human/Vehicle Classification; Tripwire; Double Tripwire;
Perimeter; Object Abandon; Object Missing; Heatmap; Loitering; Running;
People Counting; Crowed Detection; On Duty Detection; Video Abnormal; Audio
Abnormal
Rules of Behavior Analyse In 1 Scene 7
Early Warning(EW) Yes
Network

ANR Yes
Protocols RTSP; RTMP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; IGMP; SNMP
v1v2v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS;
IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; FTP; SFTP
System Compatibility ONVIF(Profile S/T/G/M) ; SDK; CGI;
Milestone
Remote Connection ?7
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface

Communication Interface 1×RJ-45 (10/100 Base-T)
Audio I/O 1×input, two-core , max. input amplitude:3.3 Vpp, input
impedance:1 K?, interface type:non-equilibrium; 1×output, two-core, max.
output amplitude:3.3 Vpp, output impedance:100 ?, interface type:
non-equilibrium
Alarm I/O 2×input,TTL,3mA,3.3VDC; 1×output,relay,1A,24VDC
Built-in Mic 1×Built-in Mic
Built-in Speaker 1×Built-in Loudspeaker
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
RTC Yes
Additional Interfaces RS-485
General

Web Client Language 19 languages
Simple Chinese/Traditional
Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -35?~65?(-31?~149?)
Operating Humidity ?95%RH
Storage Temperature -35?~65?(-31?~149?)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 14W; PoE:IEEE 802.3at,Max. 15.5W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 330(L)114(W)107(H)mm
Package Dimensions 360(L)150(W)170(H)mm
GrossWeight 1.86kg
