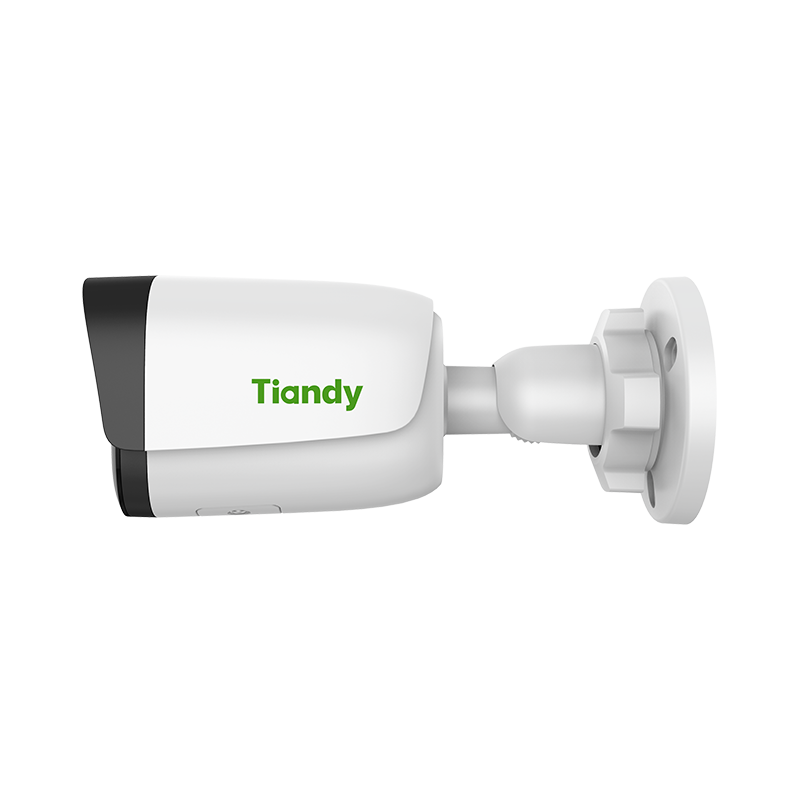

Name: Tiandy 5MP Fixed Color Maker Bullet Camera | +254720548999
Brand: Tiandy

Product
Description
Camera

Image Sensor 1/2.7″CMOS
Min.
Illumination Color:0.0004Lux@(F1.0,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night Fixed IR-cut
WDR 120dB
S/N >39dB
Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R)
Lens

Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.0
Aperture Type Fixed
Field of View 109°(H); 59°(V); 125.4°(D)
DORI Distance Detect:56m
Observe:22m
Recognize:11m
Identify:5.6m
Illuminator

White LEDs 2
Whitelight Distance 15m
Compression Standard

Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz/32kHz/48kHz

Max. Resolution 5MP,3072×1728@30fps
Main Stream PAL:25fps(3072×1728, 2688×1520, 2560×1440, 2304×1296,
1920×1080, 1280×720)
NTSC:30fps(3072×1728, 2688×1520, 2560×1440, 2304×1296, 1920×1080,
1280×720)
Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight
Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI 8 rectangular static areas
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum
of 48 characters or 16 Chinese characters per region;
16*16/32*32/48*48/64*64/96*96; Lattice
Privacy Mask 4 black static areas
Defog Yes
Feature

General Alarm Motion Detection; Mask Alarm
Exceptions Alarm Disk Full; Disk R/W Error; IP Address Conflict; Network
Disconnection
Linkage Method Trigger Recording; Trigger Capture; Notify Surveillance Center
Video Analytics Human/Vehicle Classification; Tripwire; Perimeter
Rules of Behavior Analyse In 1 Scene 2
Network

ANR Yes
Protocols RTSP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; SNMP v1v2v3; DHCP;
DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH; Unicast; Multicast; ARP;
FTP
System Compatibility P2P(Mutually exclusive with Profile G);
ONVIF(Profile S/T/G) ; SDK; CGI; Milestone
Remote Connection ?2
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface

Communication Interface 1×RJ-45 (10/100 Base-T)
Built-in Mic 1×Built-in Mic
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
RTC Yes
General

Web Client Language 20 languages
Simple Chinese/Traditional
Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian/Greek
Operating Temperature -35?~65?(-31?~149?)
Operating Humidity ?95%RH
Storage Temperature -35?~65?(-31?~149?)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 6W; PoE:IEEE 802.3af,Max. 7W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 161(L)68(W)66(H)mm
Package Dimensions 215(L)95(W)120(H)mm
GrossWeight 0.44375kg
