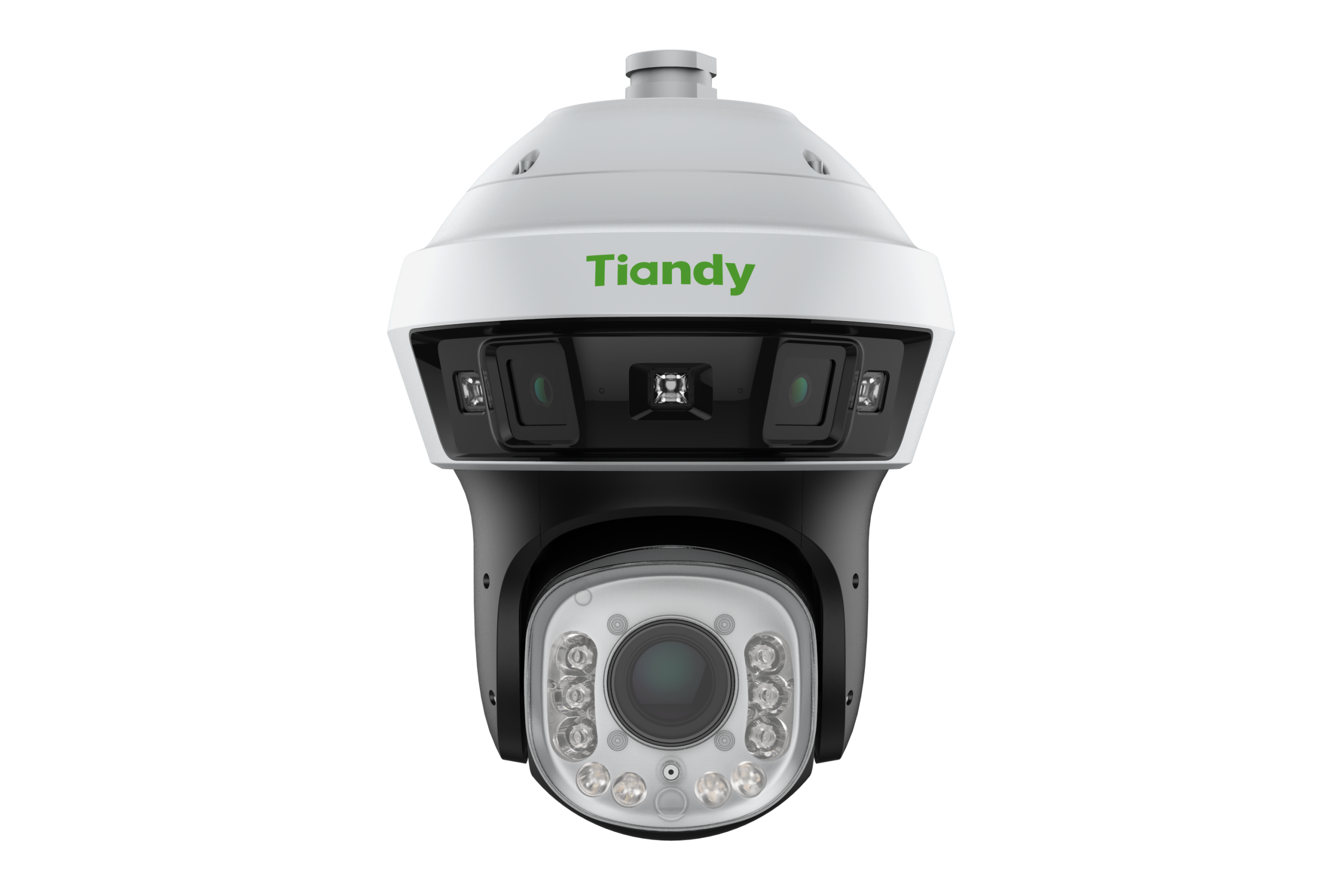

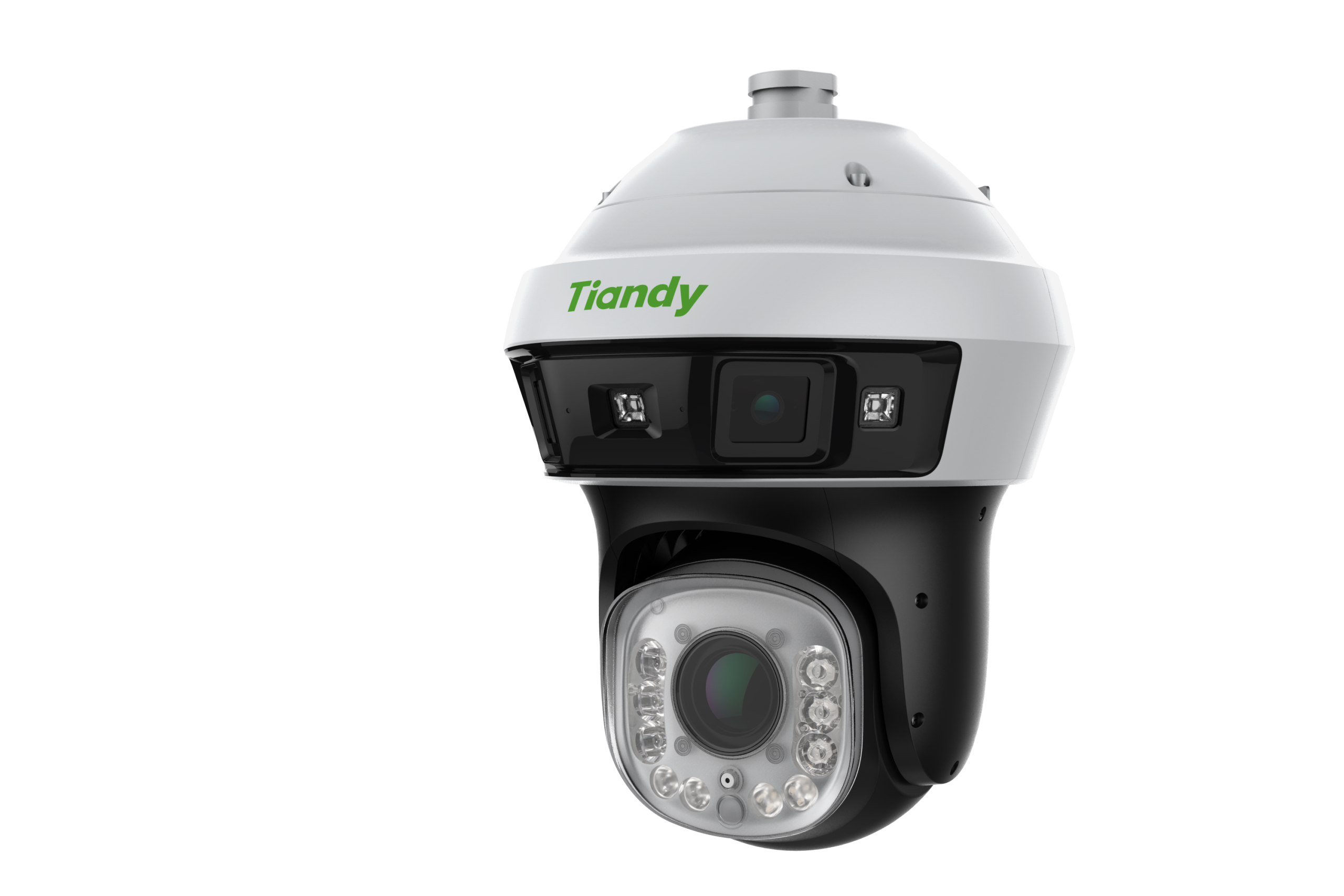

Tiandy 6MP 25X Polar Day Panoramic AEW PTZ Camera

Product
Description
Camera

Image Sensor Panorama:1/1.8″CMOS
Detail:1/2.7″CMOS
Min. Illumination Panorama:0.0001lux
Detail:0.001Lux
Shutter Time 1s~1/100000s
Day&Night Panorama:Fixed IR-cut
Detail:IR-cut filter with auto Switch (ICR)
Smart IR Yes
WDR Panorama:DWDR
Detail:120dB
S/N Panorama:42dB
Detail:39dB
Lens

Focal Length Panorama:3.3mm
Detail:4.8mm~120mm
Optical Zoom Panorama:N/A
Detail:25X
Digital Zoom Panorama:N/A
Detail:16X
Zoom Speed Panorama:N/A
Detail:?5s
Aperture Range Panorama:F1.0
Detail:F1.67~F3.67
Aperture Type Panorama:Fixed
Detail:Auto(P-Iris)
Field of View Panorama: 190°±10°(H), 75°±10°(V)
Detail: 58°~2.8°(H), 33.9°~1.7°(V), 64.8°~3.3°(D)
Focus Control Panorama:N/A
Detail:Auto/Semi-auto/Manual
Close Focus Distance Panorama:2000mm
Detail:500mm~5000mm
DORI Distance Panorama:
Detect:45.5m
Observe:18.1m
Recognize:9.1m
Identify:4.6m
Detail:
Detect:1980m
Observe:785m
Recognize:396m
Identify:198m
Pan&Tilt

Pan Range 0~360°(P)
Pan Speed Manual Speed:0.1°?200°/s
Preset Speed:240°/s
Tilt Range -16°~90°(T) (Default -3°~90°(T))
Tilt Speed Manual Speed:0.1°?120°/s
Preset:180°/s
3D Position Yes
Preset 500
Cruise 16(up to 32 presets per cruise)
Scan 8
Pattern 8,each with 600s memory or 1000 orders
Scheduled Task Preset,Cruise,Scan,Pattern
North Point Yes(Manual setting)
Power-off Memory Yes
Illuminator

IR LEDs Panorama:N/A
Detail:10
IR Distance Panorama:N/A
Detail:150m
Wavelength Panorama:N/A
Detail:850nm
IR Irradiation Angle Panorama:N/A
Detail:Yes
White LEDs Panorama:3
Detail:4
Whitelight Distance Panorama:30m
Detail:30m
Laser Panorama:N/A
Detail:N/A
Laser Distance Panorama:N/A
Detail:N/A
Compression Standard

Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8kHz/32kHz/48kHz

Max. Resolution Panorama:3840×1568@30fps
Detail:2560×1440@30fps
Main Stream Panorama:
PAL:25fps(3840×1568,3632×1480)
NTSC:30fps(3840×1568,3632×1480)
Detail:
PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720)
NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720)
Sub Stream Panorama:
PAL:25fps(1200×488,960×392)
NTSC:30fps(1200×488,960×392)
Detail:
PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fps(704×480,704×240,352×240,640×360)
Third Stream Panorama:N/A
Detail:
PAL:25fps(704×576,704×288,352×288,640×480)
NTSC:30fps(704×480,704×240,352×240,640×480)
BLC Yes
HLC Yes
AGC Yes
3DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight
Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI Panorama:7 fixed rectangles and 1 dynamic tracking focus area for each
main and secondary stream
Detail:7 rectangular 3D fixed focus areas,supporting 1 rectangular dynamic
tracking ROI
OSD Panorama:
5 regions(Each region can have a maximum of 127 characters ,up to 5
lines)
Detail:
5 regions(Each region can have a maximum of 127 characters ,up to 5 lines);
Panorama:
16*16/32*32/48*48/64*64/96*96/adaptable size
Detail:
16*16/32*32/48*48/64*64/96*96/adaptable size; Vector/Lattice
Defog Yes
Flip Panorama:N/A
Detail:Normal/Horizontal Mirror/Vertical Mirror/Inverted Flip
Regional Exposure Panorama:N/A
Detail:Yes
Regional Focus Panorama:N/A
Detail:Yes
Demist Yes
Privacy Mask Panorama:8 regions
Detail:24 regions(Up to 4 blocks in the same scene)
Feature

General Alarm Panorama:Motion Detection
Detail:Motion Detection; Panorama:Mask Alarm
Detail:Mask Alarm; Alarm Input
Exceptions Alarm Disk Full; Disk R/W Error; Recording Exception; IP Address
Conflict; MAC Address Conflict; FTP Server Exception ; Network cable
disconnected
Linkage Method Send Email; Trigger Sound; Trigger Warmlight; Trigger
Recording; Trigger Capture; Notify Surveillance Center; Alarm Output
Video Analytics Human/Vehicle Classification; Panorama:Tripwire
Detail:Tripwire; Double Tripwire; Perimeter; Panorama:N/A
Detail:Object Abandon; Panorama:N/A
Detail:Object Missing; Panorama:Heatmap
Detail:N/A; Panorama:N/A
Detail:Loitering; Panorama:N/A
Detail:Running; Panorama:N/A
Detail:Parking; Panorama:N/A
Detail:People Counting; Panorama:N/A
Detail:Crowd Detection; Panorama:N/A
Detail:Safety Helmet Detection; Panorama:N/A
Detail:On Duty Detection; Panorama:Video Abnormal
Detail:Video Abnormal; Panorama:Audio Abnormal
Detail:N/A
Auto Early Warning(AEW) Yes
Auto-Tracking Yes
Face Mode Panorama:N/A
Detail:Face Capture
Face Capture Performance 60; 19; ?60m; Detect up to 32 faces at the same
scene; Capture up to 16 faces at the same scene; Capture rate ?99%(continuous
scene with 10 people or less); Gender 85%,age (±5) 85%,mask 90%,glasses
85%,beard 80% (less than 10 people)
Network

ANR Yes
Protocols RTSP; RTMP; HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP
v1v2v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1x; QoS;
IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; ARP; RTP; SRTP; FTP; SFTP
System Compatibility P2P; ONVIF(Profile S/T/G/M); SDK; CGI; RTSP;
RTMP; HTTP PUSH
Remote Connection ?7
User/Host 32users,
Level 4:Admin/Browse/Browse+Control/Browse+Control+Set
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface

Communication Interface 1*RJ45 (10/100/1000Base-T)
Audio I/O 1*Input Impedance 1k?,2.0~2.4Vp-p; 1*Output Impedance 600?
Alarm I/O 2*Switching; 1*Switching,Voltage?DC24V,Current?1A
Built-in Speaker 1,4?4W
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
General

Web Client Language 19 languages:
Simplified Chinese/English/Traditional Chinese/Spanish/Italian/Korean/Turkish/Russian/Thai/Polish/French/Dutch/Hebrew/Vietnamese/Arabic/German/Ukrainian/Portuguese/Albanian
Operating Temperature -30?~65?(-22?~149?)
Operating Humidity ?95%RH
Storage Temperature -30?~65?(-22?~149?)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply AC24V±25%DC24V±10%; PoE:IEEE 802.3bt
Power Consumption 29W(IR OFF) ; 55W(IR ON)
Protection Surge4000V; ESD6000V; IP66
Material Metal+plastic
Boundary Dimensions 298(D)375(H)mm
Package Dimensions 385(L)350(W)540(H)mm
GrossWeight 9.41kg
NetWeight 5.33kg
