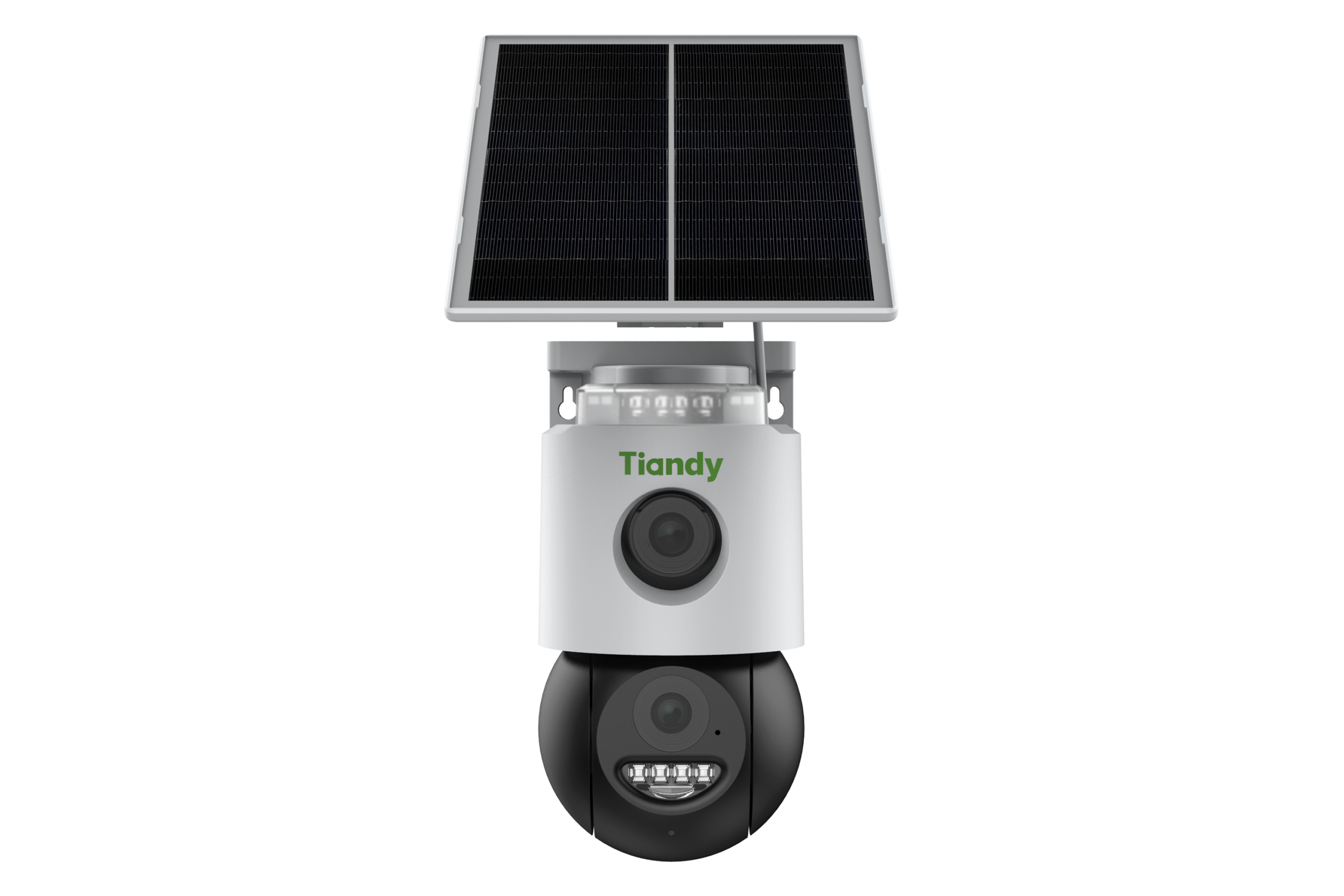

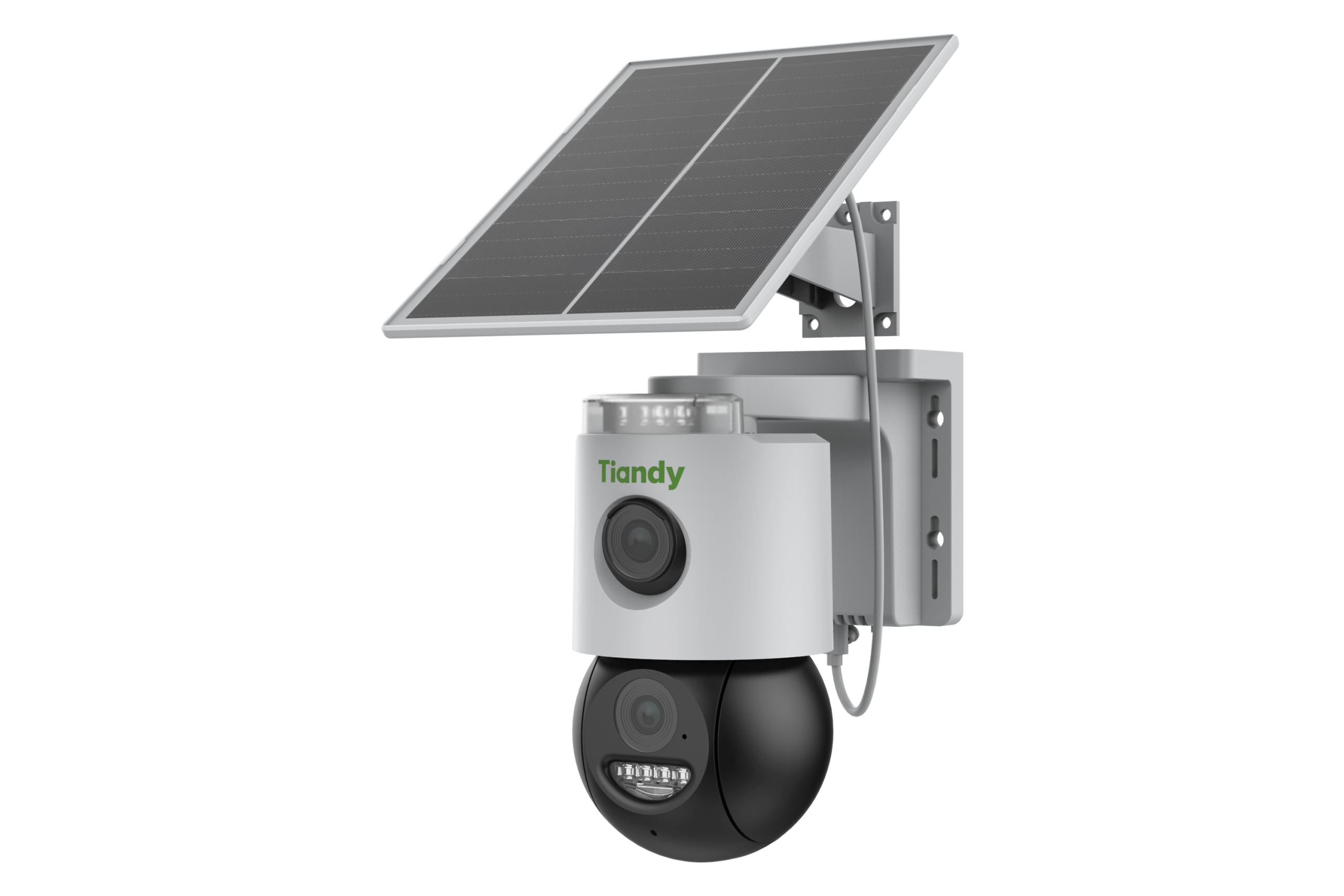

Tiandy 6MP Fixed Color Maker 4G PT Camera
**
Product
Description
Camera
Image Sensor
Panorama: 1/2.9″CMOS Detail: 1/2.9″CMOS
Min. Illumination
Color:0.02lux@(F1.6,AGC ON)
Shutter Time
1s-1/100000s
Day&Night
Fixed IR-cut
WDR
DWDR
S/N
?52dB
Angle Adjustment
Panorama:-60~60°(P) Details:0~345°(P); Panorama:5~15° Details:0~90°
Lens
Lens Type
Fixed focal lens
Focal Length
Panorama: 4mm Detail: 4mm
Lens Mount
M12
Aperture Range
F1.6
Aperture Type
Fixed
Field of View
Panorama:79.6°(H); Detail:79.6°(H); Panorama:42.5°(V); Detail:42.5°(V);
Panorama:91.7°(D); Detail:91.7°(D)
DORI Distance
Panorama: Detect: 59.26 m Observe: 23.52 m Recognize: 11.85 m Identify:
5.93 m Detail: Detect: 59.26 m Observe: 23.52 m Recognize: 11.85 m Identify:
5.93 m
Pan&Tilt
Pan Speed
30°/s
Tilt Speed
25°/s
Preset
64
Illuminator
IR LEDs
Panorama:4 Detail:4
IR Distance
30m
Wavelength
850nm
White LEDs
Panorama:4 Detail:4
Whitelight Distance
20m
Red and Blue Alarm Flash
Yes
Compression Standard
Video Compression
S+265/H.265
Video Bit Rate
1.2Mbps
Audio Compression
G.711A
Audio Sampling Rate
16kHz
Max. Resolution
Panorama:3MP,2304×1296@20fps Detail:3MP,2304×1296@20fps
Main Stream
Panorama: PAL:20fps(2304×1296) Detail: PAL:20fps(2304×1296)
Sub Stream
PAL:15fps(704×576)
AGC
Yes
3D DNR
Yes
White Balance
Auto
OSD
48*48; Lattice
Feature
General Alarm
Smart Alarm(human and vehicle detection)
Exceptions Alarm
Disk Full; Disk R/W Error
Linkage Method
Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture
Auto-Tracking
Auto-Tracking
Network
Protocols
TCP/IP; UDP; ICMP; DNS; NTP; IPv4; SSH; Unicast
Remote Connection
?2
Moblie Client
EasyLive Plus
Interface
Built-in Mic
1×Built-in Mic
Built-in Speaker
1×Built-in Loudspeaker
On-board Storage
Support microSD/microSDHC/microSDXC card,up to 256GB
General
Operating Temperature
-20?~50?(14?~122?) (Charge:-20?~50?)
Operating Humidity
?95%RH
Storage Temperature
-20?~50?(14?~122?)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
DC5V±25%,Max. 10W
Protection
Surge500V; ESD6000V; IP65
Boundary Dimensions
183(L)105W)202(H)mm
Package Dimensions
315(L)225(W)180(H)mm
GrossWeight
1.66kg
