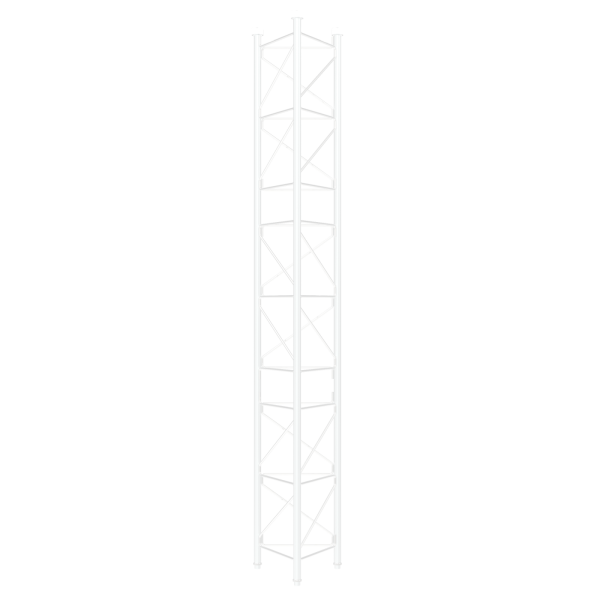

Tower 450 Middle Section 3m White Color
Tower 450 Middle Section 3m Color White Televes 313101
Middle section of 3 meters for the assembly of the Televes 450 series Tower, with anchors using fittings.
This section of the turret stands out for its**zinc-plated treatment and painted**in oven-lacquered white with electrostatic polyester powder.
Tower 450 supports a maximum height of up to 90 meters (according to calculation conditions). Surface facing the wind: 0.473 m2 x 1.2 coef. = 0.568 m2.
White Middle Section of 3 Meters for mounting Tower 450 Televes
What are the main characteristics of the Tower 450 Middle Section Televes 313101?
Anchoring system using fittings
Robotic welding
Maximum height of Tower 450: 90m (according to calculation conditions)
Zinc plating treatment + color painting: oven lacquered with electrostatic polyester powder
Surface facing the wind:?0,473 m2 x 1,2 coef. = 0,568 m2
