TP-Link MC220L 10/100/1000 Mbps RJ45 to 1000 Mbps SFP Slot Supporting MiniGBIC Modules
KSh2,177.77
>
1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
>
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
>
Complies with IEEE 802.3ab and IEEE 802.3z
>
FX port supports hot-swappable

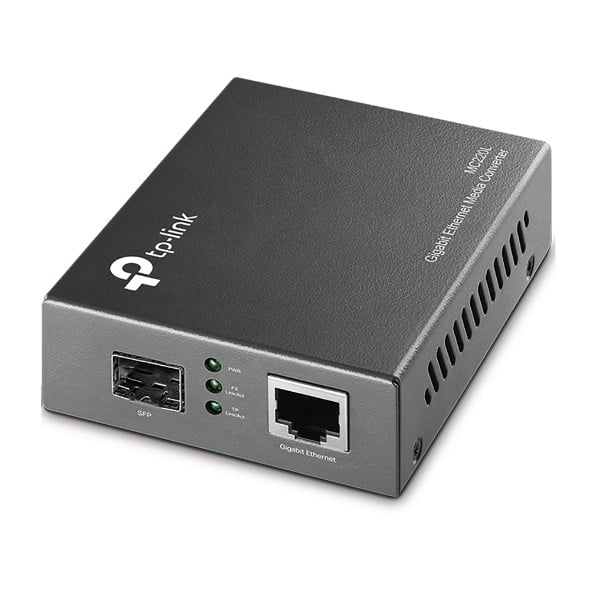

TP-LINK MC220L – Fibre media converter
TP-LINK MC220L
The MC220L is a media converter designed to convert 1000Base-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a standalone device (no chassis required) or with TP-Link’s 19″system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Additional Product Notes
Works at 1000Mbps in full-duplex mode for both TX port and FX port
Supports auto MID/MID-X for TX port
Link fault pass through and far end fault minimize the loss caused by link failure timely
Provides switch configuration of force /auto transfer mode for FX port
FX port support hot-swappable
Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
Easy-to-view LED indicators provide status to monitor network activity easily
External power supply
Complies with IEEE 802.3ab and IEEE 802.3z
1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Complies with IEEE 802.3ab and IEEE 802.3z
FX port supports hot-swappable
