Transmodulator DVBS / S2 – COFDM
KSh187,174.00

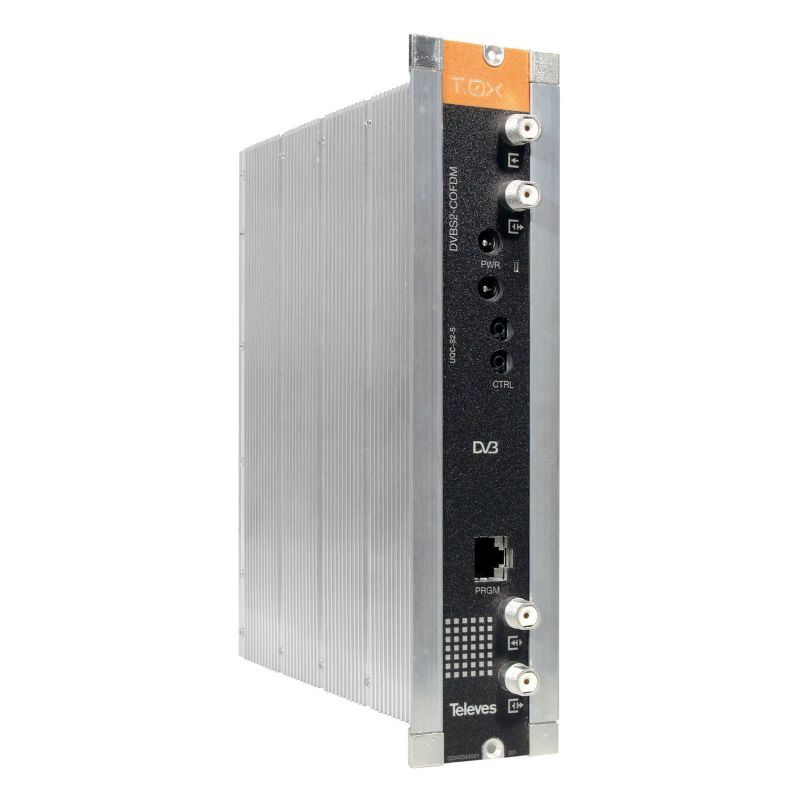

Transmodulator that generates a DTT multiplex from services whose origin is a TVSAT transponder in either DVBS (QPSK) or DVBS2 (QPSK /8PSK) modulation formats.
Transmodulator that generates a DTT multiplex from services whose origin is a TVSAT transponder in either DVBS (QPSK) or DVBS2 (QPSK /8PSK) modulation formats.
Once extracted the MPEG2 TS, it is re-modulated in COFDM format to obtain an output channel (7/8 MHz bandwidth) in VHF/UHF by means of a agile up-converter.
Settings of operation parameters can be performed by means of the programming unit (ref. 7234): input frequency, output channel, modulation format and adaptation of services, mainly.
Features
Total or selective elimination of services received, so that they cannot be detected (and stored) by the STB*.
Edition of TS_ID to facilitate detection of programs / services in the receiver (STB).*
Edition of Network_ID, Original Network_ID and Cell_ ID to control network IDs.
Allows you to assign an LCN (Logical Channel Number) to the services present in the output, which facilitates the management of channels in the receiver (STB).*
Edition of S_ID, to avoid retuning of receivers (STB)* when the services of a multiplex are changed at its output.
Specifications
Reference 563101
?ENTRADA SAT SAT ?Input frequency range MHz 950…2.150 Program
?Frequency steps 1 Program
?Input level dB?V 49…90 ?
?Loop-through losses dB ? 1,5 ?
?LNB powering Vdc 13V/17V/ OFF – 22KHz (ON/OFF) Program
?Input return losses (typ.) dB > 10 t?p. ?
?Input impedance ? 75 ?
DVB-S ?Modulation 10-30 (QPSK-8PSK) Auto
?Symbol rate Mbaud 2 – 42,5 Program
?FEC inner code Viterbi (1/2, 2/3, 3/4, 5/6, 7/8) Auto
?FEC outer code RS (188/204) Auto
?Roll-Off factor % 20, 25, 35 Auto
DVB-S2 ?Modulation QPSK / 8PSK Auto
?Symbol rate Mbaud 10 – 30 Program
?FEC inner code LDPC (1/2, 1/3, 1/4, 2/3, 2/5, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10) Auto
?FEC outer code BCH (Bose-Chaudhuri-Hocquenghem) Auto
?Roll-Off factor % 20, 25, 35 Auto
?SALIDA DVB-T COFDM ?Modulation (Constellation) COFDM (QPSK, 16QAM, 64QAM) Program
?FFT 8K ?
?Guard interval ?s 1/4, 1/8, 1/16, 1/32 Program
?Scrambling DVB EN 300744 ?Auto
?Interleaving DVB EN 300744 Auto
?Convolutional code (FEC) Viterbi (1/2, 2/3, 3/4, 5/6, 7/8) Auto
?PCR correction S? Program
?Services deleting S? Auto
?Network_ID S? Program
?Original Network_ID S? Program
?Cell_ID S? Program
?TS_ID S? Program
?S_ID (solo ref. 563199) S? Program
?Spectral inversion Normal, Inverted Program
?Channel bandwidth MHz 7, 8 Program
RF ?Output frequency 177 – 266 / 474 – 858 MHz
45 – 862 MHz Program
?Frequency steps KHz 166. Program
?Output level (max. typ.) dB?V > 80 ? 5 t?p. Program
?Output level regulation margin dB > 15 Program
?MER > 40 ?
?Output loop-through losses ? 1,5 ?
?P?rdidas de retorno > 12 t?p. ?
?Output impedance ? 75 ?
?Output return losses (typ.) normal, CW (Continuous Wave), OFF, NULL ?
?GENERAL ?Powering voltage Vdc 24 ?
?Consumption mA 270 mA (not powering LNB)
480 mA (including a LNB of 300 mA consumption) ?
?Ingress protection IP 20 ?
?Dimensions (W x H x D) mm 50 x 216 x 175 ?
