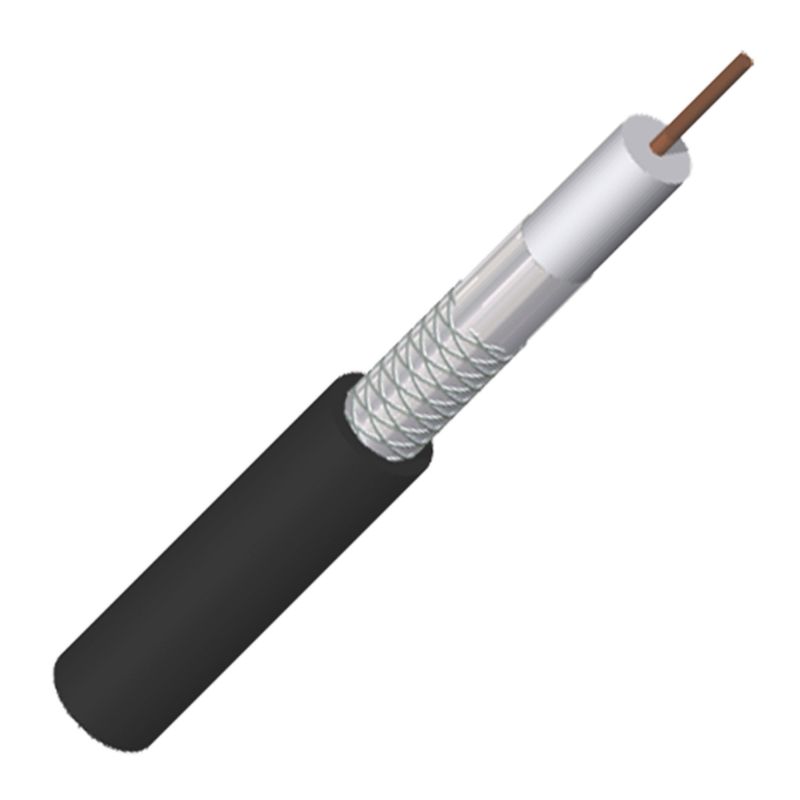

Triax KOKA F6 Plus PE coaxial cable coil 100m Black LTE
KSh7,986.00
CPR compliant – Fire class Fca according to the EN50575 fire standard
TRIAX KOKA F6 Plus is a premium cable for outdoor installations. The wide frequency range allows the cable to carry signals for both television, radio, satellite receivers etc., whether the signal comes from satellite, terrestrial antenna or cable-tv.
This cable is designed with a center conductor of Copper Clad Steel (CCS) which offers high mechanical strength. Due to the gas injected foam, which is far superior to the chemical foam, the copper cladding carries the signals without great losses. A good quality conductor and appropriate gas injected dielectric grants velocity ratio higher than 80%.
Specifications
ORDER INFORMATION
EAN Number 5702661511394
CONSTRUCTION
Dielectric – dimension 4.57 ? 0.1 mm
Dielectric – material PE foam
Jacket ? dimension 6.9 ? 0.2 mm
Jacket – material PE
Shield (First) foil 1 ? material Al/Pet bonded
Shield (First) foil 1 ? overlap 20 %
Shield (Second) ? braid coverage 60 ? 3 %
Shield (Second) ? braid material Al
Third shield ? foil 2 ? material Al/Pet
Inner conductor – material CCS
Inner conductor – dimension 1.02 ? 0.03 mm
SHIELDING
Screening attenuation @ 1000-2000 MHz > 90 dB
Screening attenuation @ 2000-3000 MHz > 95 dB
Screening attenuation @ 30-1000 MHz > 100 dB
CHARACTERISTICS
Type KOKA F6 Plus
LOSS
Attenuation (at 20?C) @ 1000 MHz 21.5 dB
Attenuation (at 20?C) @ 1350 MHz 25.3 dB
Attenuation (at 20?C) @ 1750 MHz 28.4 dB
Attenuation (at 20?C) @ 200 MHz 9.0 dB
Attenuation (at 20?C) @ 2150 MHz 30.8 dB
Attenuation (at 20?C) @ 2400 MHz 32.9 dB
Attenuation (at 20?C) @ 3000 MHz 39.0 dB
Attenuation (at 20?C) @ 470 MHz 15.2 dB
Attenuation (at 20?C) @ 50 MHz 5.0 dB
Attenuation (at 20?C) @ 5 MHz 2.4 dB
Attenuation (at 20?C) @ 862 MHz 19.0 dB
RETURN LOSS
Structural return loss @ 1000-2000 MHz > 18 dB
Structural return loss @ 2000-3000 MHz > 16 dB
Structural return loss @ 470-1000 MHz > 21 dB
ELECTRICAL
Outer DC resistance < 38 ?/km
Velocity ratio 81 %
Impedance 75 ? 3 ?
Inner DC resistance <100 ?/km
OPERATIONAL
Screening Efficiency EN50117 (Class A)
Application Indoor
Fire Class Eca
DoP number TR0008
Notified Body 0051
MECHANICAL
Packaging Depth 0001 m
Packaging Height 0.001 m
Total Weight 0.047 kg
Packaging Width 0.001 m
Length (m) 100 m
Minimum bending radius - single/repeated 23/70 mm
Net Weight 0.052 kg
Tara Weight 0.005 kg
Colour White
Weight (kg) 5 kg
Weight net 4 kg
