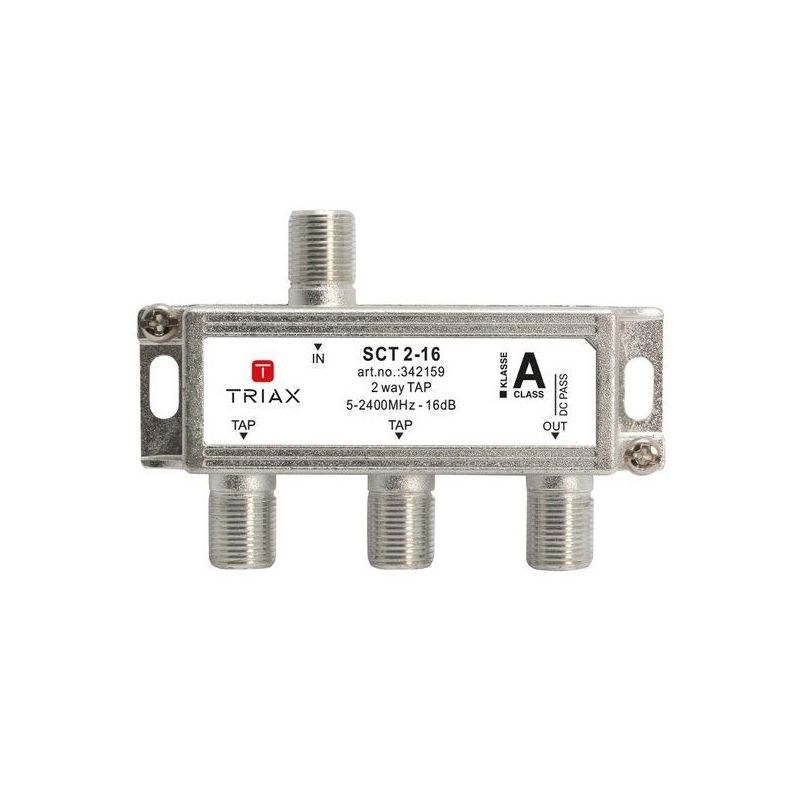

Triax SCT 2-16 2-output tap-off, 16dB attenuation

Name: Triax SCT 2-16 2-output tap-off, 16dB attenuation | +254720548999
Price: 1160.00 KES
Availability: InStock

KSh1,160.00

Triax tap ideal for SAT-IF and MATV distribution networks.

Main Features
Frequency range 5-2400 MHz
DC pass through on trunk IN-OUT
High shielding
Return loss Grade 3
High quality die-cast housing tin (Sn) coated
Acc. to EN 50083-2 & EN 60728-4
Formerly**triax-342216
Specifications
SCT 2-16
SHIELDING
Shielding effeciency VHF/UHF > 110 dB
CHARACTERISTICS
Type COAX tap
FREQUENCY
Frequency range 5…2400 MHz
LOSS
Tap Loss (in-tap) 1000-2150 MHz 16.0 (** 2.5) dB
Tap loss (in-tap) 2150-2400 MHz 16.0 (** 2.5) dB
Tap loss (in-tap) 40-1000 MHz 16.0 (** 1.2) dB
Tap loss (in-tap) 5-40 MHz 16.0 (** 1.2) dB
ISOLATION
Isolation (out-tap) 1000-2150 MHz 23 dB
Isolation (out-tap) 2150-2400 MHz 22 dB
Isolation (out-tap) 40-1000 MHz 28 dB
Isolation (out-tap) 5-40 MHz 28 dB
Isolation (tap-tap) 1000-2150 MHz 31 dB
Isolation (tap-tap) 2150-2400 MHz 29 dB
Isolation (tap-tap) 40-1000 MHz 38 dB
Isolation (tap-tap) 5-40 MHz 40 dB
RETURN LOSS
Return Loss (in-out) 1000-2150 MHz 12.0 dB
Return loss (in-out) 2150-2400 MHz 12.0 dB
Return loss (in-out) 40-1000 MHz 14.0 dB
Return loss (in-out) 5-40 MHz 11.0 dB
Return Loss (tap) 1000-2150 MHz 13.0 dB
Return loss (tap) 2150-2400 MHz 13.0 dB
Return loss (tap) 40-1000 MHz 15.0 dB
Return loss (tap) 5-40 MHz 13.0 dB
ELECTRICAL
Impedance 75 **
OPERATIONAL
Certification CE, RoHS
DC Passthrough Yes IN-OUT (max. 500mA) TAPS DC blocked
Screening Efficiency Class A
CONNECTORS
Connector Type F-female
Number of inputs 1
Number of outputs 1
Number of taps 2
MECHANICAL
Product Depth 16 mm
Extra high bracket (Optional) 2 x BS-Brackets Small 1-4 T&S (Art.No.342100)
Packaging Depth 0,075 m
Packaging Height 0,017 m
Total Weight 0,058 kg
Packaging Width 0,058 m
Net Weight 0,058 kg
Packing QTY 1
Product Width 74 mm
Product Height 57 mm
