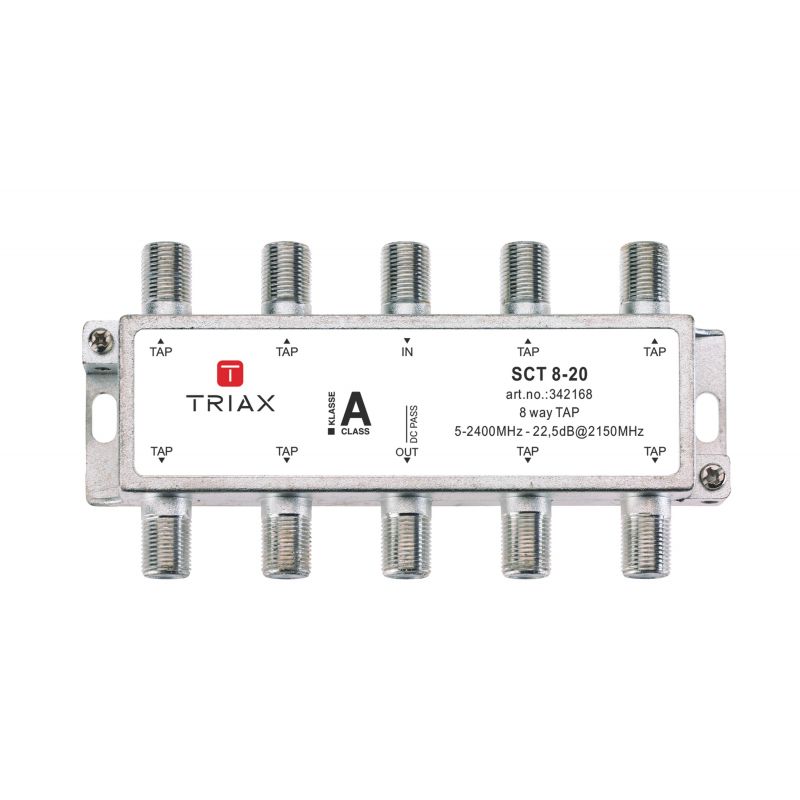

Triax SCT 8-20 Shunt 8 outputs 20 dB attenuation

SCT 8-20** – 8 way tap

TRIAX coaxial tap ideal for SAT-IF and MATV distribution networks.

Main Features
Frequency range 5-2400 MHz
DC pass via trunk line IN-OUT
High shielding against ingress noise like radiated by LTE mobile
High quality die-cast housing tin (Sn) coated with solder shield bottom plate
Grounding clamp terminals
Formerly**triax-342820
Specifications
SHIELDING
Shielding effeciency VHF/UHF >85 dB
CHARACTERISTICS
Type COAX tap
FREQUENCY
Frequency range 5…2400 MHz
LOSS
Tap loss (in-tap) 5-40 MHz 20.0 dB
Tap loss (in-tap) 40-1000 MHz 20.5 dB
Tap loss (in-tap) 1000-2150 MHz 22.5 dB
Tap loss (in-tap) 2150-2400 MHz 22.5 dB
Insertion loss (in-out) 5-40 Mhz 2.5 dB
Insertion loss (in-out) 40-1000 Mhz 2.8 dB
Insertion loss (in-out) 1000-2150 MHz 4.5 dB
Insertion loss (in-out) 2150-2400 Mhz 5.5 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz 33 dB
Isolation (out-tap) 5-40 MHz 31 dB
Isolation (tap-tap) 40-1000 MHz 25 dB
Isolation (out-tap) 40-1000 MHz 28 dB
Isolation (tap-tap) 1000-2150 MHz 24 dB
Isolation (out-tap) 1000-2150 MHz 24 dB
Isolation (tap-tap) 2150-2400 MHz 23 dB
Isolation (out-tap) 2150-2400 MHz 24 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz 10.0 dB
Return loss (tap) 5-40 MHz 10.0 dB
Return loss (in-out) 40-1000 MHz 12.0 dB
Return loss (tap) 40-1000 MHz 12.0 dB
Return loss (in-out) 1000-2150 MHz 9.0 dB
Return loss (tap) 1000-2150 MHz 9.0 dB
Return loss (in-out) 2150-2400 MHz 8.0 dB
Return loss (tap) 2150-2400 MHz 8.0 dB
ELECTRICAL
Impedance 75 **
OPERATIONAL
Application SAT, MATV 2.4Ghz +DC
Screening Efficiency EN50083-2 (Class A)
DC Passthrough IN-OUT max. 1A/30V
Certification EN 50581:2012 (RoHS II)
Environment Indoor
Temperature – operating -30**+60 **C
CONNECTORS
Number of inputs 1
Number of outputs 1
Number of taps 8
Connector Type F-female (IEC 61 169-24)
MECHANICAL
FormulaTest 17.5 mm x 58.3 mm x 118 mm
Main material Zinc diecast/Sn plated
Packaging Polybag
Packing QTY 1
Product Height 18 mm
Product Width 58 mm
Product Depth 118 mm
Packaging Height 0,120 m
Packaging Width 0,060 m
Packaging Depth 0,020 m
Net Weight 0,140 kg
Tara Weight 0,001 kg
Total Weight 0,141 kg
