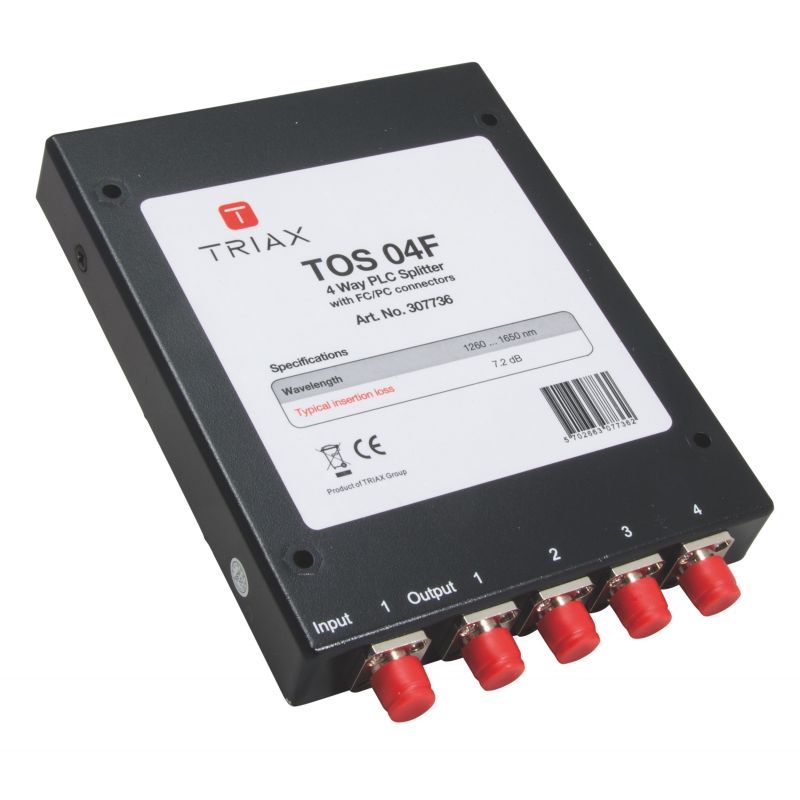

Triax TOS 04 F 1 input, 4 metal outputs, optical splitter…
KSh18,310.00
TOS 04F, 4-way PLC Splitter FC/PC?
The balanced coupler is implemented in a valid metal housing
pre-assembled with FC/PC connectors
PLC (Planar Lightwave Circuit) couplers with a wide window of wave lengths
Low and flat insertion loss
Specifications
CHARACTERISTICS
Type OPTO Coupler balanced
Coupling Ratio (OPTO) 4x 12.5 %
Wavelength 1260…1650 nm
LOSS
Insertion loss (typ.) 7.2 dB
CONNECTORS
Connector Type Optical – FC/PC
Number of inputs 1
Number of outputs 4
MECHANICAL
Dimensions product (H x D x W) 150x20x114 mm
Packing QTY 1
Packaging Height 0,045 m
Packaging Width 0,155 m
Packaging Depth 0,215 m
Packaging Volume 0,001 m3
Net Weight 0,234 kg
Tara Weight 0,064 kg
Total Weight 0,298 kg
