UAP Splitter EasyF 2D 5dB Televes

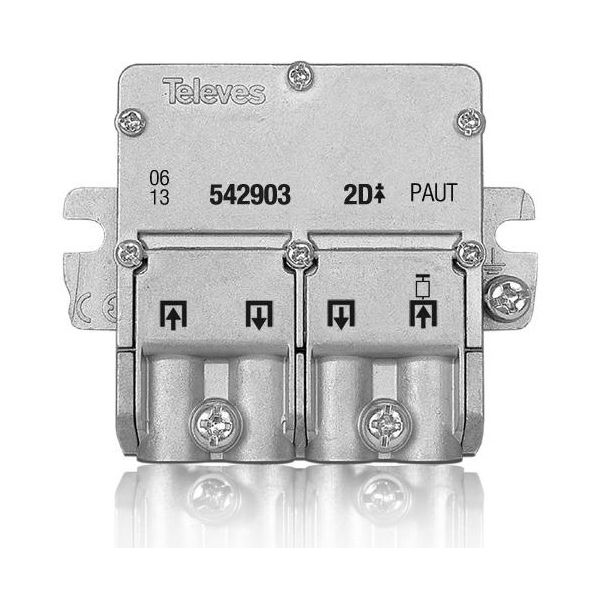

Mini UAP with 2 outputs EasyF Televes 542903
Televes UAP (User Access Point) 542903 is used to divide the television signal from one cable to two cables, to serve 2 TV outlets.
The User Access Points are used in installations carried out according to the ICT regulation. The equipment has an additional charged input to connect the second coaxial cable downspout. Its flange or EasyF connections make installation cheaper and easier; since the connection is made directly with the bare cable, without using connectors.
This UAP is designed to be installed indoors, but can be installed outdoors always inside a Televes Mini outdoor box.
Technical Specifications of Televes 542903 2-output PAU Distributor
Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 2
Through loss S1/S2 dB 4,5 4,3
S3/S4 – –
S5/S6 – –
S7/S8 – –
Tap loss >15
DC Pass (max.) mA 300 (in.?out.)
