UAP Splitter EasyF 3D 7dB Televes

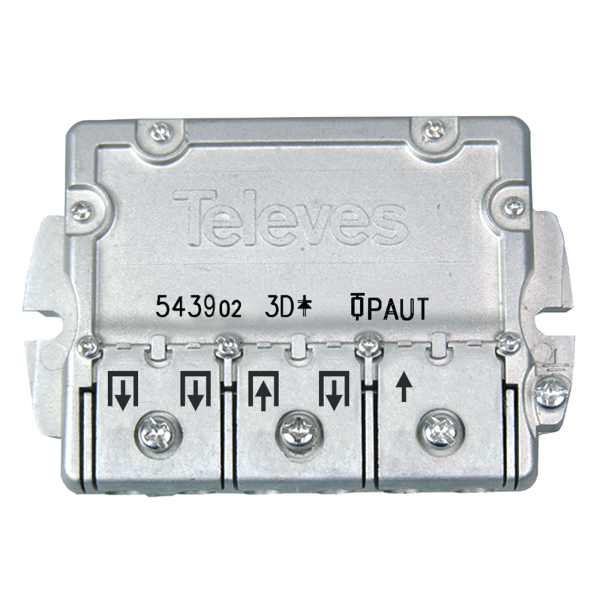

UAP 3-way splitter type Televes Flange 543902
UAP Splitter unit with DTT-SAT (5-2400Mhz), with 3 “EasyF” flange outputs with 7dB of medium attenuation.
The User Access Points are passive distribution equipment with an additional entrance loaded to connect the second downspout in an installation carried out according to the ICT-2 regulation. All also have DC current pass from the outputs to the input.
For indoor installation. Suitable for outside in a 4177 Televes chest.
Technical Specifications of Televes PAU Distributor 3 Outputs 543902
Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 3
Through loss S1/S2 dB 9 8
S3/S4 5 4
S5/S6 – –
S7/S8 – –
Tap loss >17 >15
DC Pass (max.) mA 300 (in.?out.)
