UAP Splitter EasyF 6D 13dB Televes
PAU + 6-way EasyF splitter

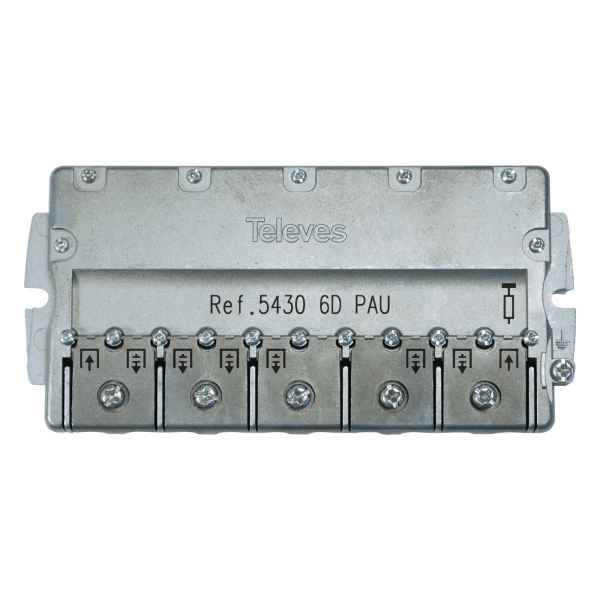

PAU 5430 6-way Televes distributor with EasyF flange connection, easy to install and without connectors.
This passive equipment has a maximum loss of 14dB and is ideal for ICT installations with satellite and terrestrial signal by two trunk cables.
The PAUs always have 2 inputs to insert both cables and do not offer DC current pass for pre-feeding.
Televes 5430 6-Output PAU Technical Specifications
EasyF connection system: easy to install, savings on mounting
Made of Zamak, high shielding
Outstanding reliability: automated manufacturing using new generation micro-components
Improves through losses
Outstanding electrical behaviour: impulsive noise reduction
Grounding screw provided
DC pass from the outputs to the input
Frequency range MHz 5-2400
5-47 47-862 950-2400
Number of outputs 6
Through loss S1/S2 dB < 14 14 14
S3/S4 < 13 12 12
S5/S6 < 16 13 11
S7/S8 - - -
Tap loss >30 >28 >28
