UAP Splitter EasyF 8D 14dB Televes

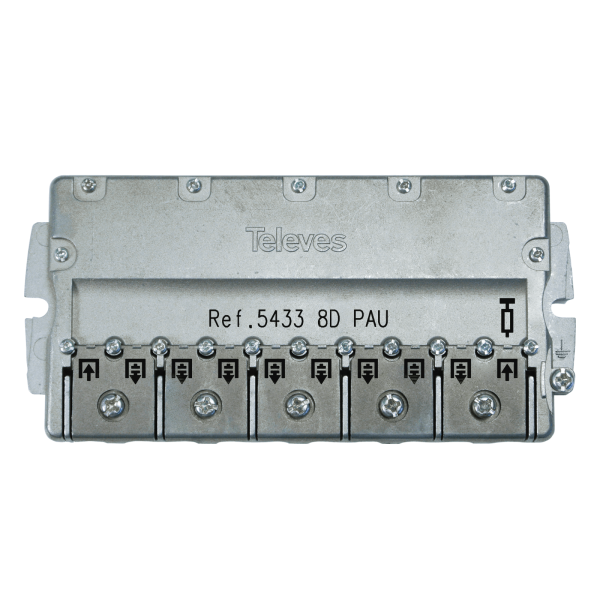

UAP Splitter 8 outputs EasyF Televes 5433
Distributor with UAP of 8 flange outputs for DTT-SAT signals (5-2400Mhz) with 14dB of medium attenuation. Equipment to install protected from the weather.
The EasyF connections of this equipment give it a compact design and the ease of inserting stripped wires directly, without connectors.
The UAPs (User Access Points) are used in installations carried out according to the ICT-2 regulation where there are two cable downspouts to select one of the 2 Satellite signals.
Technical Specifications of the Televes 5433 PAU splitter PAU
EasyF connection system: easy to install, savings on mounting
Made of Zamak, high shielding
Outstanding reliability: automated manufacturing using new generation micro-components
Improves through losses
Outstanding electrical behaviour: impulsive noise reduction
Grounding screw provided
DC pass from the outputs to the input
Frequency range MHz 5-2400
5-47 47-862 950-2400
Number of outputs 8
Through loss S1/S2 dB < 14 14 14
S3/S4 < 17 16 16
S5/S6 < 16 14 13
S7/S8 < 20 15 14
Tap loss >28
DC Pass (max.) mA 300 (in.?out.)
