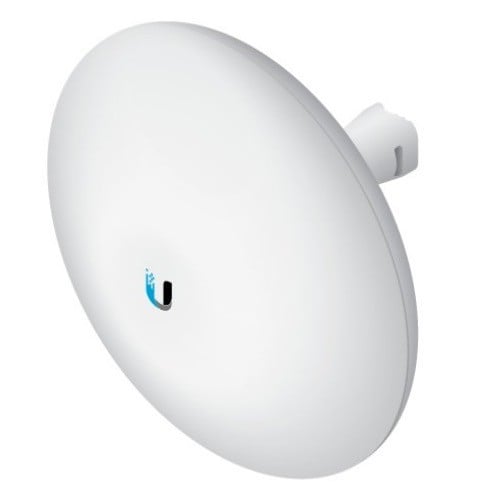

Ubiquiti NBE-5AC-19 Networks NanoBeam M5 AC-19 network antenna 19 dBi

Ubiquiti
NBE-5AC-19 – efficiency in a compact form
The Ubiquiti NBE-5AC-19 device uses the 802.11ac standard. It uses the
InnerFeed as well as the airMax procotol.

The Ubiquiti NBE-5AC-19 works in the 5150 – 5875 MHz band. This product is
equipped with a 720 MHz Atheros MIPS 74KC processor. Additionally it uses 128
MB of internal memory and 8 MB of flash memory.

Innovation

The comprehensive Ubiquiti NBE-5AC-19 radio system uses advanced technology
to base its functioning on a narrow beam which protects it from interference
especially in places of high beam density. The device is powered by
PoE.

Use

The NBE-5AC-19 device can be used to create point-to-point and
point-to-multipoint links as well as becoming a client of a wireless
network.

Antenna

The device’s size is compact. The dual band antenna is characterised by a
maximum gain of 19 dBi.

Installation

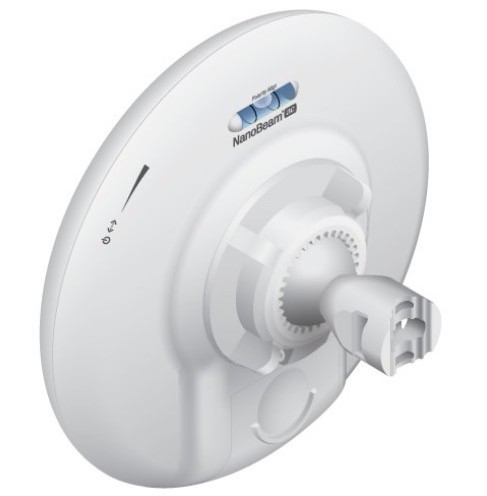

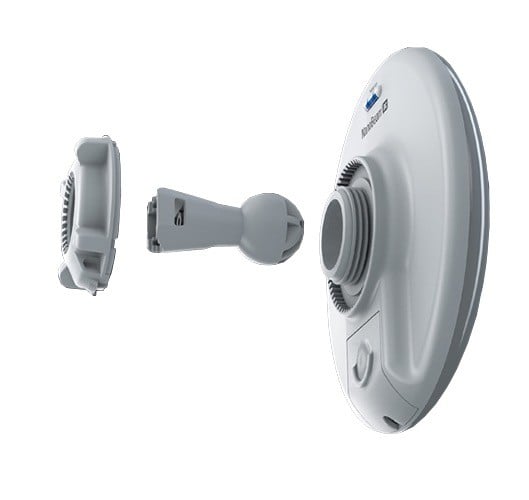

The installation of the Ubiquiti Nano Beam 5AC-19 device is quick and easy.
The device is mounted on a wall or a pole. The round handle makes the
regulation easy.

Functionality

The device features Web Server, SNMP, SSH Server, Telnet, Ping Watchdog,
DHCP, NAT, Bridging and Routing functions.

Key features
works in the 5 GHz band
450+ Mbps bandwidth
15+ km range
19 dBi antenna power gain
compact size

Comparison


NBE-5AC-16

NBE-5AC-19

FREQUENCY 5 GHz 5 GHz
THROUGHPUT 450 + Mbps 450 + Mbps
RANGE 10+ km

15+ km

GAIN 16 dBi

19 dBi
