Ubiquiti NBE-M2-13 Networks NanoBeam M2, 2.4GHz, 13 dB, network antenna Directional antenna 13 dBi

Ubiquiti
NBE-M2-13 – NanoBeam M series efficient solution
The Ubiquiti NBE-M2-13 radio system combines high quality and reliability.
The device works in the 2.4 GHz band achieving 150 Mbps bandwidth
levels.

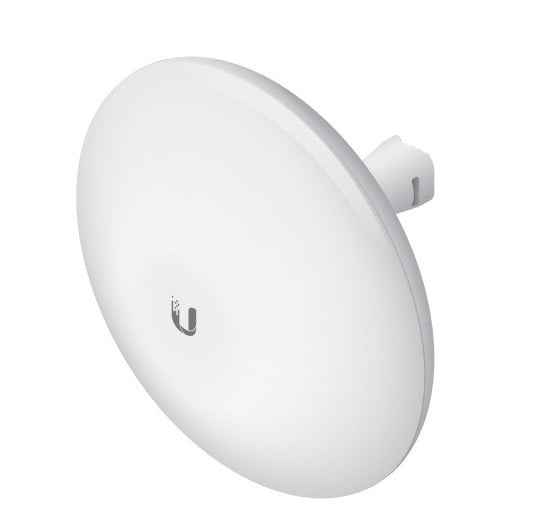

The Ubiquiti NBE-M2-13 is a comprehensive radio system that works in the
2405 – 2475 MHz band. This product is equipped with a 560 MHz Atheros MIPS
74KC processor. The device uses 64 MB internal memory and 8 MB flash drive
memory.

Antenna

The use of InnerFeed technology allows for the integration of the antenna
emitter with the radio module or the router/access point. The maximum gain of
the antenna is 13 dBi.

Installation

The installation process is easy and effortless. The round handle enables
the appropriate configuration of the radio system.

Power

The NBE-M2-13 can be powered through PoE, a technology for powering devices
through a network with the use of Ethernet cables.

Use

The device can work in router or bridge mode. The Wi-Fi interface supports
Access Point, Access Point WDS, Client and Client WDS modes.

Key features
works in the 2.4 GHz band
150+ Mbps bandwidth
15 km range
13 dBi antenna power gain
durable construction

Comparison

NBE-M2-13

NBE-M5-16

NBE-M5-19

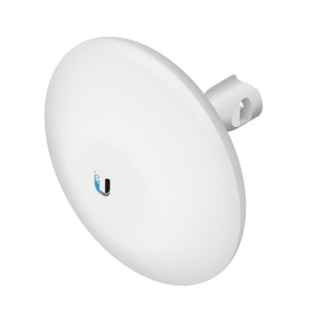

NBE-5AC-19

FREQUENCY

2.4 GHz  5 GHz   5 GHz 5 GHz

THROUGHPUT

 150+ Mbps  150+ Mbps  150+ Mbps 450+ Mbps

RANGE

15+ km   10+ km  15+ km   15+ km

DIMENSIONS

189 x 189 x 125 mm 140 x 140 x 54 mm 189 x 189 x 125 mm 189 x 189 x 125
mm

Manufacturer’s content

 Read more in the manufacturer’s documentation

 Read the manual

Specifications
