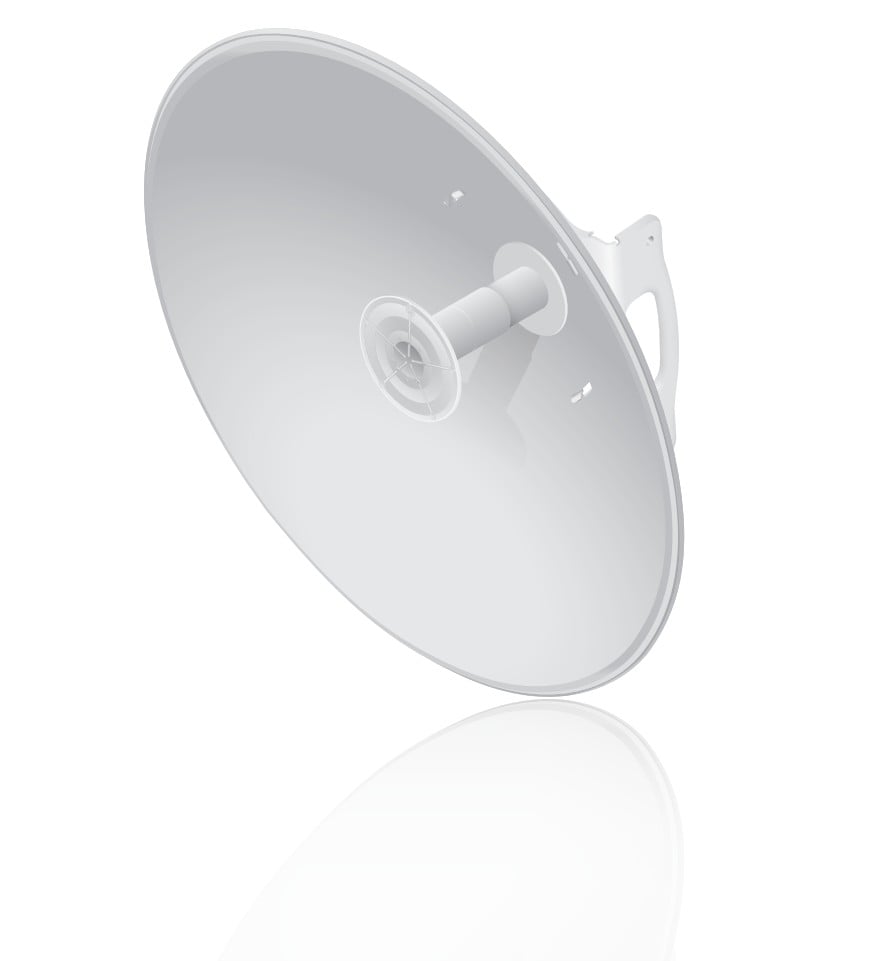

Ubiquiti Networks AF-5G30-S45 network antenna 30 dBi

Name: Ubiquiti Networks AF-5G30-S45 network antenna 30 dBi | +254720548999
SKU: AF-5G30-S45
Price: 36040.76 KES
Availability: InStock

KSh36,040.76

5 GHz, 30
dBi antenna ideal for long range Point-to-Point (PtP) links.

2×2 dual-polarity performance

Robust mechanical design for outdoor application use

Secure pole-mounting

Compatible with airFiber X radios

AF-5G30-S45
– Ubiquiti airFiber X series reliable antenna
The Ubiquiti AF-5G30-S45 antenna is designed to created efficient radio
links for long distances. It’s distinguished by functionality and
reliability.

The device works in the 5 GHz band and uses MIMO 2×2 technology. The
maximum gain is 30 dBi.

Functionality

The solution works with Ubiquiti AirFiber 5X devices. Thanks to its
modified construction it is much lighter than the RocketDish30 (with a weight
of only 7.4 kg). Its solid construction results in high durability and
resistance to unfavourable weather conditions (200 km/h wind speed). The
maximum voltage standing wave ratio is 1.6:1.

Installation

The installation of the AF-5G30-S45 is easy and intuitive and does not
require the use of specialised tools.

Reliability

The Ubiquiti AF-5G30-S45 antenna combines innovative technologies,
functionality and an affordable price. Its modern design facilitates RF
isolation and reduces noise. It works effectively in varied
environments.

Key features
works in the 5 GHz band
30 dBi maximum gain of the antenna
modern design
sturdy construction
size ø 650 x 386 mm

Comparison

AF-2G24-S45 AF-3G26-S45 AF-5G23-S45 AF-5G30-S45 AF-5G34-S45
FREQUENCY 2.4 GHz 3 GHz 5 GHz 5 GHz 5 GHz
GAIN 24 dBi 26 dBi 23 dBi 30 dBi 34 dBi
DIMENSIONS* ø 650 x 295 mm ø 650 x 300 mm ø 378 x 290 mm ø 650 x 386
mm ø 1050 x 421 mm

* Dimensions exclude pole mount and airFiber X radio (airFiber X
radio sold separately)

Manufacturer’s content

Read more in the manufacturer’s documentation

Read the manual

Specifications
