Ubiquiti Networks AM-3G18-120 network antenna Sector antenna 18.2 dBi
KSh26,631.45
**
Modern

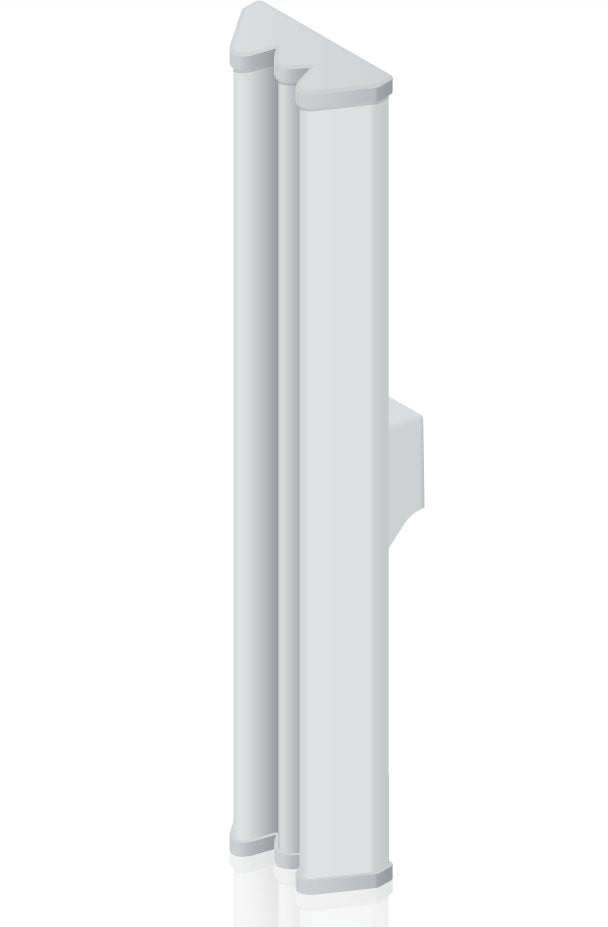

Ubiquiti AM-3G18-120 solution
The Ubiquiti AM-3G18-120 sector antenna works in the 3.3 – 3.8 GHz band.
Its maximum gain is 18.2 dBi.
AM-3G18-120 uses Dual-Linear polarisation. The horizontal width of the
beam is 6° and the vertical width is 3°. The device works on the basis of the
latest MIMO technology.
Compatibility
The sector antenna is intended for outdoor installation and is compatible
with Ubiquiti Rocket M Radios series. The device is compatible with 802.11n
standard AirMax solutions. The device is EN 302 326 DN2 certified.
Construction
The antenna is built from durable components to resist unfavourable weather
conditions. Maximum wind speed is approximately 200 km/h. Thanks to all of
these features the device will meet the requirements of the most demanding
users.
Use
The Ubiquiti AM-3G18-120 sector antenna is used to create Point-to-Point
and Point-to-MultiPoint connections.
Key features
works in the 3 GHz band
18 dBi gain
2×2 MIMO
Dual-Linear polarisation
durable construction resistant to unfavourable conditions
Comparison
AM-5G16-120
AM-5G17-90
AM-5G19-120
AM-5G20-90
FREQUENCY 5 GHz 5 GHz 5 GHz 5 GHz
GAIN 16 dBi 17 dBi 19 dBi 20 dBi
DIMENSIONS* 367 x 63 X 41 mm 367 x 63 x 41 mm 700 x 135 x 73 mm 700 x 135 x
70 mm
POLARIZATION Dual-Linear Dual-Linear Dual-Linear Dual-Linear
*Dimensions exclude pole mount and RocketM (RocketM sold separately)
AM-9M13-120
AM-2G16-90
AM-2G15-120
AM-3G18-120
FREQUENCY 900 MHz 2.4 GHz 2.4 GHz 3 GHz
GAIN 13 dBi 16 dBi 15 dBi 18 dBi
DIMENSIONS* 1290 x 290 x 134 mm 700 x 145 x 79 mm 700 x 145 x 93 mm 735 x
144 x 78 mm
POLARIZATION Dual-Linear Dual-Linear Dual-Linear Dual-Linear
*Dimensions exclude pole mount and RocketM (RocketM sold separately)
Manufacturer’s content
Read more in the manufacturer’s documentation
Read the manual
