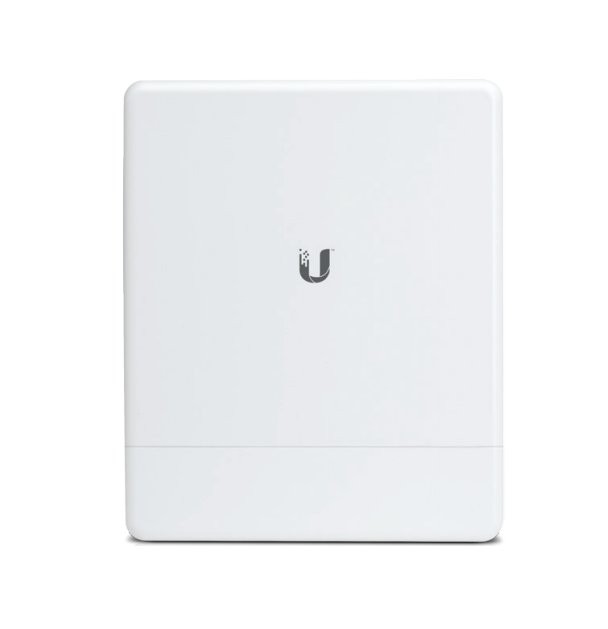

Ubiquiti Networks locoM9 network antenna Sector antenna RP-SMA 8 dBi

LocoM9 –
reliable Ubiquiti solution
The LocoM9 combines functionality and reliability. The device works in the
900 MHz band.

The LocoM9 complements the list of reliable AirMAx NanoStation M solutions
which provide wireless network access. This product is equipped with a 400
MHz Atheros MIPS 24KC processor. The device uses 64 MB internal memory and 8
MB flash drive memory.

Antenna

The device is equipped with an 8 dBi maximum gain and Dual-Linear
polarisation antenna. The device works in the 0.902 – 0.928 GHz band. The
maximum range of the device is 10,000 m.

Solid construction

The Ubiquiti brand manufactures devices of highest quality. Devotion to
every detail and high quality components result in durable and long lasting
devices. It can be used at temperatures ranging from -30 to 75 degrees
Celsius.

Installation

The LocoM9 device belongs to the NanoStation M series which is
characterised by simple and fast installation.

Use

The device is designed to work outside. It allows for the creation of a
stable connection.

Key features
works in the 900 MHz band
150+ Gbps bandwidth
high efficiency
10+ km range
modern design
designed to work outside

Comparison
    OPERATING   FREQUENCY  THROUGHPUT RANGE GAIN

LOCO M9

900 MHz 150+ Mbps 10+ km 8 dBi

NSM2

2.4 GHz 150+ Mbps 13+ km 11 dBi

LOCO M2

2.4 GHz 150+ Mbps 5+ km 8 dBi

NSM3

3 GHz 150+ Mbps 15+ km 13 dBi

NSM365

3.65 GHz  150+ Mbps 15+ km 13 dBi

NSM5

NSM5 150+ Mbps 15+ km 16 dBi

LOCO M5

5 GHz 150+ Mbps 10+ km 13 dBi
