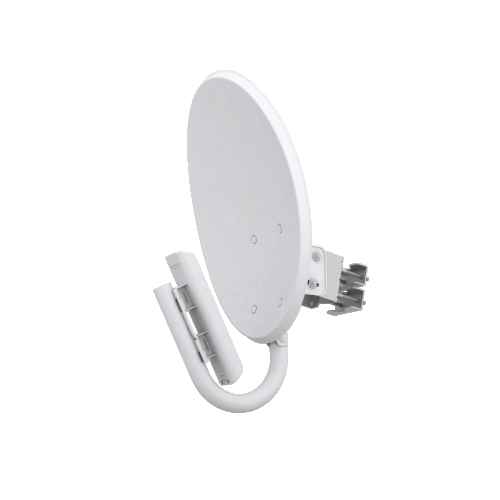

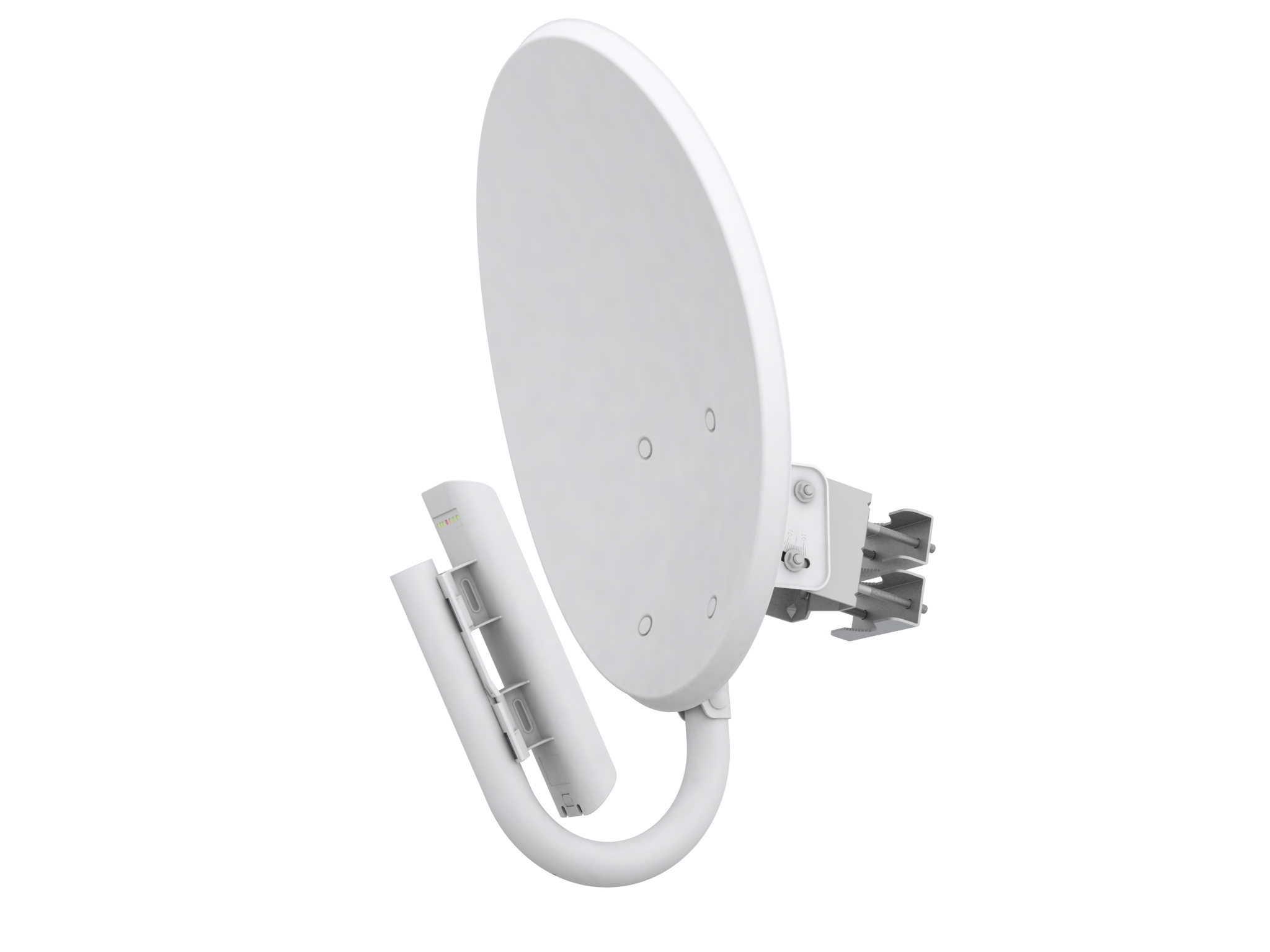

Ubiquiti Networks NBM365 network antenna TNC 22.5 dBi

NBM365 –
an innovative Ubiquiti system
The radio-antenna Ubiquiti NBM365 system is a high quality solution
designed to work in the 3.65 GHz band with 150+ Mbps bandwidth.

This comprehensive Ubiquiti radio-antenna system is distinguished by a
favourable quality to price ratio. The NanoBridge M series combines
Ubiquiti’s InnerFeed and airMax (MIMO TDMA Protocol) technologies to offer
simpler, yet highly efficient and reliable high bandwidth solutions.

Work

The system uses an Atheros MIPS 24KC 400 MHz processor. The device uses 32
MB internal memory and 8 MB flash drive memory. The device can be powered by
PoE.

Installation

The installation is quick and effortless.

Construction

The use of durable components results in high quality and this is why the
system functions properly in unfavourable weather conditions and at
temperatures ranging from -30 to 75 degrees Celsius.

Antenna

The NBM365 device complements the NanoBridge M series and its antenna has
22 dBi gain.

Key features
works in the 3.65 GHz band
150+ Mbps bandwidth
30 km range
21.5-22.5 dBi antenna gain
durable construction resistant to weather
InnerFeed technology
airMax technology

Use

A low cost, efficienct and a solid all-in-one design result in a versatile
device that works perfectly in various environments.

Comparison


NBM9

NBM3

NBM365

FREQUENCY 900 MHz 3 GHz 3.65 GHz
THROUGHPUT 150+ Mbps 150+ Mbps 150+ Mbps
RANGE 20+ km 30+ km 30+ km
GAIN 10.6 – 11.3 dBi 21.5-22.5 dBi 21.5-22.5 dBi
DIMENSIONS 543 x 440 x 725 mm 492 x 440 x 705 mm 492 x 440 x 705 mm
NETWORKING INTERFACE (1) 10/100 Ethernet Port (2) 10/100
Ethernet Ports (2) 10/100 Ethernet Ports

Manufacturer’s content

 Read more in the manufacturer’s documentation

 Read the manual

Specifications
