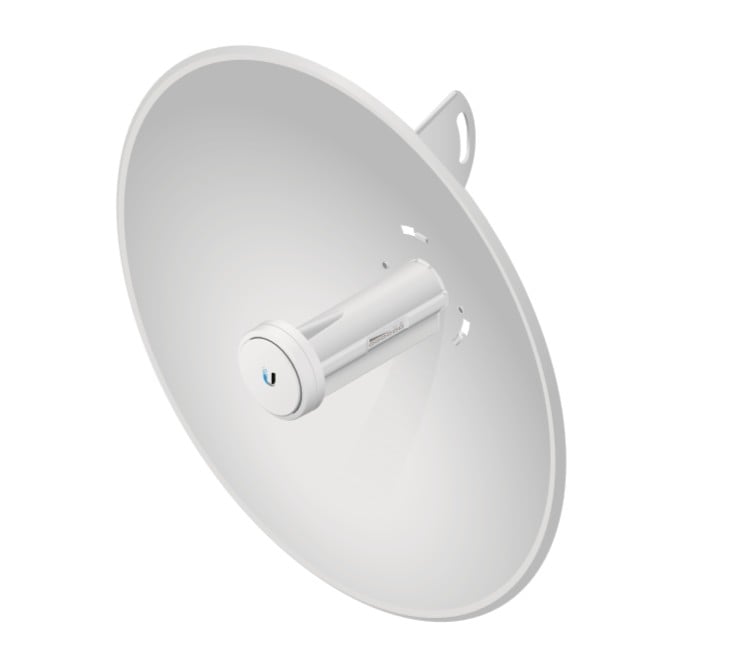

Ubiquiti Networks PBE-5AC-400 bridge/repeater 1000 Mbit/s White

Ubiquiti
PBE-5AC-400 – innovative design and revolutionary efficiency
The Ubiquiti PBE-5AC-400 radio system is a highly efficient solution that
works in the 5 GHz band.

The PBE-5AC-400 is a result of years of engineering and the use of the
advanced AirMax technology. It works perfectly when maximum efficiency and RF
isolation is required.

Work

The PBE-5AC-400 uses an Atheros MIPS 74KC 560 MHz processor. The device
uses 64 MB internal memory and 16 MB flash drive memory. The device works in
the 5150 – 5875 MHz band.

Antenna

The PBE-5AC-400 is equipped with a 25 dBi maximum gain antenna and the use
of InnerFeed technology.

Installation

The installation of the Ubiquiti PBE-5AC-400 device is simple, effortless
and intuitive.

AirMax

The NanoBeam AC series devices are based on AirMax technology which results
in increased bandwidth.

Construction

The device successfully filters interference. Its durable components allow
it to be used at temperatures ranging from -40 to 70 degrees Celsius.

Use

Key features
works in the 5 GHz band
450 Mbps bandwidth
25 km range
22 dBi antenna power gain
InnerFeed technology
AirMax technology
durable construction

Comparison


PBE-5AC-300

PBE-5AC-400

PBE-5AC-500

 PBE-5AC-620

FREQUENCY 5 GHz 5 GHz 5 GHz 5 GHz
THROUGHPUT 450+ Mbps 450+ Mbps 450+ Mbps 450+ Mbps
RANGE 20+ km 25+ km 25+ km 30+ km
GAIN 22 dBi 25 dBi 27 dBi 29 dBi
DISH REFLECTOR 300 mm 400 mm 500 mm 620 mmN
NETWORKING INTERFACE (1) 10/100/1000 Ethernet Port (1) 10/100/1000 Ethernet
Port (1) 10/100/1000 Ethernet Port (1) 10/100/1000 Ethernet Port
