Ubiquiti Networks POE-24-24W PoE adapter Fast Ethernet 24 V
Reliable

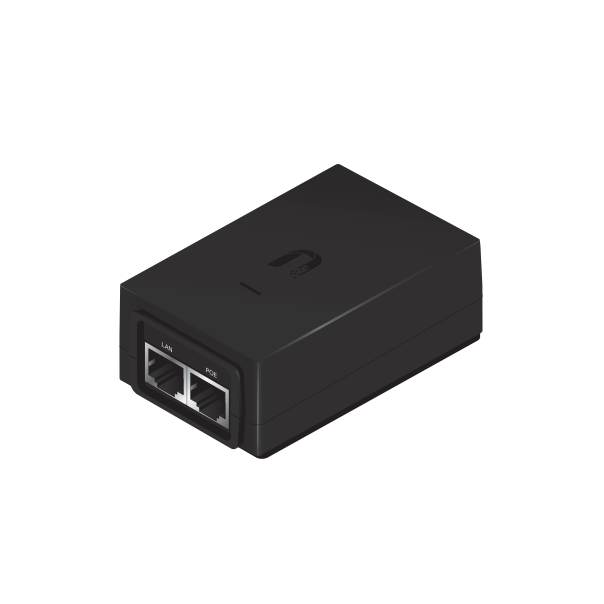

Ubiquiti POE-24-24W adapter
The Ubiquiti POE-24-24W adapter is perfect for CPE customer stations and
base stations.
Combined with TOUGHCable solutions the adapter provides reliable
protections from surges and electrostatic discharges.
Parameters
The device’s input voltage is 47-63 Hz with Ethernet LAN transfer speed at
10, 100, 1000 Mbit/s levels. It is intended for 24 V devices. Its input
voltage is 90-260 V.
Construction
The PoE Adapter is equipped with 2 Ethernet LAN (RJ-45) ports. It can be
used at temperatures ranging from 0 to 40 degrees Celsius.
Comparison
POE-15-12W POE-24-12W POE-24-12W-G POE-24-24W POE-24-24W-G
OUTPUT VOLTAGE 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 1.0A 24VDC @
1.0A
GIGABIT LAN Port NO NO YES NO YES
DIMENSIONS 85 x 44 x 29 mm 87 x 44 x 29 mm 87 x 44 x 29 mm 88 x 57 x 33
mm 88 x 57 x 33 mm
Manufacturer’s content
Read more in the manufacturer’s documentation
Specifications
Related products
-
Read moreUbiquiti
POE-50-60W – functionality and reliability
The Ubiquiti POE-50-60W adapter is a high quality device that complements
the Ubiquiti solutions.The POE-50-60W supports the passive Ethernet power solution. It is a
reliable device. In combination with the Ubiquiti TOUGHCable grounding system
it provides better protection from electrostatic discharges.Parameters
The device’s output voltage is 50 V with 1.2 A input power and 60 W power
consumption. The device is IEC 60950-1:2005+A1, UL60950-1, EN55022:2010 and
EN55024:2010 compliant.Construction
POE-50-60W is equipped with two Ethernet Gigabit RJ-45 ports. The
device is based on durable components which results in quality and
reliability as well as resistance to unfavourable weather
conditions.Key features
Gigabit interface
2 Ethernet LAN (RJ-45) ports
PoE 50 V
1.2 A input power
60 W power consumptionComparison

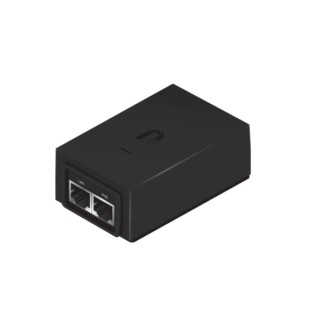

POE-48-24W POE-48-24W-G POE-50-60W
OUTPUT VOLTAGE 48VDC @ 0.5A 48VDC @ 0.5A 50VDC @ 1.2A
GIGABIT LAN Port NO YES YES
DIMENSIONS 88 x 57 x 33 mm 96 x 62 x 35 mm 101 x 60 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read morePOE-24-30W
adapter – a reliable Ubiquiti solution
The device perfectly complements high quality Ubiquiti products. It is
distinguished by reliability.The Ubiquiti POE-24-30W adapter is characterised by 30 W power and output
voltage of 24 V. The input voltage is 100-240 V. The adapter is equipped with
2 Ethernet LAN ports.Unrivalled quality
The adapter is built from durable components which increases its quality to
meet the requirements of the most demanding users.Key features
Gigabit Ethernet interface
maximum Ethernet LAN 1000 Mbit/s data transfer speed
2 Ethernet LAN (RJ-45) ports
24 V PoE
30 W output powerManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read moreUbiquiti
POE-24-24W-G – reliable work
The Ubiquiti POE-24-24W-G adapter is distinguished by its high quality and
reliability.POE-24-24W-G’s output power is 24 V with input voltage at a level of 1.0 A.
The adapter is equipped with two Ethernet LAN RJ-45 Gigabit ports.Reliability
This model boasts reliable operation and supports passive PoE. It is
compatible with Ubiquiti TOUGHCable grounding systems, which increases its
resistance in unfavourable outdoor conditions by protecting it from
electrostatic discharges. The device is compliant with industrial standards:
IEC 60950-1:2005+A1, UL60950-1, EN55022:2010 and EN55024:2010.Key features
2 Ethernet LAN ports (RJ-45)
maximum data transfer speed through Ethernet LAN 1000 Mbit/s
PoE 24 V
1 A input powerComparison
POE-15-12W POE-24-12W POE-24-12W-G POE-24-24W POE-24-24W-G
OUTPUT VOLTAGE 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 1.0A 24VDC @
1.0A
GIGABIT LAN Port NO NO YES NO YES
DIMENSIONS 85 x 44 x 29 mm 87 x 44 x 29 mm 87 x 44 x 29 mm 88 x 57 x 33
mm 88 x 57 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read moreThe
Ubiquiti U-PoE+ PoE+ Adapter (30W) is a high-performance power over Ethernet
solution designed to deliver reliable power and data connectivity. With a
robust output voltage of 48V DC @ 0.65A, this adapter is ideal for powering
devices such as IP cameras, wireless access points, and VoIP phones. Its
Gigabit LAN port ensures high-speed data transmission, making it a perfect
choice for modern network environments.Engineered for efficiency, the U-PoE+ adapter boasts an impressive 87%
efficiency rating, minimizing energy waste while providing stable power. The
device features advanced surge protection capabilities, including 1500A max
surge discharge for power and 36A peak pulse current for data, safeguarding
your equipment against voltage spikes. Additionally, it operates effectively
in a wide temperature range of 0 to 40°C (32 to 104°F), making it suitable
for various deployment scenarios.Manufactured by Ubiquiti, a leader in networking technology, the U-PoE+
adapter is built to meet rigorous standards with certifications including CE,
FCC, IC, and UL. Its compact design, measuring 93 x 62 x 35 mm, allows for
easy installation in tight spaces, while its durable construction ensures
long-lasting performance. This adapter is a reliable choice for anyone
looking to enhance their network infrastructure with a dependable PoE
solution.
