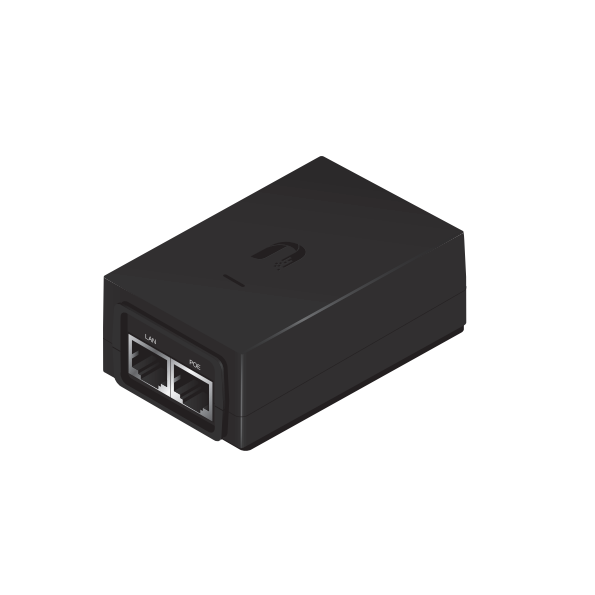

Ubiquiti Networks POE-48-24W-G PoE adapter 48 V
Ubiquiti
POE-48-24W-G – comfortable power
The Ubiquiti POE-48-24W-G is a uniquely reliable adapter that supports
passive type powering through the Ethernet network.
The device is compatible with Ubiquiti TOUGHCable grounding systems which
provide increased protection from electrostatic discharges. The device’s
output voltage is 48 V with input power of 0.5 A.
Construction
POE-48-24W-G is equipped with two Ethernet LAN Gigabit RJ-45 ports.
The adapter is IEC 60950-1:2005+A1, UL60950â€1, EN55022:2010, EN55024:2010
and FCC Class B compliant.
Key features
2 Ethernet LAN (RJ-45) ports
PoE 48 V
90-260 input voltage
47-63 Hz input data
Comparison
POE-48-24W POE-48-24W-G POE-50-60W
OUTPUT VOLTAGE 48VDC @ 0.5A 48VDC @ 0.5A 50VDC @ 1.2A
GIGABIT LAN Port NO YES YES
DIMENSIONS 88 x 57 x 33 mm 96 x 62 x 35 mm 101 x 60 x 33 mm
Manufacturer’s content
Read more in the manufacturer’s documentation
Specifications
Ubiquiti
48 V DC PoE Adapters providing a variety of features to help protect your PoE
devices.
Surge and clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
Related products
-
Read moreUbiquiti
POE-24-24W-G – reliable work
The Ubiquiti POE-24-24W-G adapter is distinguished by its high quality and
reliability.POE-24-24W-G’s output power is 24 V with input voltage at a level of 1.0 A.
The adapter is equipped with two Ethernet LAN RJ-45 Gigabit ports.Reliability
This model boasts reliable operation and supports passive PoE. It is
compatible with Ubiquiti TOUGHCable grounding systems, which increases its
resistance in unfavourable outdoor conditions by protecting it from
electrostatic discharges. The device is compliant with industrial standards:
IEC 60950-1:2005+A1, UL60950-1, EN55022:2010 and EN55024:2010.Key features
2 Ethernet LAN ports (RJ-45)
maximum data transfer speed through Ethernet LAN 1000 Mbit/s
PoE 24 V
1 A input powerComparison
POE-15-12W POE-24-12W POE-24-12W-G POE-24-24W POE-24-24W-G
OUTPUT VOLTAGE 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 1.0A 24VDC @
1.0A
GIGABIT LAN Port NO NO YES NO YES
DIMENSIONS 85 x 44 x 29 mm 87 x 44 x 29 mm 87 x 44 x 29 mm 88 x 57 x 33
mm 88 x 57 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read moreThe
Ubiquiti U-PoE+ PoE+ Adapter (30W) is a high-performance power over Ethernet
solution designed to deliver reliable power and data connectivity. With a
robust output voltage of 48V DC @ 0.65A, this adapter is ideal for powering
devices such as IP cameras, wireless access points, and VoIP phones. Its
Gigabit LAN port ensures high-speed data transmission, making it a perfect
choice for modern network environments.Engineered for efficiency, the U-PoE+ adapter boasts an impressive 87%
efficiency rating, minimizing energy waste while providing stable power. The
device features advanced surge protection capabilities, including 1500A max
surge discharge for power and 36A peak pulse current for data, safeguarding
your equipment against voltage spikes. Additionally, it operates effectively
in a wide temperature range of 0 to 40°C (32 to 104°F), making it suitable
for various deployment scenarios.Manufactured by Ubiquiti, a leader in networking technology, the U-PoE+
adapter is built to meet rigorous standards with certifications including CE,
FCC, IC, and UL. Its compact design, measuring 93 x 62 x 35 mm, allows for
easy installation in tight spaces, while its durable construction ensures
long-lasting performance. This adapter is a reliable choice for anyone
looking to enhance their network infrastructure with a dependable PoE
solution. -
Add to cartUbiquiti
PoE Adapters provide a variety of features to help protect your PoE
devices.Surge and clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
