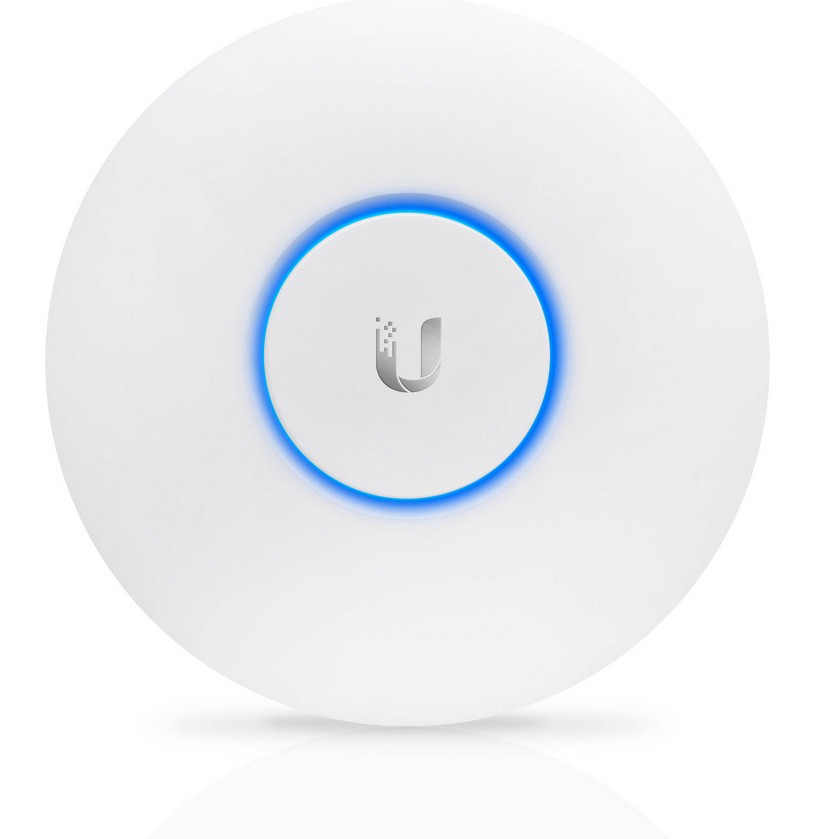

Ubiquiti Networks UAP-AC-LITE wireless access point 1000 Mbit/s White Power over Ethernet (PoE) (UAP-AC-LITE)

UAP-AC-Lite
access point – innovative Ubiquiti solution

The compact UniFi Lite series access point combines an affordable price
with functionality. The device is 25% smaller than the standard UniFi
model.

UAP-AC-Lite combines the latest technologies with aesthetic industrial
design. It is equipped with a MIMO antenna for two frequencies that enable
connection bandwidth of 300 Mbps for 2.4 GHz and 867 Mbps for 5 GHz. The
model has a Gigabit Ethernet port. It works perfectly in high capacity, cost
effective wireless networks.

Latest technologies in a compact form

The UAP-AC-Lite provides advanced features in a compact case. The model is
much smaller when compared to the standard UniFi AP. The installation is
effortless. The device is distinguished by a very favourable price to quality
ratio.

Use

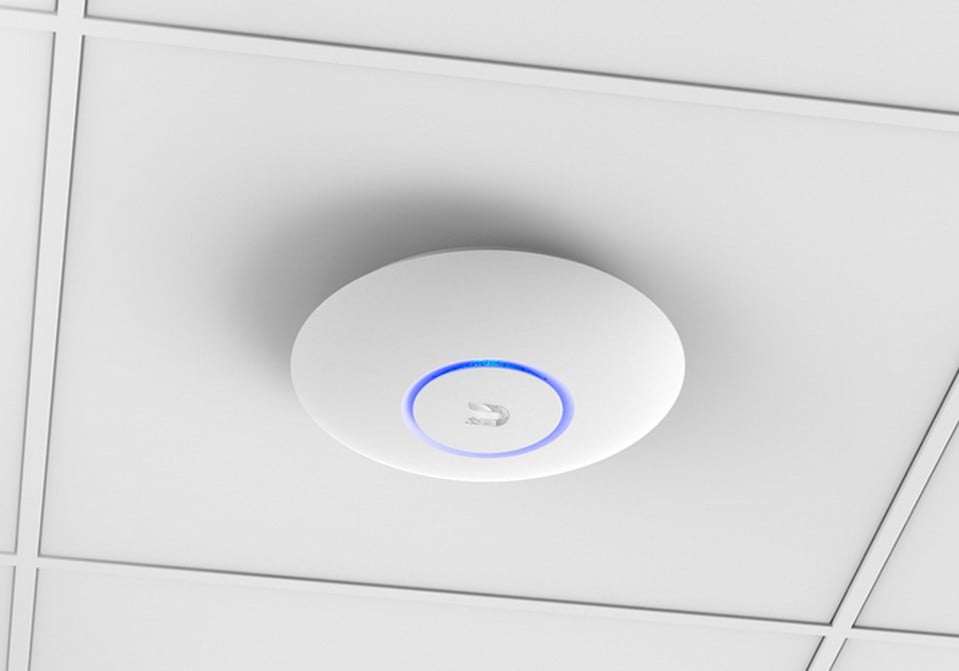

Thanks to its small size the device fits ideally into home and office
environments. The Ubiquiti signature design makes it blend into any
environment.

Popular series complementation

The solution is a flagship UniFi product. The UAP-AC-Lite works in the AC
standard. The device is CE, FCC and IC certified. Its durable components
allow it to work at temperatures of up to 70° C.

Additional Product Notes
Compact size
Use inside of buildings
2×2 MIMO
802.3af/A PoE 24V Passive PoE
122 m range
Comparison
UAP-AC-LITE UAP-AC-LR UAP-AC-EDU UAP-AC-PRO UAP-AC-Outdoor
Environment Indoor Indoor Indoor Indoor/Outdoor Outdoor
Simultaneous Dual-Band
2.4 GHz Speed* 300 Mbps 450 Mbps 450 Mbps 450 Mbps 450 Mbps
2.4 GHz MIMO 2×2 3×3 3×3 3×3 3×3
5 GHz Speed* 867 Mbps 867 Mbps 1300 Mbps 1300 Mbps 1300 Mbps
5 GHz MIMO 2×2 2×2 3×3 3×3 3×3
Range* 122 m (400 ft) 183 m (600 ft) 122 m (400 ft) 122 m (400 ft) 183 m
(600 ft)
Secondary Ethernet Port
Loudspeaker
PoE Mode 802.3af/A PoE 24V Passive PoE 802.3af/A PoE 24V Passive
PoE 802.3at PoE+ 802.3af PoE, 802.3at PoE+ 48V Passive POE or UniFi
Switch
Ceiling Mount
Wall Mount
Pole Mount
Wireless Uplink

* Speed and Range values may vary and are based on optimal environments.
